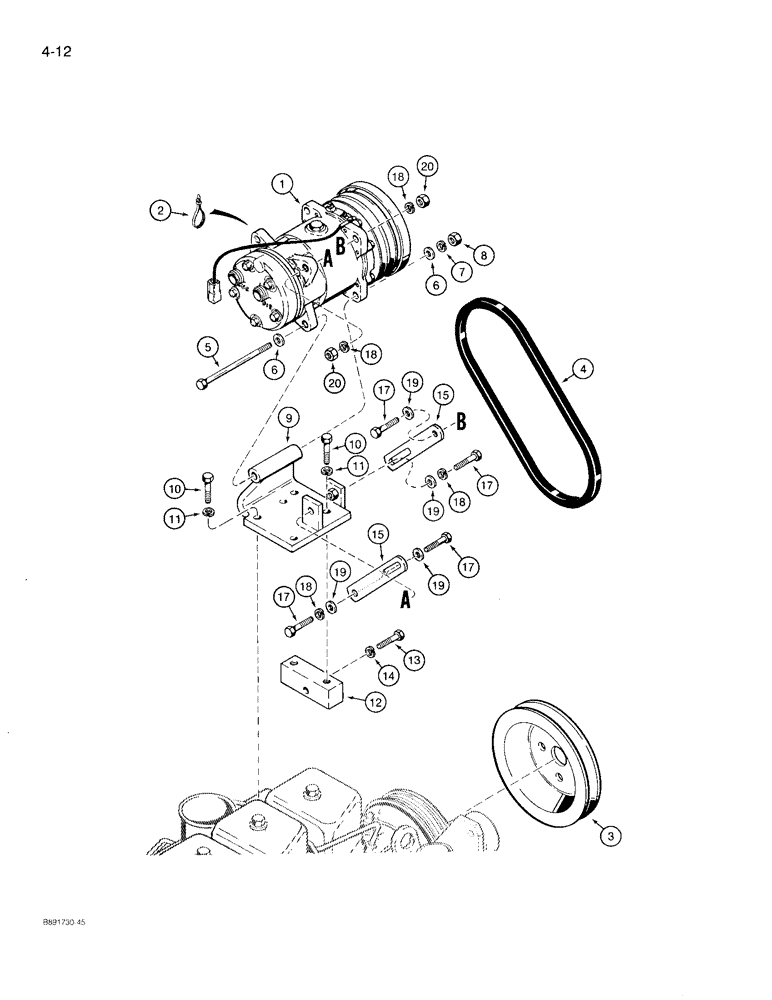

Запчасти Case 780D (4-12) - AIR CONDITIONER COMPRESSOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

97204C1

COMPRESSOR

ASSEMBLY - air conditioning, parts list Figure 4-8

1шт.

1

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

1

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

3

A189284

PULLEY,151mm OD

- air conditioner compressor drive

1шт.

4

D145679

V-BELT,995.00 mm L

Drive, Compressor 995.00 mm L

1шт.

5

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 mm - 1.5 x 130 mm

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

7

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

1шт.

8

825-1110

NUT,M10, Cl 8

- hex, 10 mm - 1.5

1шт.

9

A189274

SUPPORT

BRACKET - compressor mounting

1шт.

10

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

11

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

4шт.

12

A184614

SUPPORT

BLOCK - bracket support

1шт.

13

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

14

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

1шт.

15

84716C1

SUPPORT

STRAP - compressor adjusting

2шт.

17

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm

4шт.

18

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

4шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

20

825-1110

NUT,M10, Cl 8

- hex, 10 mm - 1.5

2шт.
