Запчасти Case 780D (4-02) - ENGINE STARTER (04) - ELECTRICAL SYSTEMS

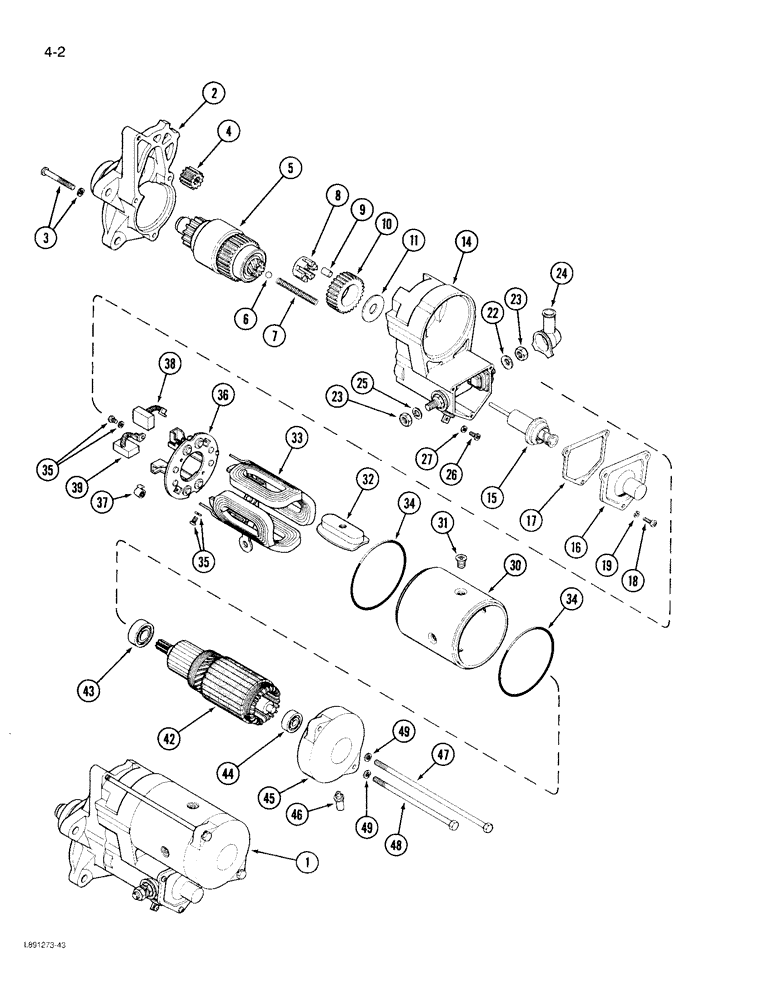

Схема запчастей Case 780D - (4-02) - ENGINE STARTER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

A186247

STARTING MOTOR

STARTER ASSEMBLY - engine, 12 volt (Used in production) (For service order A187615), Includes: Ref. 2 - 49

1шт.

1

A187615

STARTING MOTOR

STARTER ASSEMBLY - engine, 12 volt (Nippondenso No.128000-5620), Includes: Ref. 2 - 49

1шт.

1

116928A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 3.0KW

1шт.

1

116928A2C

CORE-STARTER

Return Number, Starter 12 volt, 3.0KW

1шт.

2

A187708

HOUSING

HOUSING - starter

1шт.

3

A47129

CAPTIVE WASHER SCREW

BOLT AND WASHER ASSEMBLY - housing retaining

3шт.

A47229

O-RING,2.4mm Thk x 47.2mm ID

O-RING -, Serial Range: housing-clutch

1шт.

4

A49809

PINION

GEAR - pinion

1шт.

5

A187709

CLUTCH

CLUTCH ASSEMBLY - starter

1шт.

6

211-10

BALL

BALL - steel, 3/8 inch O.D.

1шт.

7

A47232

SPRING

SPRING - compression

1шт.

8

A47236

RETAINER

RETAINER - roller bearing

1шт.

9

NSS

NOT SOLD SEPARAT

ROLLER - pinion bearing

5шт.

10

A49810

GEAR

GEAR - pinion idler

1шт.

11

A47234

WASHER

WASHER - thrust

1шт.

14

A187707

SWITCH

SWITCH ASSEMBLY - magnetic, Includes: Ref. 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

SOLENOID - starter

1шт.

16

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET - solenoid cover

1шт.

18

NSS

NOT SOLD SEPARAT

BOLT - cover retaining

3шт.

19

NSS

NOT SOLD SEPARAT

WASHER - retaining

3шт.

22

A10454

WAVE WASHER

WASHER - terminal

1шт.

23

825-1110

NUT,M10, Cl 8

NUT - hex, 10 mm - 1.5, terminal

2шт.

24

A49805

COVER

COVER - terminal

1шт.

25

892-1010

LOCK WASHER,M10

WASHER - terminal

1шт.

26

A46950

SCREW,M5 x 0.8 x 0.8mm

SCREW - terminal

1шт.

27

892-1005

LOCK WASHER

WASHER - terminal screw

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - starter field, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

32

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

33

NSS

NOT SOLD SEPARAT

COIL - field

1шт.

34

A49812

SEAL

SEAL - housing

2шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW AND WASHER ASSEMBLY - brush retaining

4шт.

36

A49806

BRUSH HOLDER

HOLDER ASSEMBLY - brush, Includes: Ref. 37

1шт.

37

A47249

SPRING

SPRING - brush tension

4шт.

38

A49807

COMMUTATOR BRUSH

BRUSH ASSEMBLY - starter

2шт.

39

A49808

COMMUTATOR BRUSH

BRUSH ASSEMBLY - starter

2шт.

42

NSS

NOT SOLD SEPARAT

ARMATURE ASSEMBLY - starter

1шт.

43

A49800

BALL BEARING,15 mm ID x 35 mm OD x 11 mm

BEARING - armature, 15 x 35 x 11 mm

1шт.

44

A47248

BALL BEARING

BEARING - armature, 10 x 30 x 9 mm

1шт.

45

A49811

COVER ASSY

FRAME - commutator end

1шт.

46

A49803

BREATHER

COVER - frame end

1шт.

47

A49813

BOLT

BOLT - through, hex, 7 x 208 mm

1шт.

48

A49814

BOLT

BOLT - through, hex, 7 x 146 mm

1шт.

49

A49815

LOCK WASHER

WASHER - through bolt

2шт.

Выбрано товаров: 45
