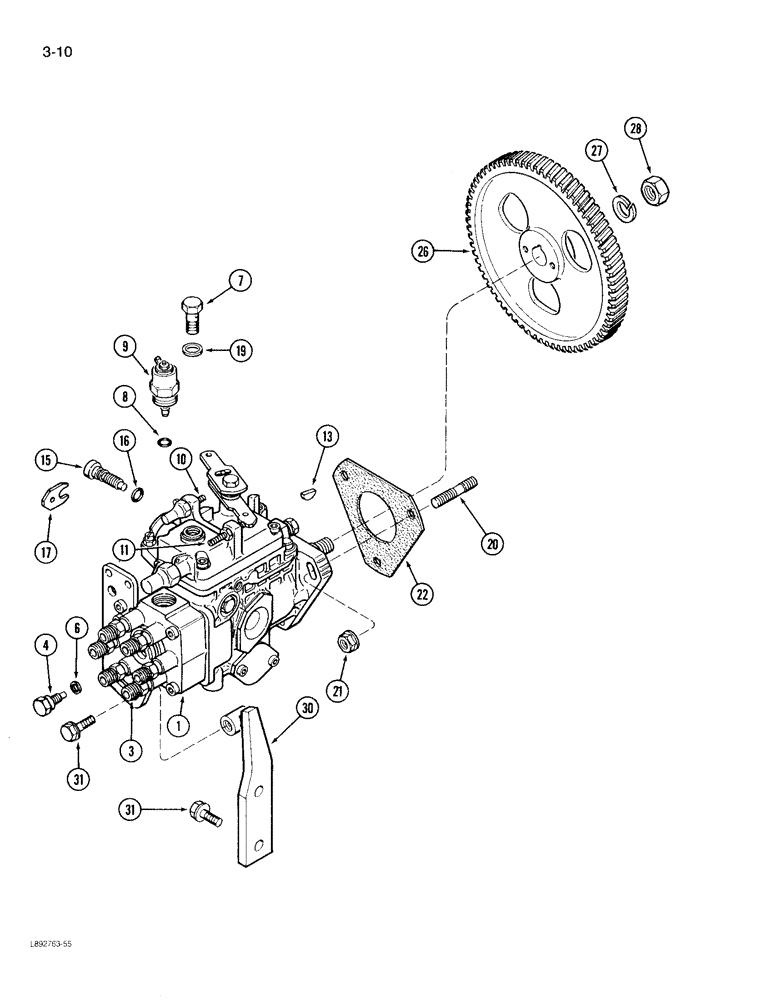

Запчасти Case 780D (3-10) - FUEL INJECTION PUMP AND DRIVE, 6T-590 ENGINE (03) - FUEL SYSTEM

1

J916968

PUMP

PUMP ASSEMBLY - fuel injection, (Replaces J912558), Includes: Ref. 3 - 19

1шт.

JR916968

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured (North America only)

1шт.

JC916968

CORE-INJECTION PUMP

RETURN NUMBER - injection pump (Use this number to return pump core for credit)

1шт.

1

J916969

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, Includes: Ref. 3 - 19

1шт.

1

JR916969

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP - NA Only

1шт.

1

JC916969

CORE-INJECTION PUMP

Return number - For N.A. only

1шт.

3

J910794

FITTING

FITTING - delivery valve

6шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

6

J903573

GASKET

GASKET - vent screw

1шт.

7

J905465

BANJO BOLT

SCREW - overflow

1шт.

8

J903577

SEAL

SEAL - solenoid

1шт.

9

J903575

SOLENOID

SOLENOID ASSEMBLY - 12 volt

1шт.

10

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - low idle stop

1шт.

11

J904783

NUT

NUT - idle screw

1шт.

13

J902332

KEY

KEY - gear retainer

1шт.

15

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

SCREW - timing lock

1шт.

16

J904785

O-RING,8 mm ID x 2.5 mm

O-RING - timing lock screw

1шт.

17

J904786

PLATE

PLATE - timing lock

1шт.

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

GASKET - delivery valve

6шт.

19

NSS

NOT SOLD SEPARAT

WASHER - over flow screw

1шт.

20

J902501

STUD

STUD - pump mounting, 8 x 48 mm

3шт.

21

J900589

NUT

NUT - hex flange, 8 mm

3шт.

22

J914389

GASKET

GASKET - pump mounting

1шт.

26

J912885

PINION

GEAR - pump drive

1шт.

27

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

28

A77444

JAM NUT

NUT - hex jam, 9/16 inch NF

1шт.

30

J905313

LEVER

BRACE - fuel pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 20 mm (Replaces J900630)

4шт.
