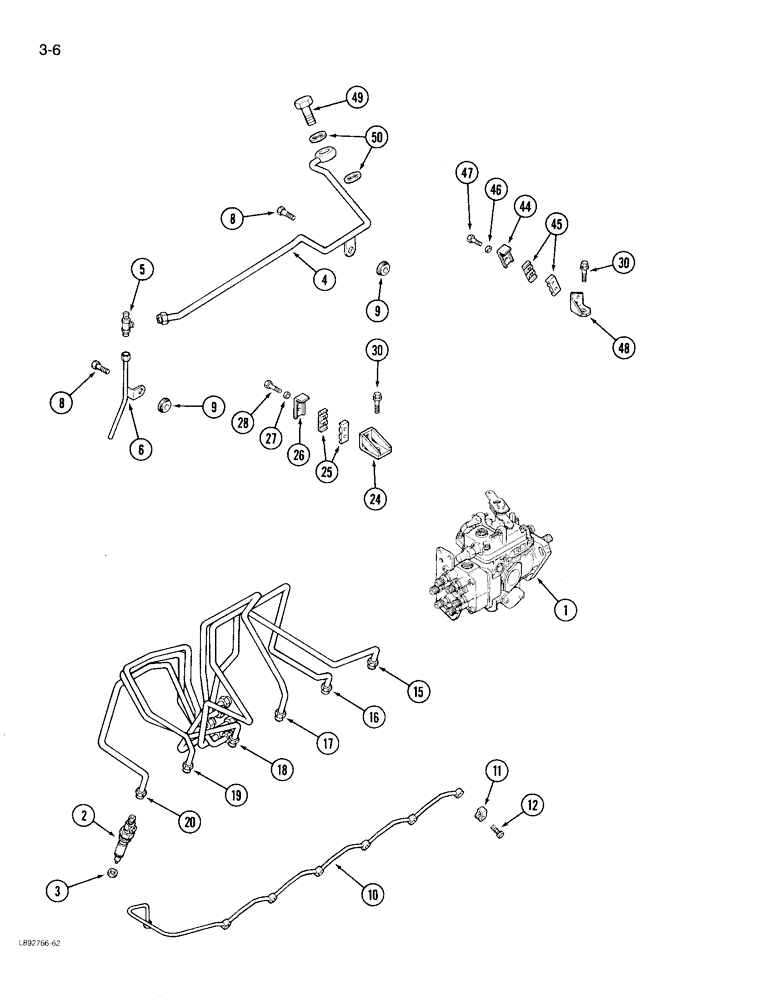

Запчасти Case 780D (3-06) - FUEL INJECTION SYSTEM, 6T-590 ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-10)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Figure 3-12 and 3-14)

6шт.

3

REF

INSTRUCTION

SEAL - injector (See Figure 3-12 and 3-14)

6шт.

4

J905705

FUEL TUBE,4.76 mm OD

TUBE ASSEMBLY - fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Union, 7/16"-24 thd (Remove and discard hex nuts and sleeves at assembly)

1шт.

6

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm (Replaces J900629)

2шт.

9

J900267

SEAL

ASSEMBLY - cover bolt

2шт.

10

J909696

TUBE

TUBE ASSEMBLY - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

15

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

TUBE ASSEMBLY - fuel injector, No.1 cylinder

1шт.

16

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

TUBE ASSEMBLY - fuel injector, No.2 cylinder

1шт.

17

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

TUBE ASSEMBLY - fuel injector, No.3 cylinder

1шт.

18

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

TUBE ASSEMBLY - fuel injector, No.4 cylinder

1шт.

19

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

TUBE ASSEMBLY - fuel injector, No.5 cylinder

1шт.

20

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

TUBE ASSEMBLY - fuel injector, No.6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

25

J917747

CLAMP

ISOLATOR - fuel tube

2шт.

26

NSS

NOT SOLD SEPARAT

PLATE - clamp

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - flat, 5 mm

2шт.

28

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

30

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, (Replaces J904341) Hex Flg Hd, M8 x 1.25 x 25

2шт.

A77529

BRACKET

ASSEMBLY - fuel tube, Includes: Ref. 44 - 48

1шт.

44

NSS

NOT SOLD SEPARAT

BRACE - fuel

1шт.

45

J917747

CLAMP

ISOLATOR - fuel tube

2шт.

46

NSS

NOT SOLD SEPARAT

WASHER - flat, M5

2шт.

47

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

48

NSS

NOT SOLD SEPARAT

BRACE - fuel tube

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT - banjo connector

1шт.

50

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1.00 mm

2шт.
