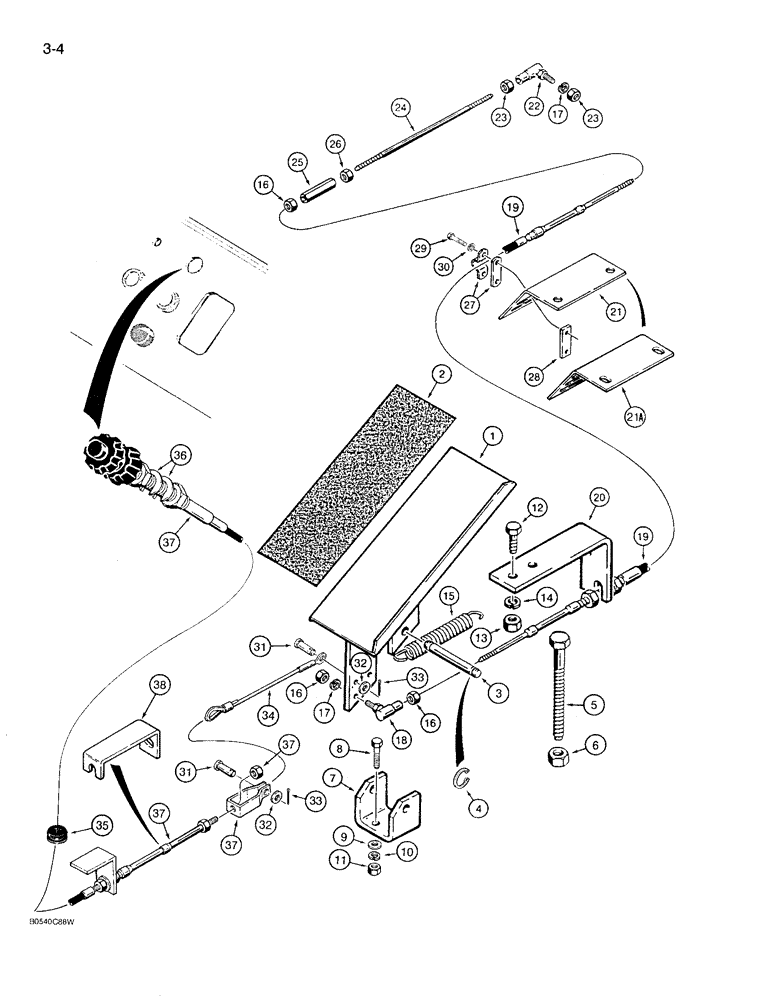

Запчасти Case 780D (3-04) - HAND AND FOOT THROTTLE CONTROL (03) - FUEL SYSTEM

1

L101781

PEDAL

- accelerator, foot

1шт.

2

D55216

PAD,2" x 9"

PAD - accelerator pedal

1шт.

3

D66055

PIN,9.53mm OD x 79.25mm L

- pedal pivot

1шт.

4

D95093

RING

- snap, pin retaining

2шт.

5

113-469

BOLT,Hex, 1/2" - 13 x 5", Gr 5, Full Thd

1шт.

6

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

7

L48002

BRACKET

- accelerator pedal pivot

1шт.

8

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

9

195-102

WASHER,1/4"

- flat, 1/4 inch

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

L101777

SPRING

- extension

1шт.

16

129-37

NUT,#10-32

3шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

18

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball, cable

1шт.

19

L111265

CABLE

- foot throttle control

1шт.

20

L101778

BRACKET

- accelerator cable mounting

1шт.

21

L111552

BRACKET

- throttle cable, no longer used, order D146170 bracket, Ref. 21A

1шт.

21a

D146170

BRACKET

- throttle cable, with three slots

1шт.

22

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball, cable, attaches to fuel injection pump lever

1шт.

23

129-37

NUT,#10-32

2шт.

24

L108065

ROD

- accelerator linkage

1шт.

25

L14227

CONNECTOR, ELEC

TURNBUCKLE - cable

1шт.

26

129-315

NUT,#10-32, LH

1шт.

27

L12441

CLAMP

- two-piece, throttle control cable

1шт.

28

L106009

RETAINER

- clamp

1шт.

29

113-1003

SCREW,Hex, #10 - 24 x 3/4", Gr 5

2шт.

30

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

31

141-52

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 inch

2шт.

32

195-102

WASHER,1/4"

- flat, 1/4 inch

2шт.

33

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

34

D136592

CABLE

- wire, hand throttle

1шт.

35

F37765

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

- cable

1шт.

36

D137378

WASHER

- slotted, special

2шт.

37

D136064

CABLE

- hand throttle, includes hardware

1шт.

38

D143152

BRACKET

- support, hand throttle cable

1шт.
