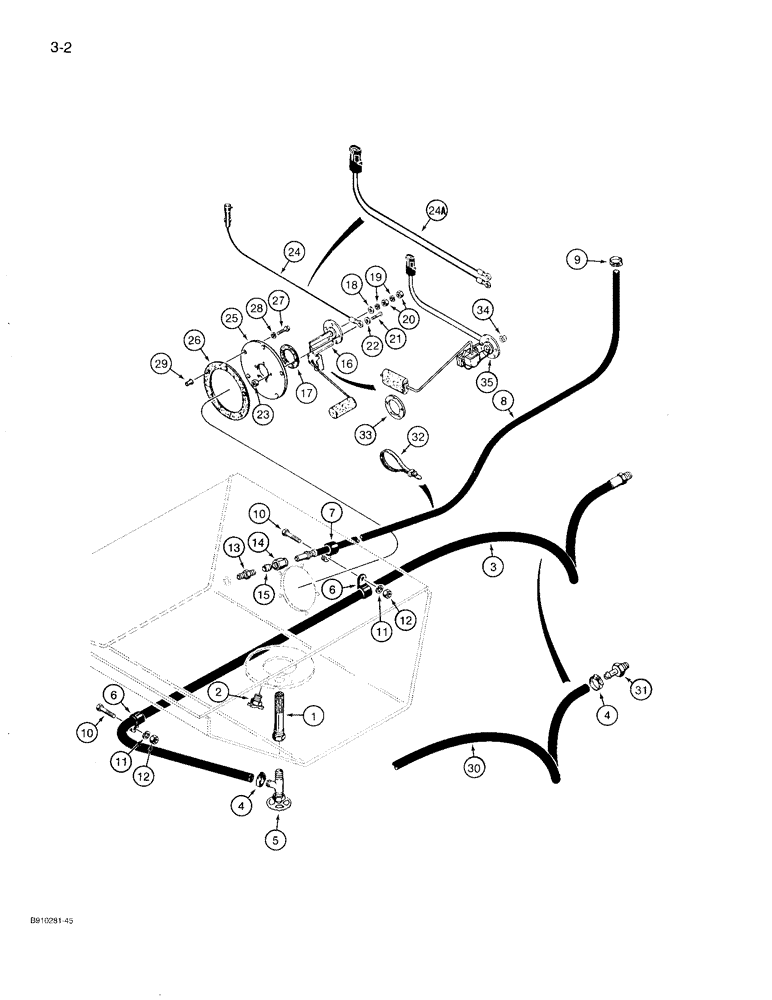

Запчасти Case 780D (3-02) - FUEL TANK AND FUEL LINES (03) - FUEL SYSTEM

1

L58022

STRAINER ASSY.

STRAINER - fuel tank

1шт.

2

217-81

VALVE

- fuel tank drain

1шт.

3

D135528

FUEL HOSE

HOSE - 79-5/16" (2015 mm) long, fuel supply, tank to pump, if used

1шт.

4

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose

1-2шт.

5

A154051

COCK, DRAIN

VALVE - shutoff, fuel tank outlet

1шт.

6

T50103

CLAMP

- P-type

1-2шт.

7

T42284

CLAMP

- hose, if used

1шт.

8

L111334

HOSE

- 55 inch (1397 mm) long, fuel return

1шт.

9

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

includes screw #4, 0.25/0.62 Type F Worm

1шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1-2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1-2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1-2шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ASSEMBLY - compression, straight, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

14

87017024

TUBE NUT,1/2"-24

NUT - compression, fitting

1шт.

15

222-102

SLEEVE,1/4" Tube

1шт.

16

L110016

SENDER UNIT

SENDER ASSEMBLY - fuel gauge, no longer available, order Ref. 33, A11822 gasket, 34, 193-1000 nut, and 35, D148289 sender, Includes: Ref. 17 - 20

1шт.

17

A11822

GASKET

- sender

1шт.

18

95-3

WASHER,#12

- flat, 3/16 inch

1шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

20

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

2шт.

21

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

5шт.

22

L77590

WASHER

- special

5шт.

23

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

5шт.

24

D138645

ELECTRICAL WIRE

WIRE - sender ground, with one eyelet connector, attaches to harness, if used

1шт.

24a

D143691

HARNESS

WIRE - sender ground, with two eyelet connectors, attaches to harness, if used

1шт.

25

L77441

PLATE

- fuel sender

1шт.

26

L79876

GASKET,4.57mm Thk

- plate

1шт.

27

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

29

L13176

NUT

- special

5шт.

30

D143556

FUEL HOSE,1800.00 mm

Fuel Supply, Tank To Pump, If Used 1800.00 mm

1шт.

31

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

stem - straight, Used with D143556 hose, Ref. 30 3/8" Hose X 1/4" NPTF Beaded

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

5шт.

33

A11822

GASKET

- fuel sender

1шт.

34

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

35

D148289

FUEL GAUGE

SENDER - fuel gauge

1шт.
