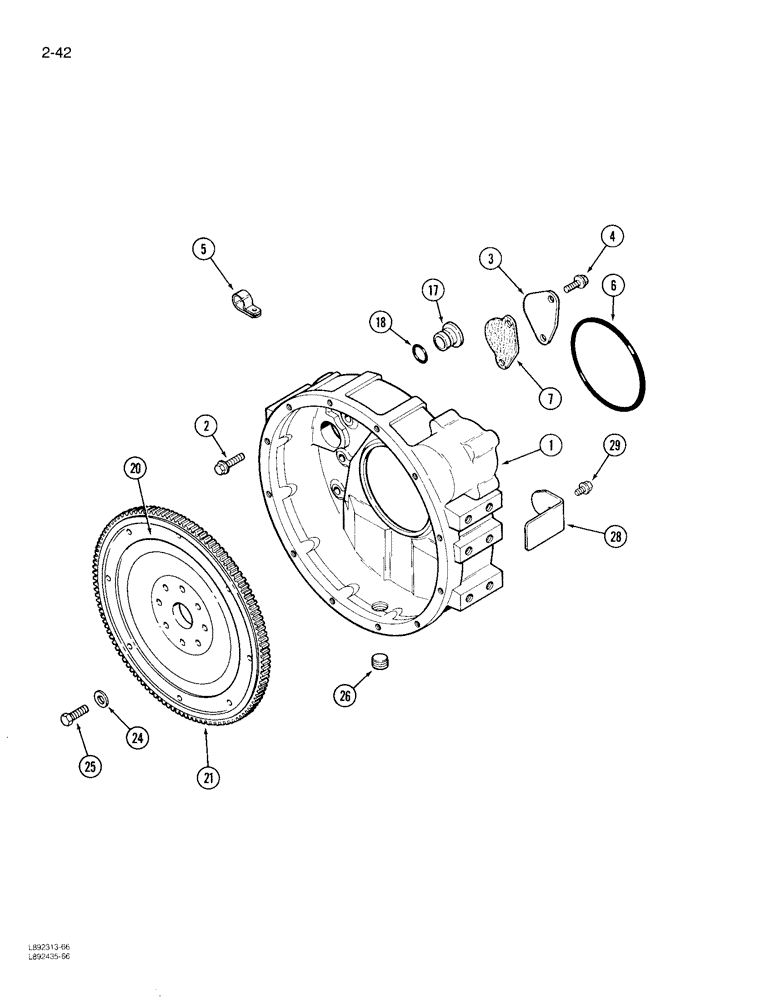

Запчасти Case 780D (2-42) - FLYWHEEL AND HOUSING, 6T-590 ENGINE (02) - ENGINE

1

J903282

HOUSING

- flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- hex flange, 12 mm - 1.75 x 40 mm (Replaces J910540)

8шт.

3

J908095

PLATE

- cover

1шт.

4

J902735

BOLT,M8 - 1.25 x 21 mm

- hex, plate retaining

2шт.

5

A77531

CLIP

- retaining (If Equipped)

1шт.

6

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

7

J914086

BELT TENSIONER

GASKET - cover plate

1шт.

17

J910248

PLUG

- housing

1шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces 253070R1) -212, 70 Duro, .859" ID x .139" Thk

1шт.

20

J905898

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY - crankshaft, Includes: Ref. 21

1шт.

21

J905427

GEAR

- ring, flywheel

1шт.

24

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

25

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, 12 mm - 1.25 x 32 mm

8шт.

26

353-225

PLUG,Sltd Hd, 3/4"-16

- housing drain

1шт.

28

J912755

PLATE

- cover (If Equipped)

1шт.

29

J912072

SELF-TAP SCREW

SCREW - self tapping, 8 mm - 1.25 x 15 mm (If Equipped)

1шт.
