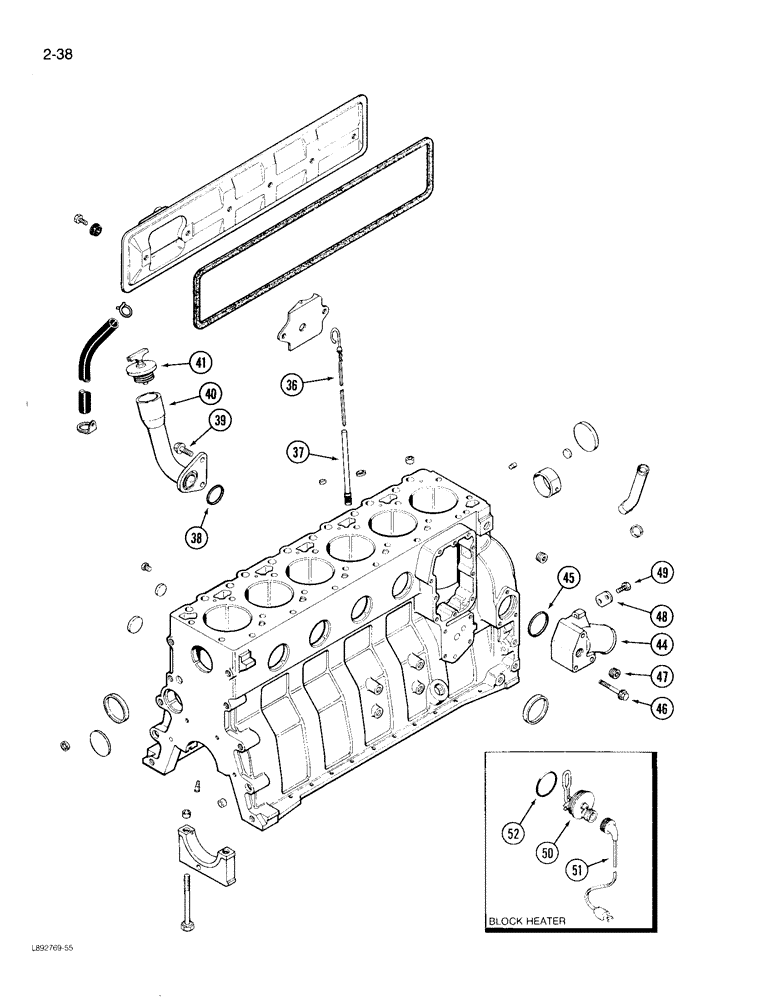

Запчасти Case 780D (2-38) - CYLINDER BLOCK, 6T-590 ENGINE (CONT.) (02) - ENGINE

36

J905786

DIPSTICK

- engine oil

1шт.

37

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick

1шт.

38

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

RING

1шт.

39

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- hex, 12 mm - 1.75 x 25 mm (Replaces J901249)

2шт.

40

J905440

TUBE

- fill, oil

1шт.

41

A77424

FILLER CAP

CAP ASSEMBLY - fill, oil

1шт.

44

J903103

MANIFOLD

CONNECTION - water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - , 50 mm ID

1шт.

46

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- hex flange, 10 mm - 1.50 x 75 mm (Replaces J901757)

3шт.

47

A77429

PLUG

- hex socket pipe, 1/2-14 PT

1шт.

48

J903089

SUPPORT

BRACE - alternator mounting

1шт.

49

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 20 mm

1шт.

A77634

KIT

HEATER - engine block, Includes: Ref. 50 - 52

1шт.

50

J916127

RESISTOR

HEATER - engine block (Order A77634)

1шт.

51

J905113

CABLE

- engine block heater

1шт.

52

J910517

O-RING

- heater sealing, block

1шт.
