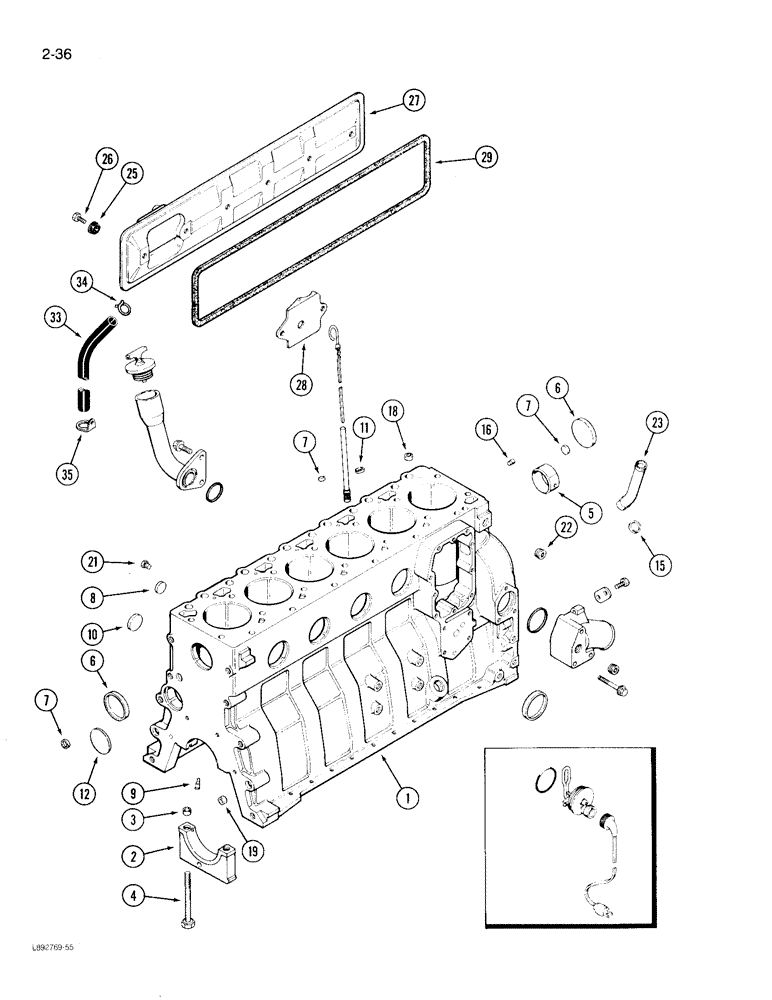

Запчасти Case 780D (2-36) - CYLINDER BLOCK, 6T-590 ENGINE (02) - ENGINE

1989088C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe) (Replaces A174260)

1шт.

1989096C2

BASIC ENGINE

ENGINE ASSEMBLY - basic (Includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold & pipe, flywheel & housing, oil fill tube, dipstick, fuel injection pump, injectors and lines, front crank pulley

1шт.

1989096C2R

ENGINE, EXCHANGE

ENGINE (EXCHANGE) Remanufactured, For N.A. Only

1шт.

AR77762

ENGINE

BLOCK ASSEMBLY - engine short, remanufactured (For North America only), Includes: Ref. 2 - 8

1шт.

Ref AR77762 block assy - Does not include cam, tappets, oil pump.

1шт.

AC77762

CORE-ENGINE

RETURN NUMBER - engine short block (Use this part number to return block core for credit), Includes: Ref. 2 - 8

1шт.

A77762

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New) (Includes stripped block pistons, connecting rods and bearings, crankshaft and bearings) (Order block and J920399 kit) (Replaces J910510), Includes: Ref. 2 - 8

1шт.

J933183

SKELETON ENGINE

Engine Short Block - Tier 0

1шт.

JR933183

REMAN-SHORT ENGINE

Remanufactured, N.A. Only

1шт.

JC933183

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

1

A77760

CRANKCASE

BLOCK ASSEMBLY - stripped engine (Order block and J920399 kit) (Replaces J905810), Includes: Ref. 2 - 8

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front (See Figure 2-34)

1шт.

6

J900965

PLUG

PLUG - expansion, 58 mm O.D.

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm O.D.

3шт.

8

A77539

PLUG

PLUG - expansion, 26 mm

4шт.

PJ920399

SHIN

KIT - block hardware (Replaces J905813), Includes: Ref. 9 - 22

1шт.

9

J919002

NOZZLE CAP

NOZZLE - piston cooling (Replaces J901020)

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm O.D.

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm O.D.

2шт.

12

J900687

PLUG

PLUG - expansion, (Welch) 60 mm O.D.

1шт.

15

A77439

PLUG

PLUG - expansion, 0.886 mm O.D.

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm O.D.

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

PLUG - hex socket pipe, 1/2-14 PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

25

J900267

SEAL

SEAL ASSEMBLY - cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 mm - 1.25 x 16 mm

4шт.

27

J911822

COVER

COVER - tappet

1шт.

28

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

29

J907617

GASKET

GASKET - tappet cover (Replaces J904776)

1шт.

33

J906593

HOSE

Breather

1шт.

34

J904230

CLAMP,25.4mm

CLAMP - spring hose

1шт.

35

J909670

CLIP

CLIP - retaining

1шт.

36

J905479

SPRING NUT

NUT - hose clip (If Equipped)

1шт.
