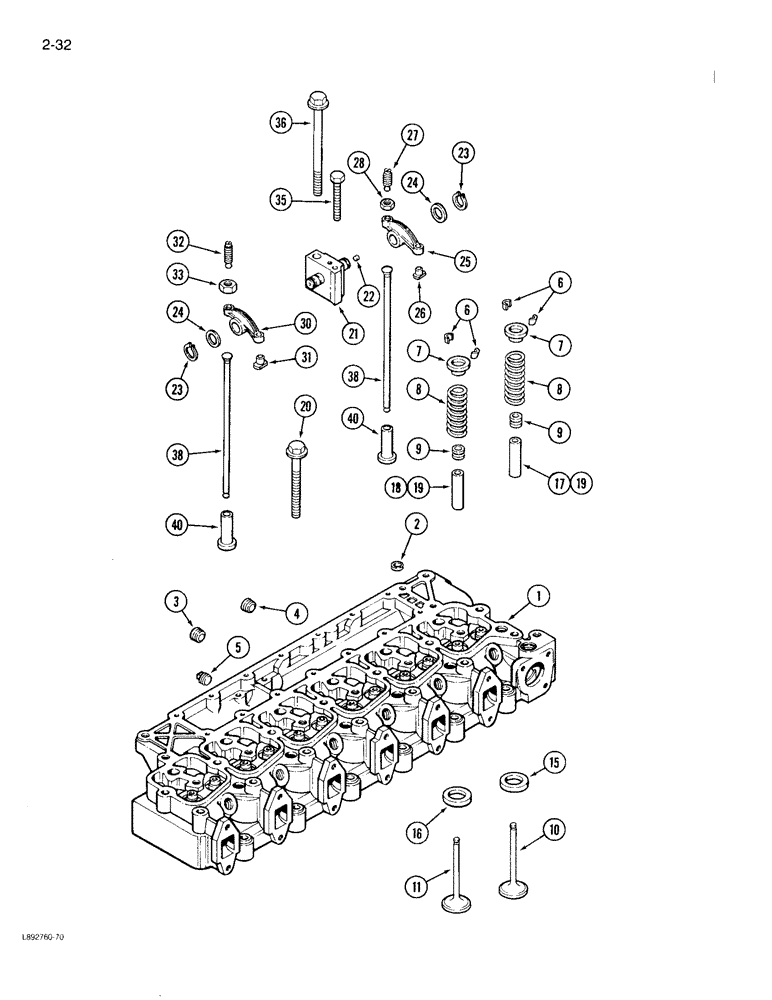

Запчасти Case 780D (2-32) - CYLINDER HEAD AND VALVE MECHANISM, 6T-590 ENGINE (02) - ENGINE

JR910276

HEAD

ASSEMBLY - cylinder (Remanufactured) (9 mm Injector)), Includes: Ref. 1 - 11

1шт.

JC910276

CORE-CYLINDER HEAD

RETURN NUMBER - Use this part number to return cylinder head core for credit, Includes: Ref. 1 - 11

1шт.

JR920612

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Remanufactured) (7 mm Injector) (North America Only), Includes: Ref. 1 - 11

1шт.

JC920612

REMAN-CYLINDER HEAD

RETURN NUMBER - Use this part number to return cylinder head core for credit, Includes: Ref. 1 - 11

1шт.

J910276

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (New) (9 mm injector) Prior to Engine Serial Number 44566928, Includes: Ref. 1 - 11

1шт.

J920612

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, w/valves (7 mm injector) Engine Serial Number 44566928 and after, Includes: Ref. 1 - 11

1шт.

1

J913391

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (9 mm injector) Prior to Engine Serial Number 44566928, Includes: Ref. 2

1шт.

1

J917287

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, w/o valves (7 mm injector) Engine Serial Number 44566928 and after, Includes: Ref. 2

1шт.

2

J902606

PLUG

- expansion, 21 mm O.D.

5шт.

3

A77429

PLUG

- hex socket pipe, 1/2-14 PT

5шт.

4

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

2шт.

5

A77505

PLUG

- hex socket pipe, 1/2-18 inch PT

2шт.

6

CASJ900250

RETAINER

KEEPER - valve

24шт.

7

J900299

RETAINER

- valve spring

12шт.

8

J900276

VALVE SPRING

SPRING - valve

12шт.

9

J901097

SEAL

- valve

12шт.

10

J920867

VALVE

- intake (Replaces J901117)

6шт.

11

J920868

VALVE

- exhaust (Replaces J901607)

6шт.

Ref. 1 P/N D143219 36" hose - This now subs to P/N 100630A1. When using this replacement number, Ref. 9 P/N 218-5066 adapter is not required.

1шт.

Stem wear pad (to place over the valve stem tip end) is available for 390 and 590 engines to extend valve tip service life. (part nbr is J280911)

1шт.

15

J906854

SEAT, VALVE

SEAT - insert, intake valve (Service repair only)

6шт.

16

J904105

SEAT, VALVE

SEAT - insert, exhaust valve (Service repair only)

6шт.

17

J904408

GUIDE

- valve, intake (Service repair only)

6шт.

18

J904409

GUIDE

- valve, exhaust (Service repair only)

6шт.

19

J906206

GUIDE

- valve, intake and exhaust 11 mm O.D. (Service repair only)

12шт.

20

J903938

BOLT

- hex flange, 12 mm - 1.75 x 70 mm

6шт.

20

J903939

BOLT

- hex flange, 12 mm - 1.75 x 120 mm

14шт.

21

J910814

SUPPORT

AND SHAFT ASSEMBLY - rocker arm, Includes: Ref. 22

6шт.

22

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

1шт.

23

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

24

J900245

WASHER

- thrust, rocker arm

12шт.

25

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, Includes: Ref. 26

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- hex steel, 3/8 inch NF

1шт.

30

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 31

6шт.

31

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

33

25-116

NUT,Hex, 3/8"-24, G5

- hex steel, 3/8 inch NF

1шт.

35

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- hex, 8 mm - 1.25 x 75 mm

6шт.

36

J903940

BOLT

- hex flange, 12 mm - 1.75 x 180 mm

6шт.

38

J904679

PUSH ROD

ROD - push, rocker arm

12шт.

40

J907240

TAPPET

- valve, push rod

12шт.
