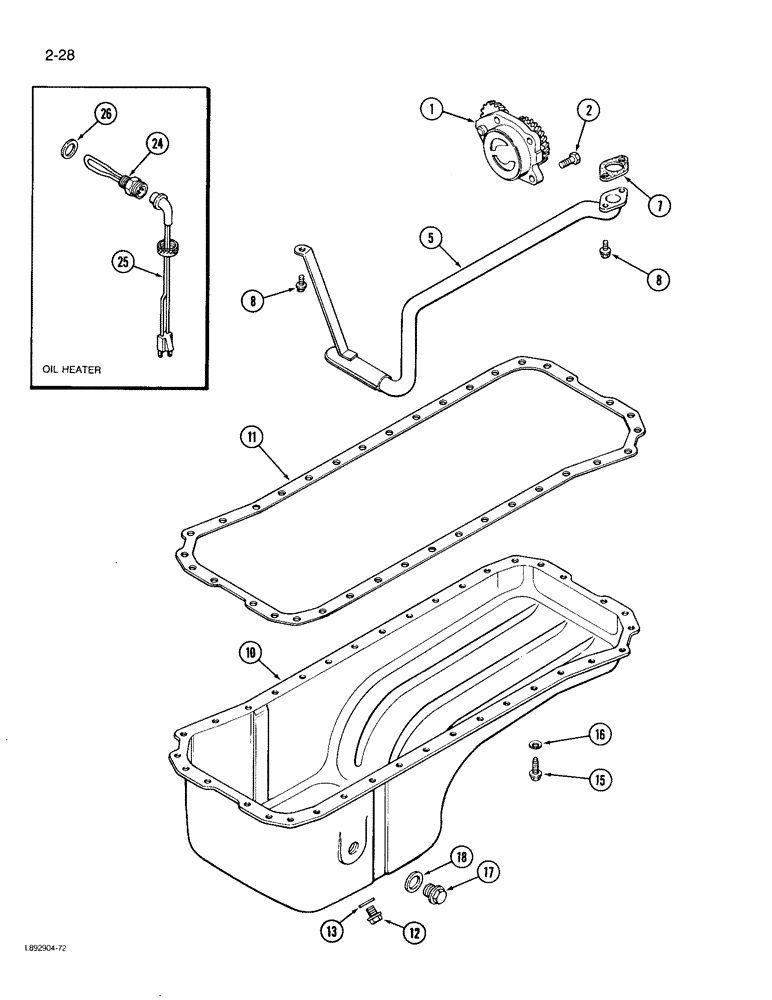

Запчасти Case 780D (2-28) - OIL PUMP AND OIL PAN, 6T-590 ENGINE, PRIOR TO ENGINE SN 44511034 (02) - ENGINE

JR914006

PUMP

PUMP ASSEMBLY - engine oil (Remanufactured) (North America only)

1шт.

JC914006

CORE-HYDRAULIC PUMP

RETURN NUMBER - oil pump assembly (Use this part number to return pump core for credit)

1шт.

JR918212

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - engine oil (Remanufactured) (North America only), engine serial number 44511034 and after

1шт.

JC918212

CORE-HYDRAULIC PUMP

RETURN NUMBER - oil pump assembly (Use this part number to return pump core for credit), engine serial number 44511034 and after

1шт.

1

J914006

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine (Prior To Engine Serial Number 44511034), engine serial number 44511034 and after

1шт.

1

J918212

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine (Engine Serial Number 44511034 and after), engine serial number 44511034 and after

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, , engine S/N 44511034 and after Hex, M8 x 30, 8.8, Full Thd

4шт.

5

J909373

TUBE

TUBE AND SCREEN - oil suction, engine serial number 44511034 and after

1шт.

If 10" tube is required order this number. If longer 16" tube is required, order J909374 (now subs to J921992).

1шт.

7

J914383

GASKET

GASKET - mounting, tube, engine serial number 44511034 and after

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

8

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

BOLT - hex flange, 8 - 1.25 x 60 mm (Replaces J900629), Engine S/N 44511034 and after

3шт.

10

J915703

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine (Replaces J901288), engine serial number 44511034 and after

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A77492), engine serial number 44511034 and after

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

12

J900215

PLUG

PLUG - drain, oil (If Equipped), engine serial number 44511034 and after

1шт.

12

J911638

PLUG,M18 x 1.5

PLUG - drain, oil, magnetic (Alternate with J900215), engine serial number 44511034 and after

1шт.

13

J900216

PACKING RING

WASHER - seal, drain plug, engine serial number 44511034 and after

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange head, 18 x 16 mm, Engine S/N 44511034 and after

36шт.

16

J907537

SPRING WASHER

WASHER - spring, engine serial number 44511034 and after

36шт.

17

J904386

PLUG

PLUG - pipe, engine serial number 44511034 and after

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug, engine serial number 44511034 and after

1шт.

A77676

GASKET KIT

GASKET KIT - oil pan, replaces A77492, Includes: Ref. 7, 11 and 13, engine serial number 44511034 and after

1шт.

A77490

KIT

KIT - heater, engine oil, Includes: Ref. 24 and 25

1шт.

24

J904380

UNIT HEATER

HEATER - engine oil (Order A77490)

1шт.

25

J905113

CABLE

CABLE - engine block heater, oil

1шт.

26

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug (If Equipped), engine oil heater

1шт.
