Запчасти Case 780D (2-26) - OIL FILTER AND COOLER, 6T-590 ENGINE (02) - ENGINE

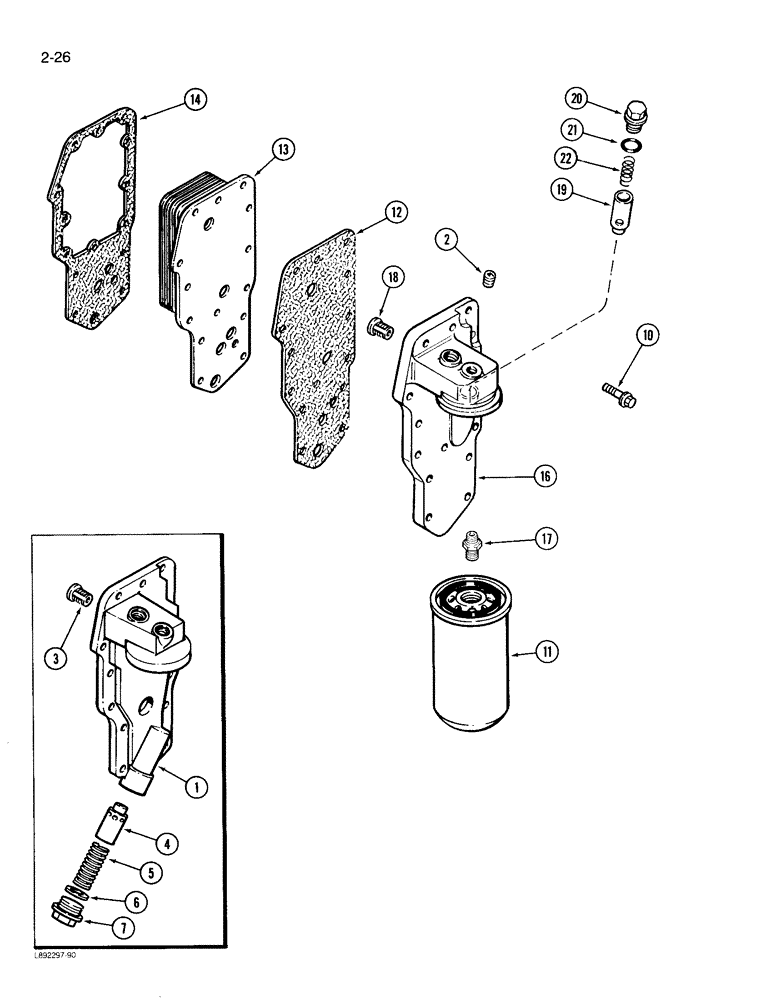

Схема запчастей Case 780D - (2-26) - OIL FILTER AND COOLER, 6T-590 ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

J902295

HEAD ASSY.

HEAD - filter, lube oil

1шт.

Used prior to Engine Serial Number 44257900. For repairs order J915766 kit.

1шт.

2

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

1шт.

3

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

4

J909376

PLUNGER

- regulator, pressure

1шт.

5

J903261

SPRING

- compression

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

7

J904386

PLUG

- pipe

1шт.

10

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex, 8 mm - 1.25 x 35 mm (Replaces J900632)

14шт.

11

J908615

FILTER

- engine oil

1шт.

12

J918257

GASKET

- filter head (Replaces J912532)

1шт.

13

J918293

COOLER

CORE - cooler, oil (Replaces J911940)

1шт.

14

J918256

GASKET

- cooler core, oil (Replaces J914387)

1шт.

J915243

FILTER COVER

HEAD ASSEMBLY - lube oil filter (Order kit J915766) (Prior To Engine Serial Number 44511034), Includes: Ref. 16

1шт.

16

J909352

FILTER COVER

HEAD - filter and cooler (Order kit J915766) (Prior To Engine Serial Number 44511034)

1шт.

J918954

HEAD

ASSEMBLY - lube oil filter (Engine Serial Number 44511034 and after), Includes: Ref. 16

1шт.

16

J918328

HEAD

- filter and cooler (Engine Serial Number 44511034 and after)

1шт.

17

J909355

ADAPTER

- filter head

1шт.

18

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

19

J918428

PLUNGER

- regulator, pressure (Replaces J914084)

1шт.

20

J915787

PLUG

- pipe

1шт.

21

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

22

J918427

SPRING

- compression

1шт.

Выбрано товаров: 23
