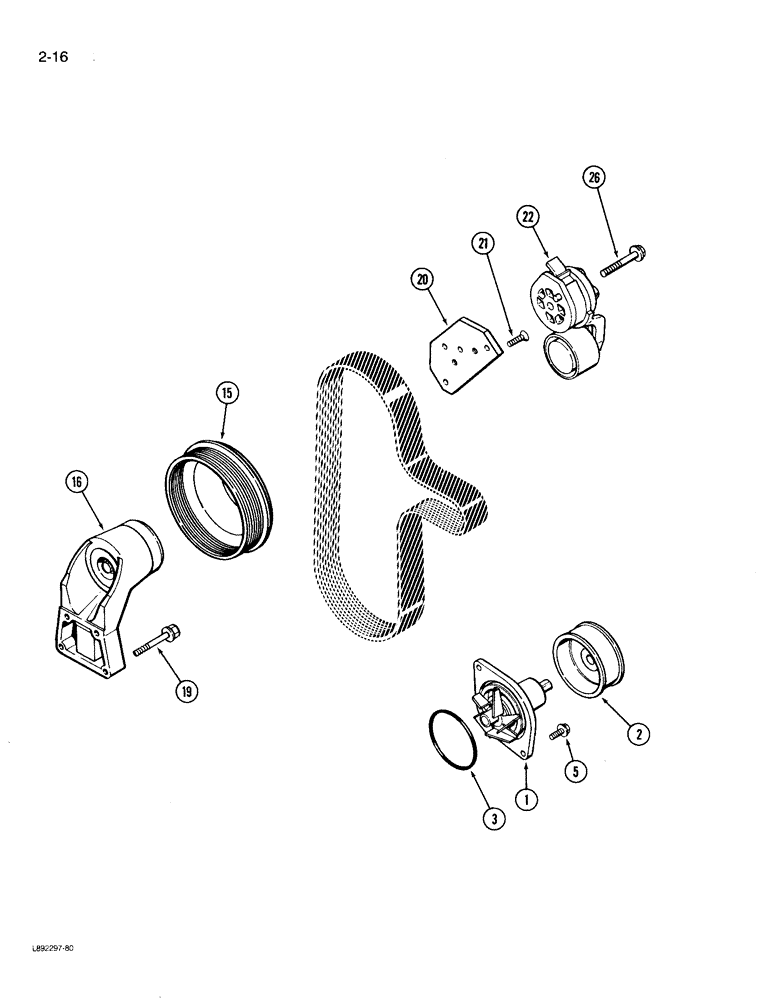

Запчасти Case 780D (2-16) - WATER PUMP SYSTEM, 6T-590 ENGINE (02) - ENGINE

AR77703

PUMP

- water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

780D

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77703

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

A77703

PUMP, WATER

PUMP KIT - water (Replaces A77471), Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

780D, Replaces P/N A77703 & AR77703

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump (Order A77703)

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replaces 22290R1) -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

15

J914462

PULLEY,163mm OD

- fan

1шт.

16

J911922

SUPPORT ASSY.

BRACKET ASSEMBLY - fan pulley

1шт.

19

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 40 mm, 8.8 (Replaces J900678)

4шт.

20

J904548

BRACKET

- belt tension

1шт.

21

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, 8 x 25 mm

2шт.

22

J918944

BELT TENSIONER

TENSIONER ASSEMBLY - belt (Replaces J914086, J912246)

1шт.

26

J905426

BOLT,Hex, M10 x 1.5 x 61.86mm

- hex flange head, 10 x 62 mm (Use with J912246)

1шт.

26

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, Grade 10.9 (Replaces J904446 - Use with J918944)

1шт.
