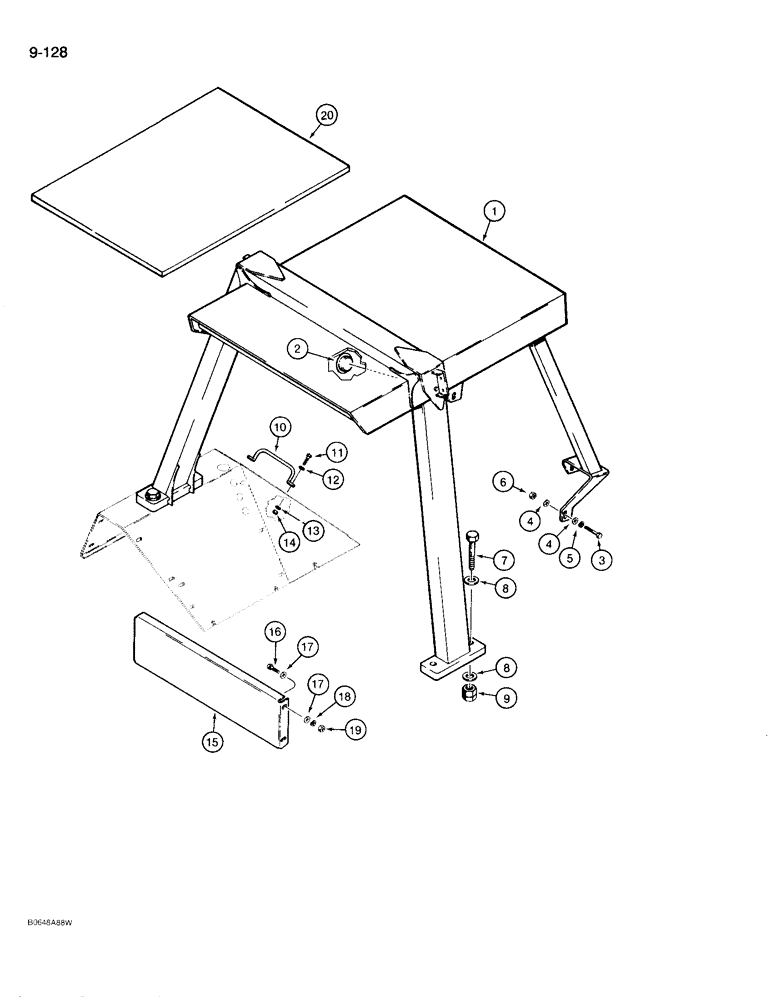

Запчасти Case 780D (9-128) - ROPS CANOPY AND REAR CLOSURE PANEL (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CANOPY - ROPS, machinery item, order from the Machinery Price List

1шт.

2

205-72

HOLE PLUG BUTTON,3"

PLUG - button, (76 mm) diameter, steel 3"

2шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

4

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened, plated

8шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

7

113-981

BOLT - hex head, 1-1/4" - 7 NC x 4-3/4", grade 8, plated

4шт.

8

196-62

WASHER,1 5/16" x 1 63/64" x .180", HDN

- flat, hardened, plated

8шт.

9

131-1223

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

4шт.

10

L73545

HANDLE

- grab, canopy, rear left-hand

1шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

L103520

PANEL ASSY.

PANEL - rear closure, used with ROPS canopy only

1шт.

16

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

17

195-104

WASHER,3/8"

- flat, , plated 3/8"

8шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

20

D124147

PAD

- noise reduction, canopy roof

1шт.

345-44

ADHESIVE

- for attaching pads to metal surfaces, spray can, 23 fl ounces (680 ml)

1шт.
