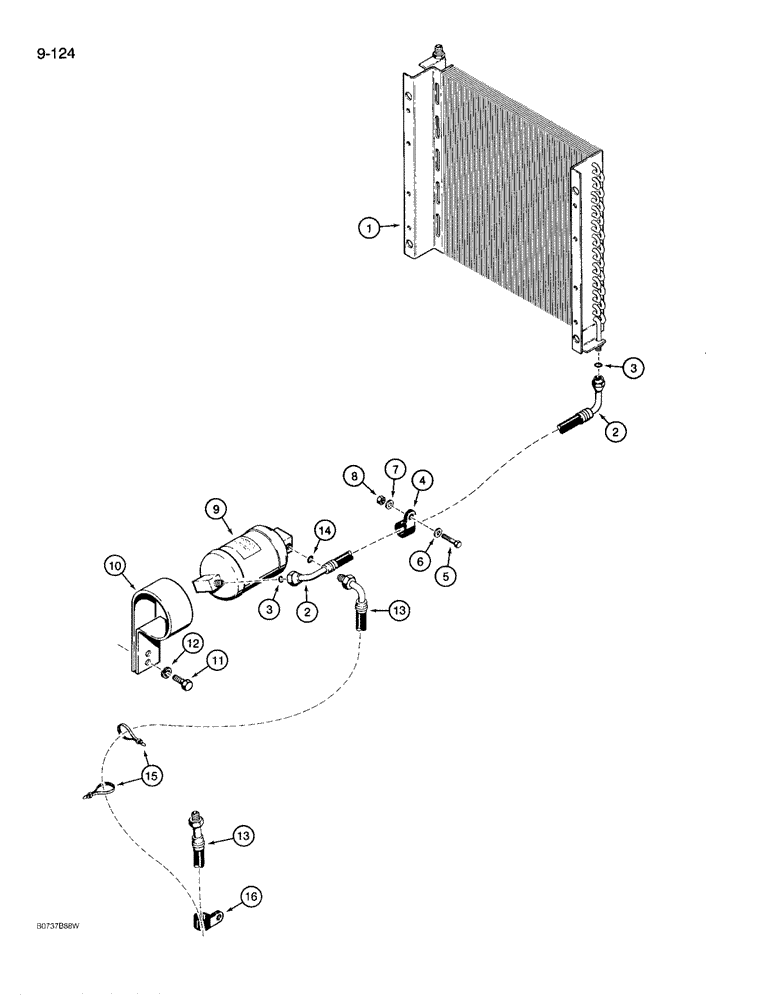

Запчасти Case 780D (9-124) - AIR CONDITIONING SUPPLY LINES, CONDENSER TO RECEIVER DRIER & CAB (09) - CHASSIS/ATTACHMENTS

1

A189297

CONDENSER

- refrigerant cooler, uses existing radiator mounting hardware

1шт.

2

1340232C1

HOSE

- 1016 mm long, condenser to receiver-drier, Includes: Ref. 3

1шт.

3

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

4

A141013

CLAMP,1 1/8", Insul, 3/8" Bolt

- hose

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

6

496-21047

WASHER

- flat, 15/32 x 59/64 x 7/64 inch, hardened

1шт.

7

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

8

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC

1шт.

9

143469C2

RESERVOIR

RECEIVER-DRIER - air conditioner

1шт.

10

D145289

SUPPORT

BRACKET - receiver-drier

1шт.

11

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 25 mm

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

1340233C1

HOSE

- 3000 mm long, receiver-drier to cab, Includes: Ref. 14

1шт.

14

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
