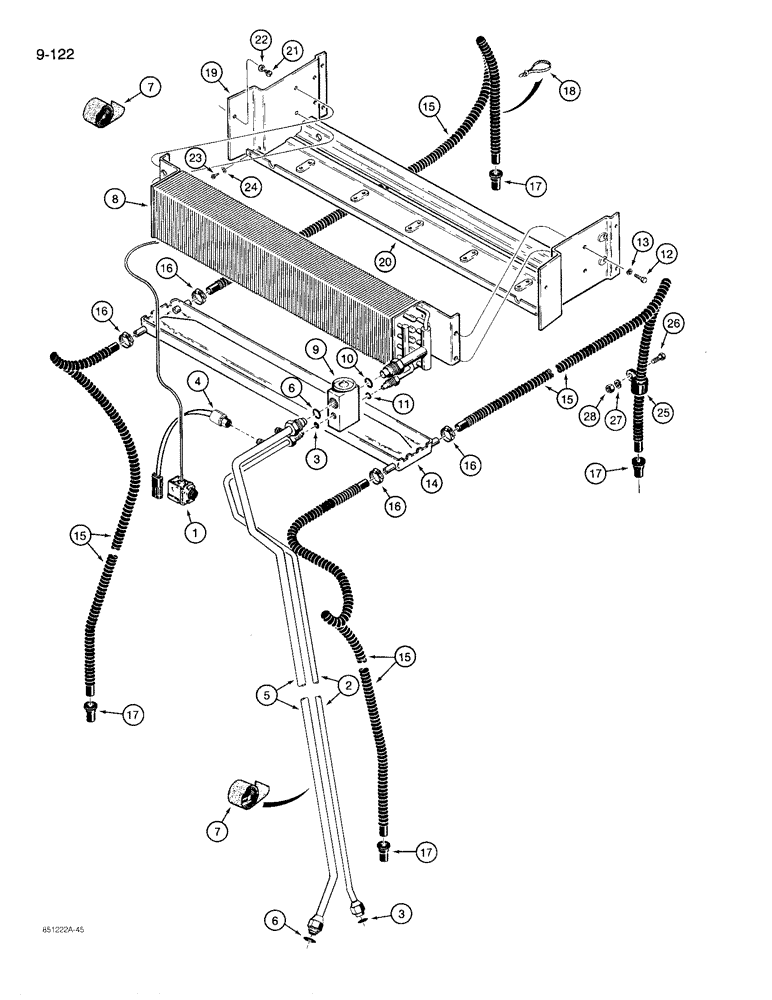

Запчасти Case 780D (9-122) - CAB AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

92101C1

SWITCH

- air conditioning control, see Figure 9-108

1шт.

2

1340229C1

TUBE

- liquid

1шт.

3

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk - Tube

2шт.

4

92153C1

SWITCH

- low pressure

1шт.

5

1340228C1

TUBE

- suction, with pressure test port

1шт.

6

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

7

1954475C1

ROLL

TAPE - cork, insulating, bulk roll, 30 ft (914 cm) long

1шт.

8

1340490C2

EVAPORATOR

CORE ASSEMBLY - evaporator

1шт.

9

98370C3

VALVE

- expansion

1шт.

10

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Upper

1шт.

11

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Lower

1шт.

12

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

14

1974613C2

HOUSING

PAN - condensation drain, includes foam

1шт.

15

F44783

TUBE

HOSE - 7/16" (11 mm) ID x 100" (2540 mm) long, cut from F64508, see below, drain, from condensation pan

4шт.

16

214-300

CLAMP

- hose

4шт.

17

F44790

VALVE

END - drain hose, rubber

4шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

F96821

BRACKET

- mounting, core

1шт.

20

F96820

PANEL

- mounting, core

1шт.

21

187-1903

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW - hex, self-tapping, No. 12 - 24 x 1/2 inch

6шт.

22

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

6шт.

23

187-460

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - indented hex washer, slotted, No. 10 - 16 x 1/2 inch

2шт.

24

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

25

49838

CLAMP

- drain hose

2шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

F64508

HOSE,0.43" ID x 100' Bulk

- drain 0.43" ID x 100' Bulk

1шт.
