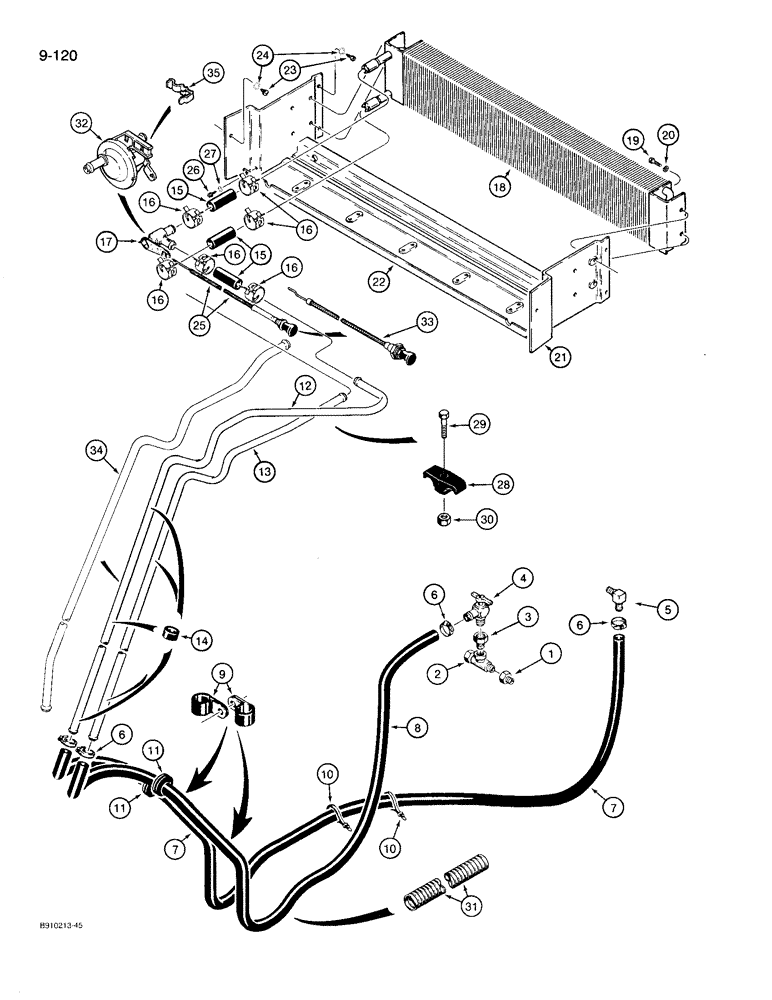

Запчасти Case 780D (9-120) - CAB HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

- 3/4" x 1/2" NPT, supply hose, at engine manifold, left-hand side

1шт.

2

221-693

TEE,1/2" NPT

- street, 1/2" NPT

1шт.

3

221-1056

BUSHING

REDUCER - 1/2" x 3/8" NPT

1шт.

4

A16764

VALVE

- shutoff, at engine manifold, left-hand side

1шт.

5

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

FITTING - stem, 45 degree, return hose, at engine, right-hand side

1шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, adjustable

4шт.

7

D90653

HOSE - 5/8" (16 mm) ID x 147-5/8" (3750 mm) long, cut from A42610 bulk, see below, heater, Serial Range: return-engine

1шт.

8

D76670

LARGE HOSE

HOSE - 5/8" (16 mm) ID x 88" (2235 mm) long, cut from A42610 bulk, see below, heater supply from manifold

1шт.

9

D40471

CLAMP

- P-style, heater hoses, uses existing left-hand fender heater hose cover hardware

4шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

11

A7808

GROMMET

- hoses at floor plate and fender

2шт.

12

F44939

HEATER TUBE

TUBE - return, no longer available, order (2) Ref. 15, R54967 hose, (1) each Ref. 32, 1331087C1 valve, Ref. 33, 1344076C1 cable, Ref. 34, 1343979C1 tube, and Ref. 35, 1954626C1 clip

1шт.

13

F44938

HEATER TUBE

TUBE - supply

1шт.

14

F64347

SEAL

INSULATOR - tubes

5шт.

15

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

- Cut from 97252C1 bulk, See below, Heater tubes to flow control valve and core 15.50 mm ID x 70.00 mm

3шт.

16

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, No. 24, Spring, Replaces (2) 214-253 clamps

6шт.

17

F63865

VALVE

- flow control, heater, if used

1шт.

18

F45204

HEAT-EXCHANGER

CORE - heater

1шт.

19

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

21

F96821

BRACKET

- heater core

1шт.

22

F96820

PANEL

- lower, heater core

1шт.

23

187-1903

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW - hex head, self-tapping, No. 12 - 24 NC x 1/2", plated

6шт.

24

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

6шт.

25

1343934C1

CABLE

- heater control, no longer available, order (2) Ref. 15, R54967 hose, (1) each Ref. 32, 1331087C1 valve, Ref. 33, 1344076C1 cable, Ref. 34, 1343979C1 tube and Ref. 35, 1954626C1 clip

1шт.

26

187-460

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - indented hex washer, slotted, No. 10 NC x 1/2 inch

2шт.

27

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

28

D120613

CLAMP,20mm ID

- tube

1шт.

29

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

30

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

31

E44958

LOOM

SLEEVE - hose protection

2шт.

32

1331087C1

HEATER VALVE

VALVE - flow control, heater, if used

1шт.

33

1344076C1

CABLE

- heater control, see figure 9-128

1шт.

34

1343979C1

HEATER TUBE,15.88 mm OD, 1237, 78 mm Length

TUBE - return

1шт.

35

1954626C1

SPRING CLIP

CLIP - spring, cable retainer

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.

A42610

LARGE HOSE

HOSE - bulk, 5/8" (16 mm) ID x 50 ft (1524 cm) long

1шт.
