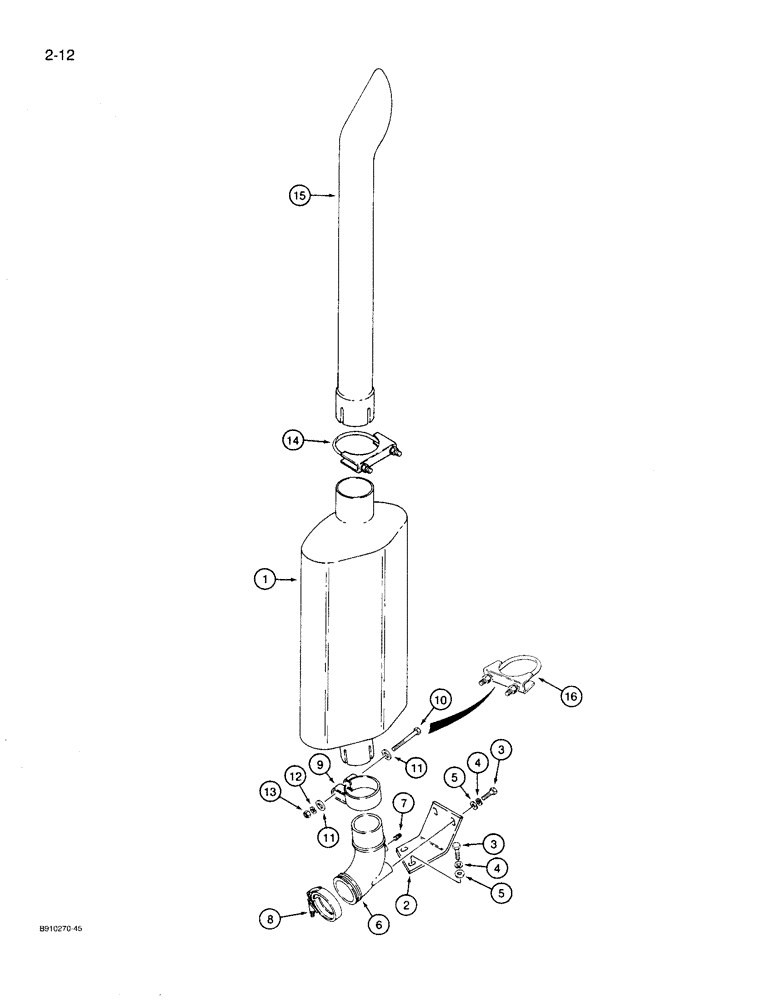

Запчасти Case 780D (2-12) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

A171543

MUFFLER

- engine exhaust, noise reduction

1шт.

2

A171823

BRACKET

- elbow support

1шт.

3

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 25 mm (8.8)

4шт.

4

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

4шт.

5

195-525

WASHER,3/8", SAE

- flat, 3/8 inch

4шт.

6

A173623

ELBOW

- muffler adapter

1шт.

7

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4 inch NPT

1шт.

8

A170467

CLAMP,72mm ID

- T-bolt

1шт.

9

R27691

CLAMP

- muffler

1шт.

10

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

1шт.

11

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch

2шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

L100055

CLAMP

- exhaust pipe, includes hardware

1шт.

15

L111575

PIPE

- exhaust, muffler, 31-1/2 inch long

1шт.

16

A189265

CLAMP,80.5mm ID

- muffler, includes hardware, no longer used, order Ref. 9-13

1шт.
