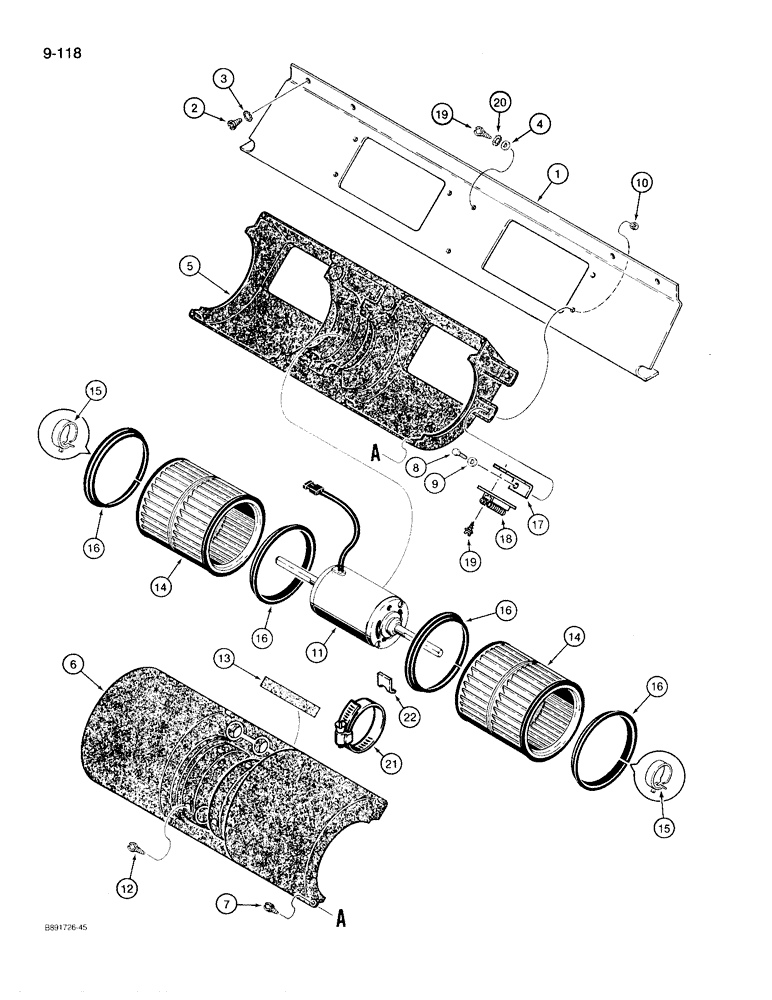

Запчасти Case 780D (9-118) - CAB BLOWER (09) - CHASSIS/ATTACHMENTS

1

F45208

BRACKET

- blower mounting

1шт.

2

187-1903

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW - hex head, self-tapping, No. 12 - 24 NC x 1/2", plated

4шт.

3

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

4шт.

4

195-513

WASHER,#10

- flat, No. 10, plated

3шт.

5

F64740

HOUSING

- fans, plastic, lower

1шт.

6

F64741

HOUSING

- fans, plastic, upper

1шт.

7

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

8шт.

8

163-13

SCREW,Hex, #10 - 24 x 3/4"

- machine, hex head, No. 10 - 24 NC x 3/4", plated

4шт.

9

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

10

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

11

R54415

MOTOR, ELECTRIC

MOTOR - blower

1шт.

12

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - pan head, self-tapping, No. 10 - 16 NC x 1", plated

4шт.

13

F64816

FOAM

SEAL - foam, upper fan housing, 4" (102 mm) long, cut from F64119 bulk, see below

1шт.

14

F64935

BLOWER,Fan

FAN - blower

2шт.

15

F64936

CLAMP

- steel spring

2шт.

16

F64739

RING

- plastic, fan retaining

4шт.

17

97389C1

SUPPORT

BRACKET - resistor mounting

1шт.

18

F44900

RESISTOR

- blower

1шт.

19

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer, slotted, self-tapping, No. 10 - 16 x 1/2 inch

5шт.

20

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

3шт.

21

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - motor

1шт.

22

R51563

CLIP,ELECTRICAL

CLIP - motor

1шт.

F64119

SEALING STRIP

SEAL - foam, bulk roll, 100 ft (3048 cm) long

1шт.
