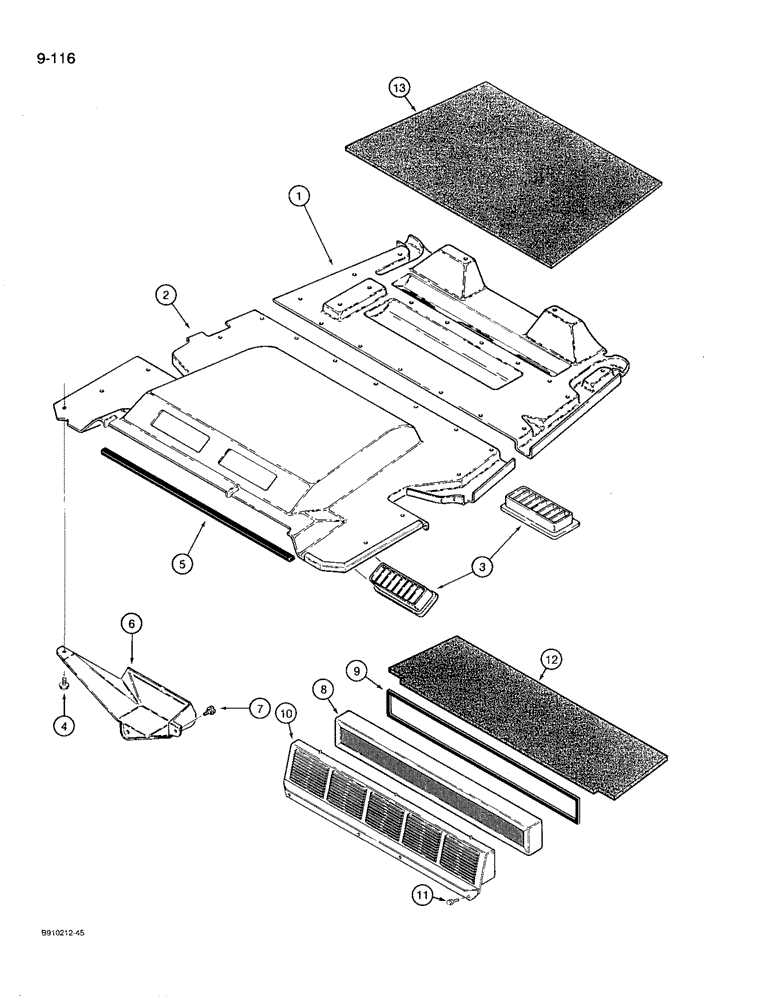

Запчасти Case 780D (9-116) - CAB HEADLINER, WINDSHIELD WIPER COVERS,, AIR FILTER, AND ROOF INSULATION (09) - CHASSIS/ATTACHMENTS

1

F45342

LINING

HEADLINER - front

1шт.

2

F45343

MOLDING

HEADLINER - rear

1шт.

3

L109555

GUARD

LOUVER - headliner

5шт.

4

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - special

34шт.

5

REF

INSTRUCTION

SEAL - foam, rear headliner, 23-5/8" (600 mm) long, cut from A42905, see below

1шт.

6

F45386

COVER ASSY

COVER - rear windshield wiper motor

1шт.

7

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, Phillips, with washer, No. 10 - 16 x 3/4 inch

1шт.

8

F44714

FILTER

- air

1шт.

9

F44774

SEAL

- filter

1шт.

10

F96711

GUARD

COVER - filter, with louvers

1шт.

11

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

12

F44800

LINING

- roof, rear

1шт.

13

F44799

LINING

- roof, front

1шт.

A42905

FOAM

SEAL - foam, bulk roll, adhesive-backed, 1/2" (13 mm) wide x 1/8" (3mm) thick x 50 ft (15.2 m) long

1шт.
