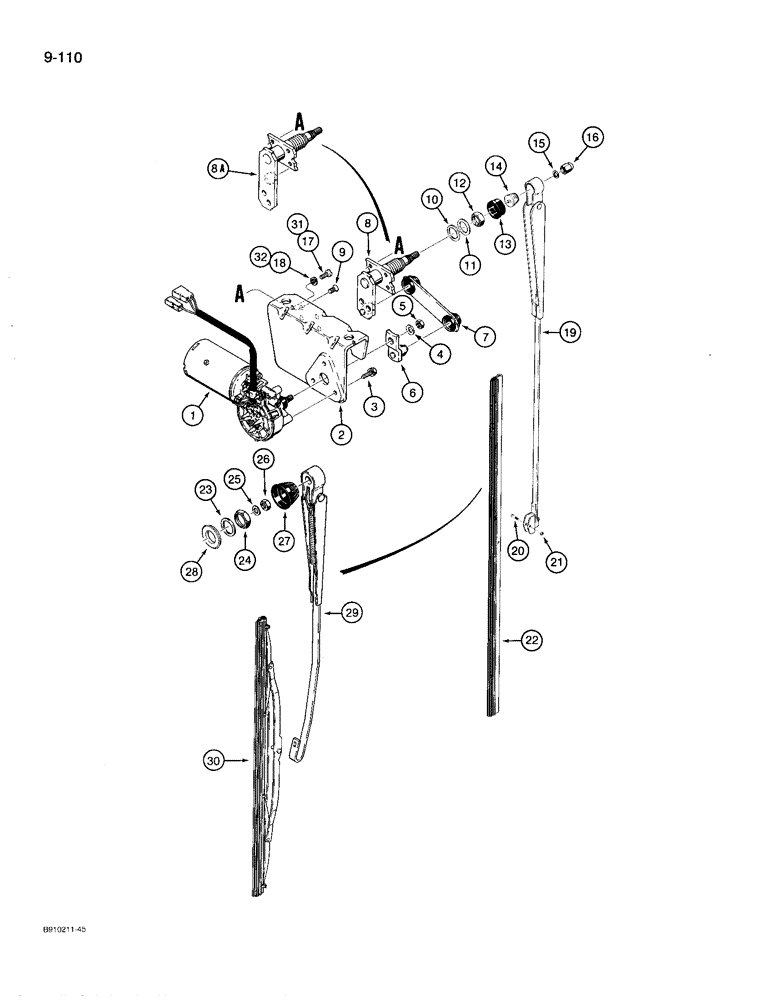

Запчасти Case 780D (9-110) - CAB FRONT WINDSHIELD WIPER, WIPER ARM, BLADE, AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

A187599

MOTOR

ASSEMBLY - with bracket, front windshield wiper, 12 volt, includes Ref. 1 - 16 below, except for Ref. 8A, no longer available, order A187963 kit shown below, Includes: Ref. 1 - 16

1шт.

A187946

MOTOR, ELECTRIC

MOTOR ASSEMBLY - with bracket, front windshield wiper, 12 volt, includes Ref. 1 - 9, except for Ref. 8, Includes: Ref. 1 - 16

1шт.

1

A186256

WIPER MOTOR,12V

MOTOR - windshield wiper 12V

1шт.

2

N8359

SUPPORT

BRACKET - windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW - with washer, special, motor to bracket

3шт.

4

N8361

SPRING WASHER

- bent, special

1шт.

5

L112090

NUT

- hex, special, 8 mm

1шт.

6

N8360

SUPPORT

ARM - drive

1шт.

7

N9089

DRAG LINK

LINK - wiper

1шт.

8

N9090

WIPER BLADE

SHAFT - pivot, A187599 motor

1шт.

8a

A187953

PIVOT ASSY.

SHAFT - pivot, A187936 motor

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- special, pivot shaft to bracket

4шт.

10

N6749

WASHER

- fiber

1шт.

11

N6750

WASHER

- steel

1шт.

12

N6751

NUT

- shaft

1шт.

13

N6752

CAP

- shaft, rubber

1шт.

14

N6753

BLOCK DRIVER

DRIVER - knurled

1шт.

15

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

16

N6754

NUT

- dome, special

1шт.

17

459-1256

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

- machine, pan head slotted, 1/4 NF x 3/8 inch, wiper arm, blade, and mounting parts for A187599 motor

2шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Wiper arm, blade, and mounting parts for A187599 motor 1/4"

2шт.

19

F44928

WIPER

ARM - windshield wiper, 22" (559 mm) long, wiper arm, blade, and mounting parts for A187599 motor, Includes: Ref. 20 and 21

1шт.

20

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- machine, pan head slotted, No. 5 NC x 1/2 inch, wiper arm, blade, and mounting parts for A187599 motor

1шт.

21

129-14

NUT,#5-40

Wiper arm, blade, and mounting parts for A187599 motor #5-40

1шт.

22

F43938

WIPER BLADE

BLADE - windshield wiper, 22" (559 mm) long, arm, and mounting parts for A187599 motor

1шт.

23

L112088

WASHER

- special, large, shaft, wiper arm, blade, and mounting parts for A187946 motor

1шт.

24

L112087

NUT

- special, large, shaft, wiper arm, blade, and mounting parts for A187946 motor

1шт.

25

L112089

WASHER

- wave, special, shaft end, wiper arm, blade, and mounting parts for A187946 motor

1шт.

26

L112090

NUT

- hex, special, 8 mm, shaft end, wiper arm, blade, and mounting parts for A187946 motor

1шт.

27

L112081

CAP

- pivot shaft end, wiper arm, blade, and mounting parts for A187946 motor

1шт.

28

R54241

SPACER

- pivot shaft, wiper arm, blade, and mounting parts for A187946 motor

1шт.

29

D128745

WIPER ARM

ARM - windshield wiper, 22-7/16 inch (570 mm) long, complete, wiper arm, blade, and mounting parts for A187946 motor

1шт.

30

A187909

WIPER BLADE

BLADE - windshield wiper, complete, see below for blade refill, wiper arm, blade, and mounting parts for A187946 motor

1шт.

31

459-1256

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

- machine, pan head slotted, 1/4 NF x 3/8 inch, wiper arm, blade, and mounting parts for A187946 motor

2шт.

32

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Wiper arm, blade, and mounting parts for A187946 motor 1/4"

2шт.

1983335C1

WIPER

BLADE - rubber, 500 mm long, refill

1шт.

A187963

KIT

- wiper, front windshield, includes A187946 motor assembly, Ref. 23 - 32, and an instruction sheet

1шт.
