Запчасти Case 780D (9-106) - CAB GLASS - METRIC DIMENSIONS (09) - CHASSIS/ATTACHMENTS

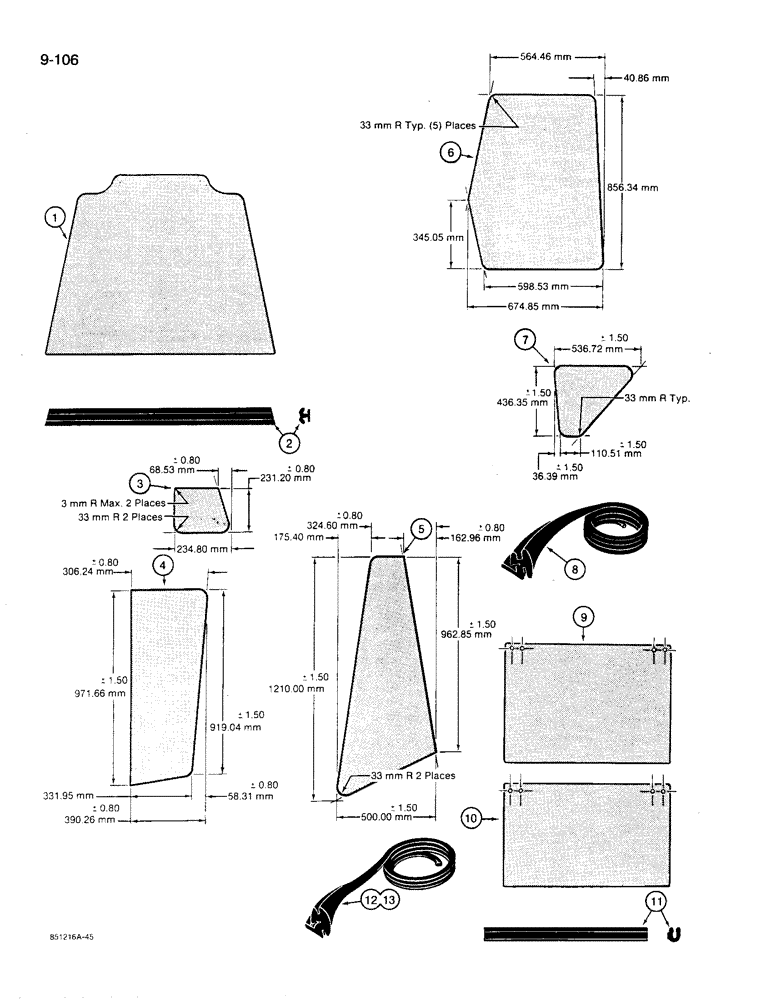

Схема запчастей Case 780D - (9-106) - CAB GLASS - METRIC DIMENSIONS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

F44623

WINDSHIELD

GLASS - windshield, upper, use Ref. 12 seal

1шт.

2

F44621

MOLDING

SUPPORT - windshield, bottom of upper windshield

1шт.

3

REF

INSTRUCTION

GLASS - windshield, lower, use Ref. 12 seal

2шт.

4

REF

INSTRUCTION

GLASS - side, rear, use Ref. 13 seal

2шт.

5

REF

INSTRUCTION

GLASS - panel, next to rear window, use Ref. 13 seal

2шт.

6

REF

INSTRUCTION

GLASS - side, windows, use Ref. 12 seal

2шт.

7

REF

INSTRUCTION

GLASS - side, front lower; left-hand glass uses Ref. 12 seal, right-hand glass uses Ref. 8 seal

2шт.

8

L107709

SEAL ASSY.

SEAL - used with Ref. 7 glass on the right-hand side, 1549 mm long

1шт.

9

F44629

GLASS

- rear window, upper

1шт.

10

F44630

GLASS

- rear window, lower

1шт.

11

F44710

SEAL

SUPPORT - seal, lower rear window, attaches to top of glass

1шт.

12

A42677

MOLDING

SEAL - used around all glass except right-hand Ref. 7 and Ref. 4, 5, 9, and 10, bulk roll, 1524 cm long

1шт.

13

F43628

MOLDING

SEAL - used around rear side glass, Ref. 4 and 5, bulk roll, 3048 cm long

1шт.

Выбрано товаров: 13
