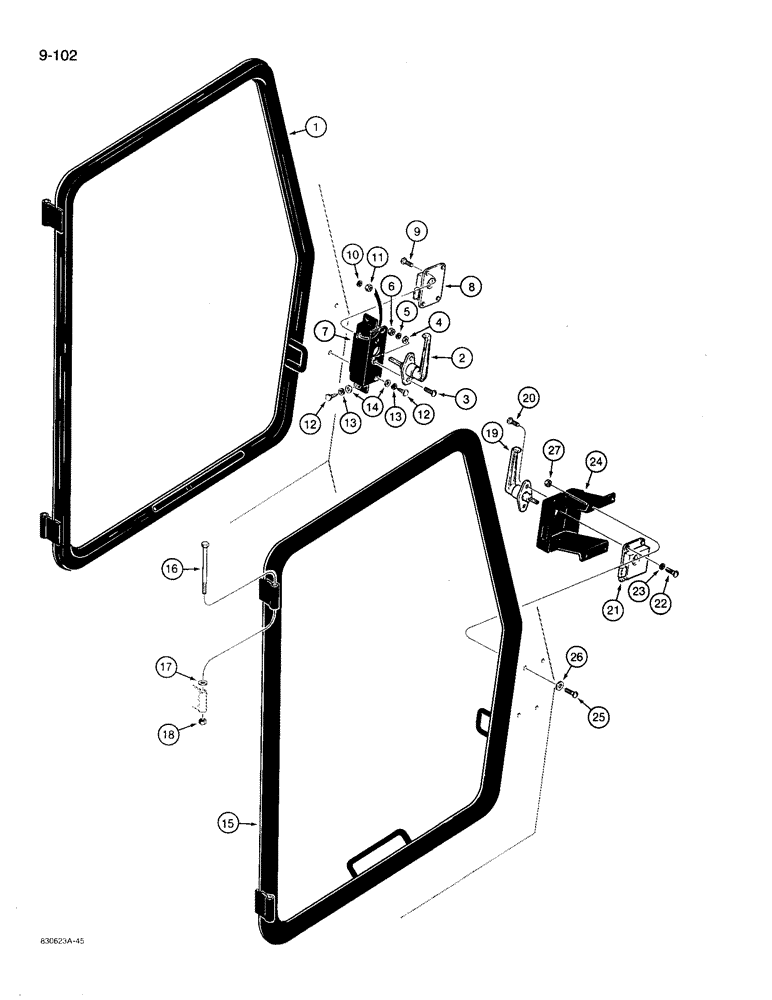

Запчасти Case 780D (9-102) - CAB SIDE WINDOWS (09) - CHASSIS/ATTACHMENTS

1

F96713

WINDOW

FRAME - window, left-hand

1шт.

2

F45168

HANDLE

- window, left-hand

1шт.

3

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- machine, oval Phillips head, No. 10 - 24 NC x 5/8", plated

2шт.

4

195-513

WASHER,#10

- flat, No. 10, plated

2шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

6

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

2шт.

7

F44829

SUPPORT

- window latch, left-hand

1шт.

8

F45167

LATCH

- window, left-hand

1шт.

9

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

12

F45307

SCREW

- special, smooth head, self-tapping, requires special tools for installation

4шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

14

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

15

F96712

FRAME

- window, right-hand

1шт.

16

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

4шт.

17

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, window frame

4шт.

18

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

19

F45168

HANDLE

- window, right-hand

1шт.

20

179-153

SCREW,Cross Oval Hd, #10 - 24 x 1/2"

- machine, oval Phillips head, No. 10 - 24 NC x 1/2", plated

2шт.

21

F45164

LATCH

- window, right-hand

1шт.

22

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer, slotted, self-tapping, No. 10 - 16 x 1/2 inch

4шт.

23

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

24

F96825

HOUSING

- latch, right-hand

1шт.

25

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips head, No. 10 - 24 NC x 1/2", plated

4шт.

26

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

27

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.
