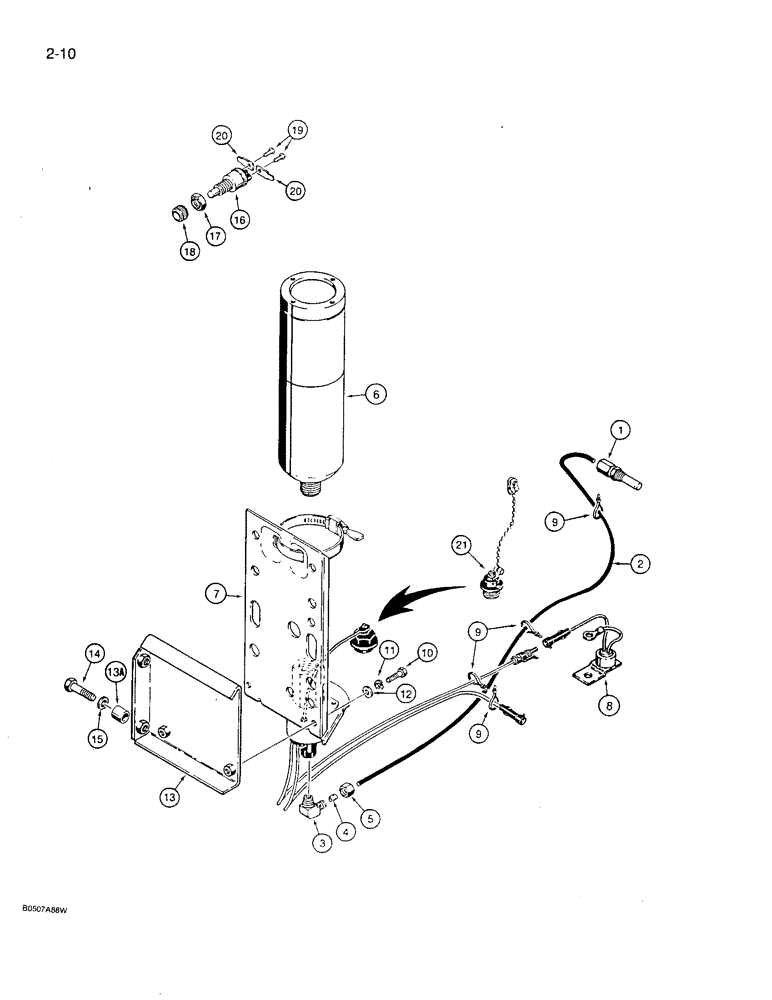

Запчасти Case 780D (2-10) - COLD START SYSTEM (02) - ENGINE

1

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - cold start injector, dual orifice nozzle, replaces existing manifold plug, mounts to side of manifold, component parts not serviced separately

1шт.

2

D131609

TUBE

- valve to injector nozzle, 24 inch long

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy, Incl. Ref 3 - 5 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8", brass 5/16"-24, 45º Fl, Comp

1шт.

6

A171940

CYLINDER

CONTAINER - starting fluid cylinder

1шт.

7

D137278

VALVE

ASSEMBLY - 3 cc starting fluid injection, with bracket, component parts not serviced separately

1шт.

8

D137305

THERMOSTAT

SWITCH - temperature, circuit breaking, uses existing intake manifold mounting hardware

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2-4шт.

10

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

12

195-518

WASHER,1/4", SAE

- flat, 1/4"

4шт.

13

D133313

BRACKET

- valve mounting, attaches to left-hand upper support frame

1шт.

13a

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- bracket

2шт.

14

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

15

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 3/8 inch, hardened

2шт.

L72776

SWITCH

ASSEMBLY - cold start, includes screws, must also order (2) L59682 blade terminals (Ref. 20), Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

SWITCH - cold start

1шт.

17

H275784

JAM NUT

- hex, jam, special

1шт.

18

D73741

NUT

- special

1шт.

19

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

- machine, round head slotted, No. 10 NF x 1/4 inch

2шт.

20

L59682

TERMINAL CONNECTOR

TERMINAL - blade, used with L72776 switch

2шт.

21

N8826

PLUG

- with chain, place in starting fluid valve when starting fluid canister is not in place, if used

1шт.
