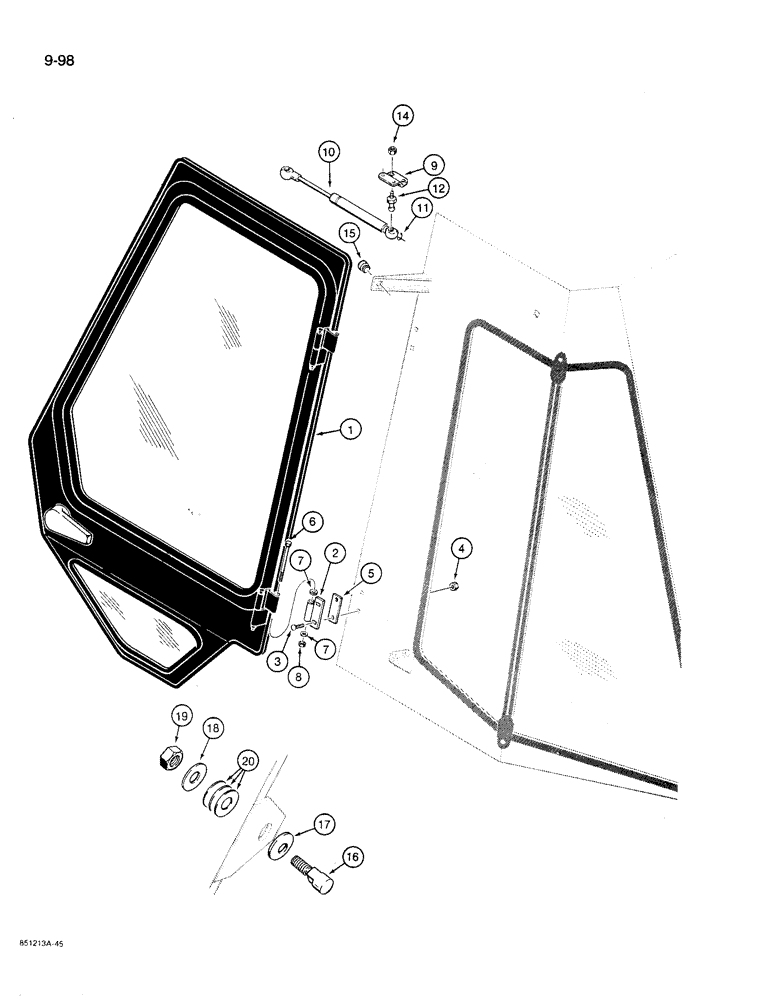

Запчасти Case 780D (9-098) - CAB DOOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

DOOR - cab, see Figure 9-96

1шт.

2

F44868

HINGE

- door

2шт.

3

111-255

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5

4шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

5

F43257

PLATE

SPACER - door hinge

2шт.

6

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

7

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, hinge

4шт.

8

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

9

F44873

BRACKET

- mounting, door cylinder, welds to cab frame

1шт.

10

F44881

CYLINDER ASSY.

CYLINDER - door

1шт.

11

F44883

CLIP,DIN 71805 - S10

- lock, ball stud

2шт.

12

1304648C1

STUD

- ball, cylinder

2шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

15

L60224

BUMPER

- rubber, door stop

1шт.

16

F45073

PIN

STRIKER - door latch

1шт.

17

F44748

SPRING WASHER

SPRING - Belleville, door striker

1шт.

18

195-2029

WASHER,7/16" x 1 1/4" x .134"

- flat, 7/16", plated

1шт.

19

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16" - 14 NC, plated

1шт.

20

195-2207

WASHER,7/16" x 1 1/4" x .065"

- flat, 7/16" ID x 1-1/4" O.D. x 1/16" thick, plated

3шт.
