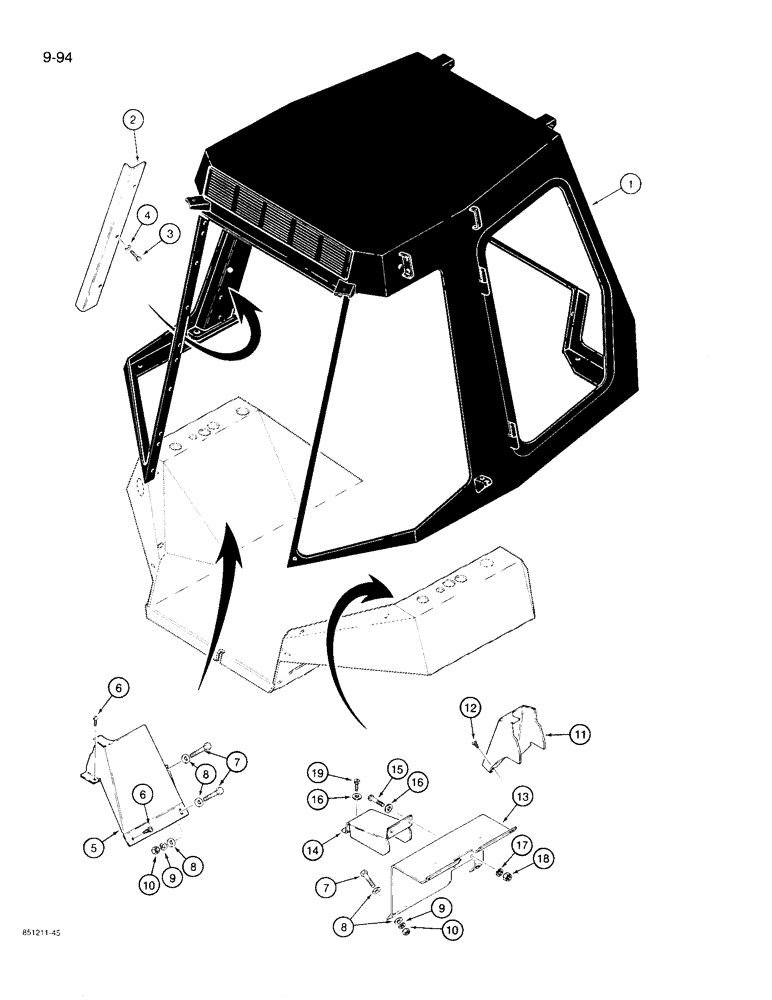

Запчасти Case 780D (9-094) - HEATING AND AIR CONDITIONING LINE COVERS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - cab

1шт.

P/N R100082 is a bare cab frame weldment with serial plate. All other cab parts must be ordered separately.

1шт.

2

F44766

COVER

- heating and air conditioning lines, upper

2шт.

3

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

4

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

6шт.

5

L111759

COVER ASSY

COVER - left-hand fender, heater hose

1шт.

6

187-308

TAP

SCREW - pan head slotted, self-tapping, No. 6 - 20 NC x 3/8"

2шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

8

195-104

WASHER,3/8"

- flat, , plated 3/8"

12шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

11

L106509

COVER ASSY

COVER - air conditioning tubes, right-hand fender, upper

1шт.

12

187-811

SCREW,Slotted Pan Hd, #6 x 5/16"

- pan head slotted, self-tapping, No. 6 - 20 NC x 3/16"

4шт.

13

L104403

COVER ASSY

COVER - tool box mounting

1шт.

14

L104388

COVER ASSY

COVER - air conditioning tubes, right-hand fender, lower

1шт.

15

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

16

195-102

WASHER,1/4"

- flat, , plated 1/4"

3шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

19

187-1514

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW - hex head, self-tapping, 1/4" - 20 NC x 5/8"

1шт.
