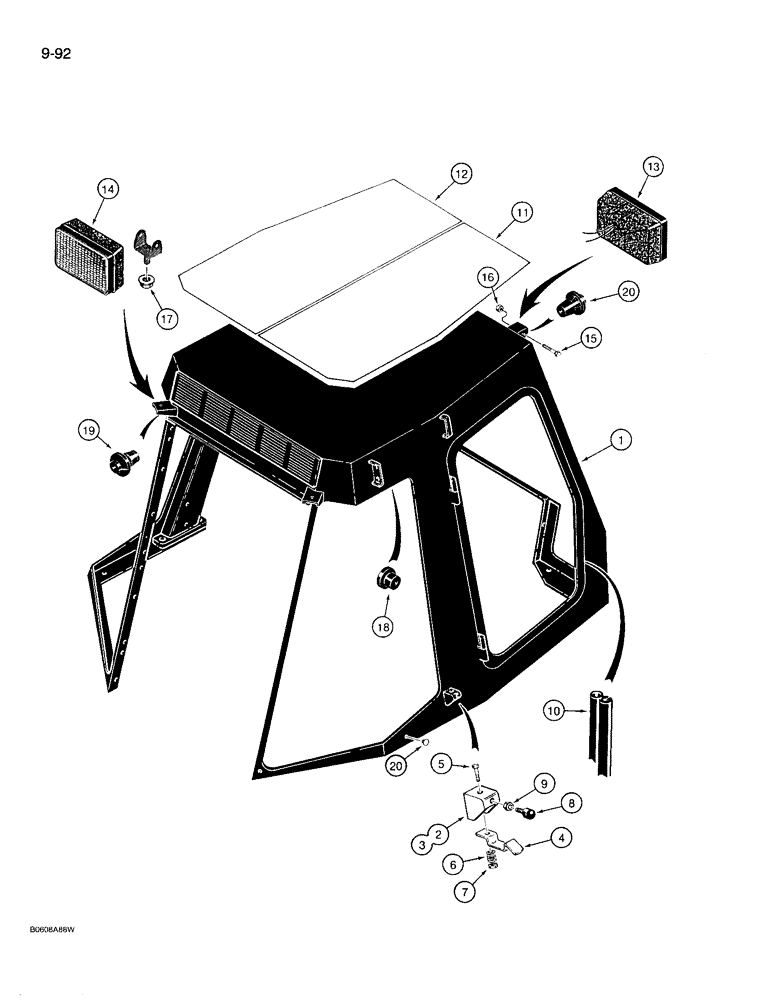

Запчасти Case 780D (9-092) - CAB FRAME AND LAMPS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - cab, Includes: Ref. 2 and 3

1шт.

2

F97010

BRACKET

- window latch, right-hand

1шт.

3

F97011

BRACKET

- window latch, left-hand

1шт.

4

F42772

LATCH

- window

2шт.

5

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

6

D36669

SPRING

- bracket

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

F44935

BUMPER

- window

2шт.

9

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

10

REF

INSTRUCTION

SEAL - right-hand window frame, cut to length from F43086, see below

1шт.

11

F44914

DECAL

COVER - white vinyl, top of roof, heat deflection, used on models with air conditioning, right-hand

1шт.

12

F44915

DECAL

COVER - white vinyl, top of roof, heat deflection, used on models with air conditioning, left-hand

1шт.

13

D137294

LIGHT ASSY.

LAMP ASSEMBLY - front, used without hinge bracket, parts list Figure 4-32

2шт.

14

D137294

LIGHT ASSY.

LAMP ASSEMBLY - rear, uses hinge bracket, parts list Figure 4-32

2шт.

15

113-165

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 2

- hex head, 5/16" - 18 NC x 2-1/2", plated

2шт.

16

131-205

LOCK NUT,5/16"-18

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

17

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, flange type, special locking, 1/2" - 13 NC, plated

2шт.

18

353-486

GROMMET

- 1-1/2" (38 mm) hole size, for side lamp wires, inner cab frame

2шт.

19

R54547

GROMMET

- molded, split, 1-1/32" (26 mm) hole size, front and rear lamp harness, press into outer cab frame

4шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

(10 mm), Frame Dome, .375" hole, Nylon

2шт.

F43086

SEAL

- bulk, 100 ft (3048 cm) long

1шт.
