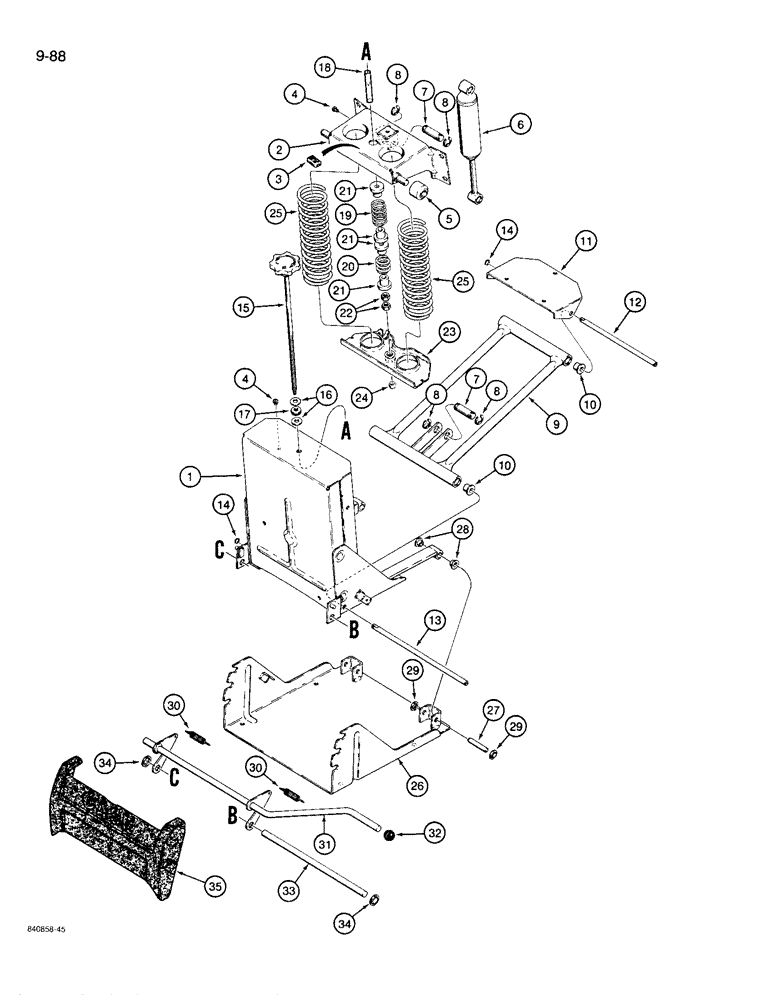

Запчасти Case 780D (9-088) - SUSPENSION SEAT ADJUSTER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

D127368

ADJUSTER

ASSEMBLY - suspension seat, used with D147640 seat support on Figure 9-86 and D127366 or D127367 seat on Figure 9-82, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - adjuster assembly

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - springs, upper

1шт.

3

N8484

INSULATOR BLOCK

BUMPER - rubber

1шт.

4

N8487

RIVET

- plastic, yellow, weight indicator

2шт.

5

N8500

ROLLER

- upper bracket, seat adjustment

2шт.

6

N8488

SHOCK ABSORBER

- adjuster assembly

1шт.

7

N8485

AXLE PIN

PIN - shock absorber mounting

2шт.

8

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , pin #62, .480" Dia, E-Type

4шт.

9

NSS

NOT SOLD SEPARAT

ARM - seat adjuster, Includes: Ref. 10

1шт.

10

N8527

BUSHING

- arm pivot

4шт.

11

N8489

BRACKET

- seat pivot, front

1шт.

12

N8490

SHAFT

- seat adjuster arm, front

1шт.

13

N8492

SHAFT

- seat adjuster arm, rear

1шт.

14

G46146

SNAP RING,#37, Ext

Ring, Snap, , shaft, seat adjuster arm #37, Ext

2шт.

15

N8503

ADJUSTER

- seat, screw with knob

1шт.

16

N8502

WASHER

- thrust, adjuster knob

2шт.

17

F13537

THRUST BEARING

BEARING - thrust, adjuster knob

1шт.

18

N8501

SPACER

- vinyl, seat adjuster

1шт.

19

N8496

VALVE SPRING

SPRING - seat adjuster, upper

1шт.

20

N8494

VALVE SPRING

SPRING - seat adjuster, lower

1шт.

21

N8495

RETAINER

- springs, seat adjuster

4шт.

22

N8497

NUT

- special, seat adjuster, upper

2шт.

23

NSS

NOT SOLD SEPARAT

BRACKET - springs, lower

1шт.

24

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, jam, self-locking, 1/4" - 20 NC, plated

1шт.

25

N8498

VALVE SPRING

SPRING - large, adjuster assembly

2шт.

26

NSS

NOT SOLD SEPARAT

BASE - support

1шт.

27

N9243

AXLE PIN

PIN -, Serial Range: housing-base

2шт.

28

N9241

BUSHING

- base

4шт.

29

131-435

PUSH-ON NUT,Push, 3/8"

NUT - push-on type, 3/8"

4шт.

30

N9240

VALVE SPRING

SPRING - extension

2шт.

31

N9244

HANDLE

- seat tilt

1шт.

32

NSS

NOT SOLD SEPARAT

KNOB - handle

1шт.

33

N9242

SHAFT

-, Serial Range: handle-housing

1шт.

34

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

2шт.

35

NSS

NOT SOLD SEPARAT

EMBLEM - Case

1шт.
