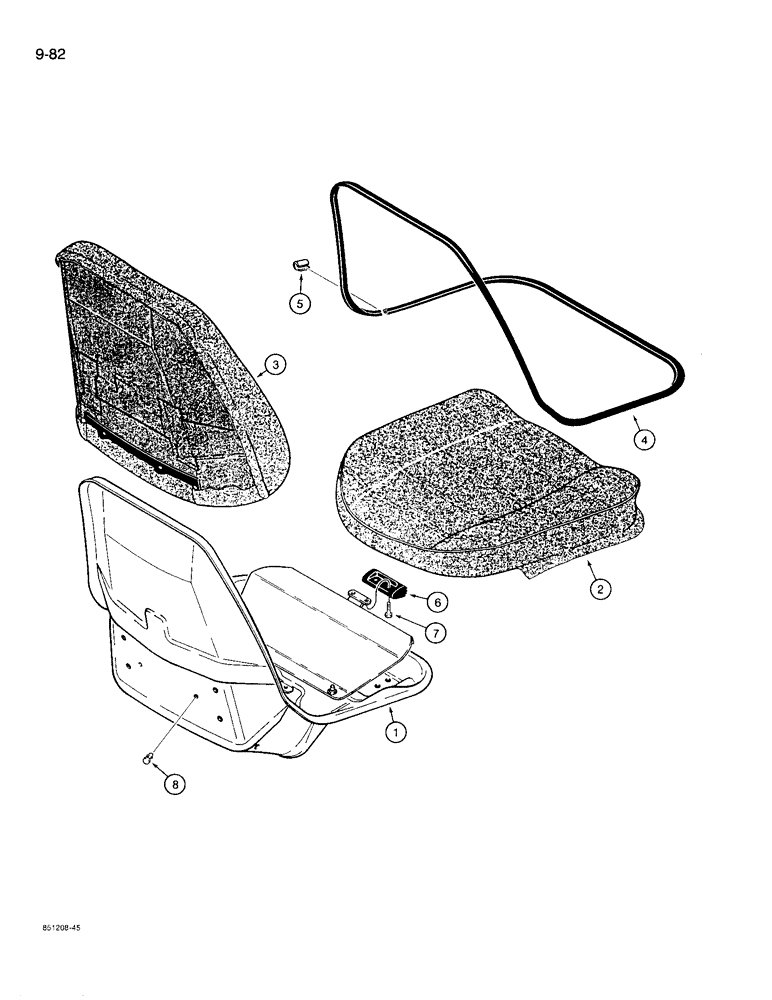

Запчасти Case 780D (9-082) - SUSPENSION SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

D127367

SEAT

ASSEMBLY - suspension, vinyl, three-position adjustable seat cushion, for seat support see Figure 9-86, for seat adjuster assembly, see Figure 9-88, Includes: Ref. 1 - 8

1шт.

D127366

SEAT ASSY.

SEAT ASSEMBLY - suspension, cloth, three-position adjustable seat cushion, for seat support see Figure 9-86, for seat adjuster assembly, see Figure 9-88, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N9258

CUSHION ASSY.

CUSHION - vinyl seat, includes N7802 clip kit, see below

1шт.

2

N9237

SUPPORT ASSY.

CUSHION - cloth seat, includes N7802 clip kit, see below

1шт.

3

N9259

BACKREST

- vinyl seat, includes N7802 clip kit, see below

1шт.

3

N9238

CUSHION

BACKREST - cloth seat, includes N7802 clip kit, see below

1шт.

4

N14614

GASKET

RETAINER - strip, brown, Serial Range: cushion-shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

See Fig. 9-80 for standard seat.

1шт.

6

N9239

HANDLE

- cushion adjustment

1шт.

7

182-579

SCREW - machine, slotted pan, 1/4" - 20 NC x 7/8", plated

2шт.

8

NSS

NOT SOLD SEPARAT

RIVET - plastic

2шт.

345-44

ADHESIVE

- pad retaining, in a can, 23 fl ounces (680 ml), not shown

1шт.

N7802

CLIP

KIT - clip, includes Ref. 5 clip above plus 6 additional narrow clips

1шт.

See Fig. 9-80 for standard seat.

1шт.
