Запчасти Case 780D (2-08) - AIR CLEANER (02) - ENGINE

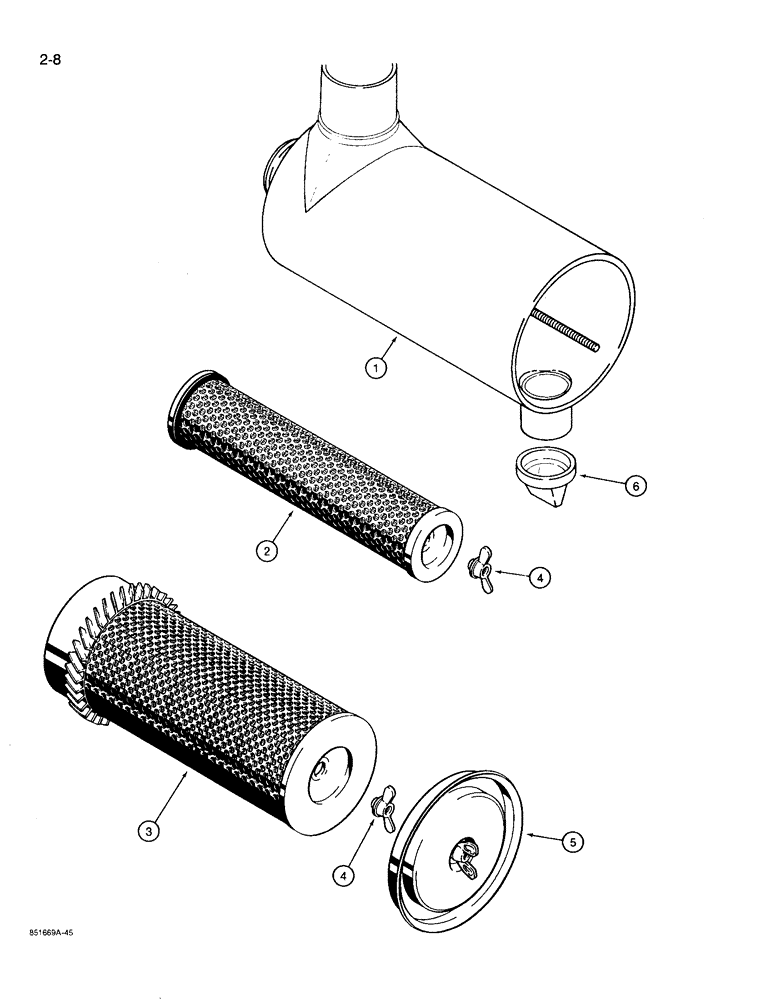

Схема запчастей Case 780D - (2-08) - AIR CLEANER (02) - ENGINE

Артикул

Название

Примечание

Количество

A173852

FILTER ASSY

CLEANER ASSEMBLY - air, engine, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

2

A47033

AIR FILTER

ELEMENT - secondary

1шт.

3

A47032

AIR FILTER

ELEMENT - primary

1шт.

4

D78354

WING NUT

NUT - wing, element and cover

2шт.

5

A52419

COVER

- end, with wing nut

1шт.

6

S113982

CAP

VALVE - dust, rubber

1шт.

Выбрано товаров: 7
