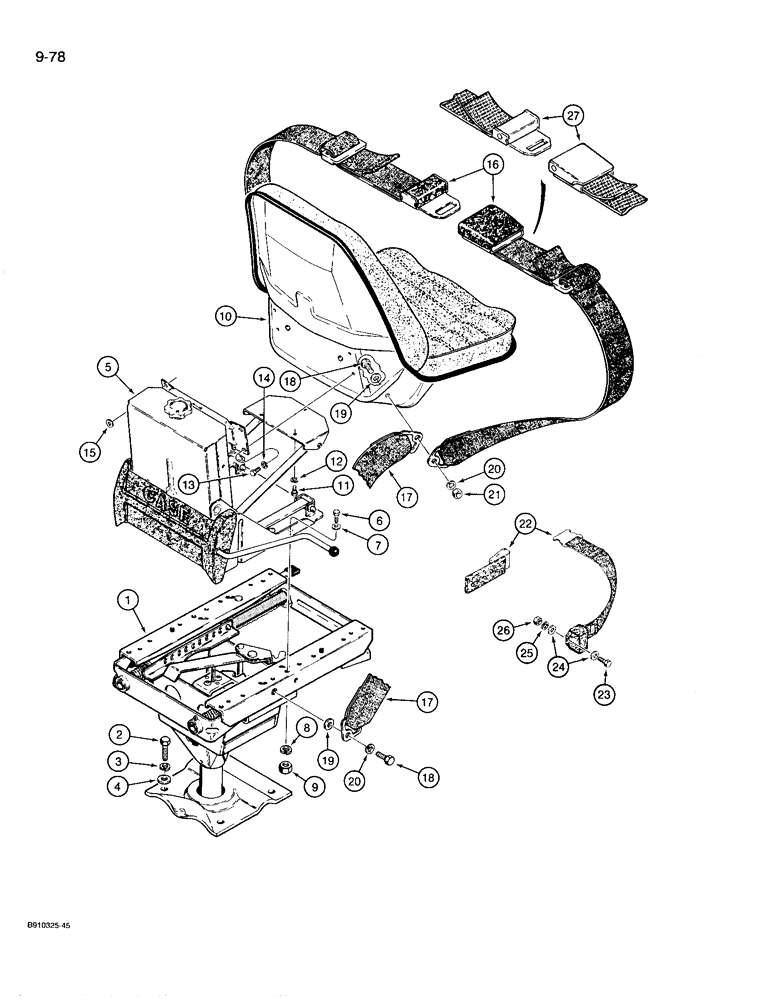

Запчасти Case 780D (9-078) - SUSPENSION SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D147640

PEDESTAL

SUPPORT ASSEMBLY - suspension seat, parts list Figure 9-86 (replaces D127369 support)

1шт.

2

113-2441

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

195-106

WASHER,1/2"

- flat, , plated 1/2"

4шт.

5

D127368

ADJUSTER

ASSEMBLY - suspension seat, parts list Figure 9-88

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

7

495-21038

WASHER,5/16"

4шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , if used 5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, If used

4шт.

10

D127367

SEAT

ASSEMBLY - suspension, vinyl, parts list Figure 9-82

1шт.

10

D127366

SEAT ASSY.

SEAT ASSEMBLY - suspension, cloth, parts list Figure 9-82

1шт.

11

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

3шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

495-21038

WASHER,5/16"

LH side only 5/16"

2шт.

16

D85816

SAFETY BELT

BELT - seat, 3" (76 mm) wide, if used, no longer available, order Ref. 27, D150010 seat belt

1шт.

17

D127382

SAFETY BELT

SAFETY BELT, Support to seat, 9-3/8" (238 mm) long

2шт.

18

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

4шт.

19

195-105

WASHER,7/16"

- flat, , plated 7/16"

4шт.

20

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

21

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

2шт.

22

D135623

SAFETY BELT

BELT - seat, 2" (51 mm) wide, with retractor, if used

1шт.

23

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

24

495-11047

WASHER,7/16", SAE

4шт.

25

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

26

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

27

D150010

SAFETY BELT

BELT - seat, 3 inch (76 mm), if used

1шт.
