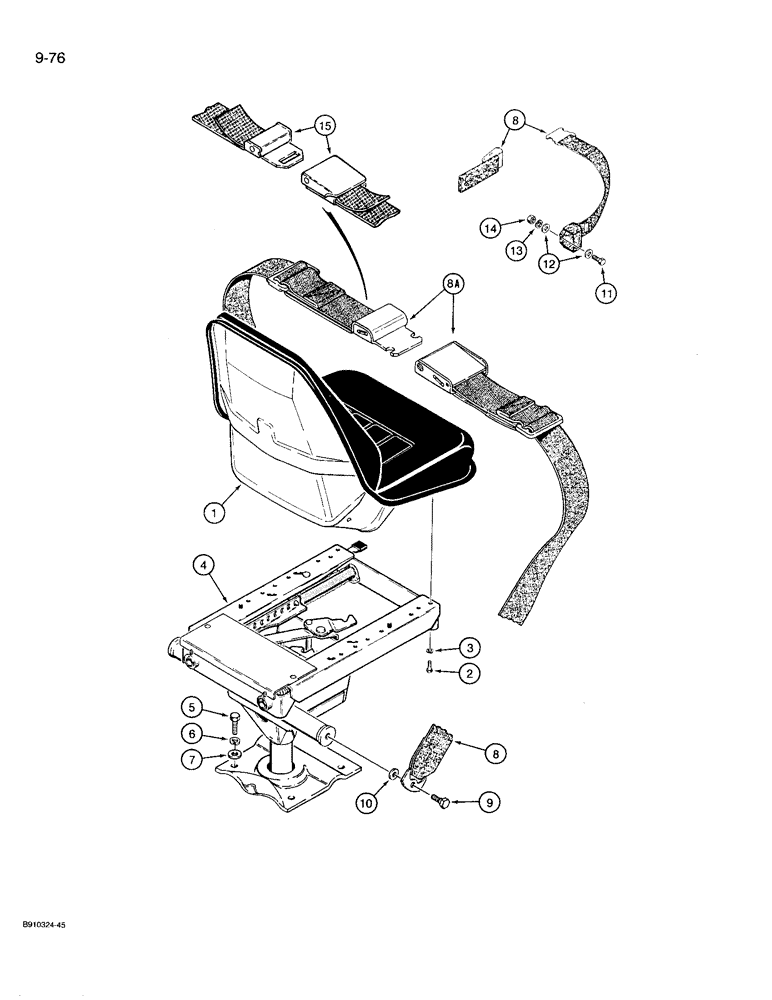

Запчасти Case 780D (9-076) - STANDARD SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D123196

SEAT ASSY.

SEAT ASSEMBLY - standard, parts list Figure 9-80

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

4

D147652

PEDESTAL

SUPPORT ASSEMBLY - standard seat, with tube for seat belt mounting, parts list Figure 9-84 (replaces D124104 support)

1шт.

5

113-2441

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

7

195-106

WASHER,1/2"

- flat, , plated 1/2"

4шт.

8

D135623

SAFETY BELT

BELT - seat, 2" (51 mm) wide, with retractor, if used

1шт.

8a

D83760

SAFETY BELT

BELT - seat, 3" (76 mm) wide, if used, no longer available, order Ref. 15, D150007 seat belt

1шт.

9

F42236

STEP BOLT

BOLT - special

2шт.

10

25846R1

WASHER

- flat, 7/16", hardened, plated

2шт.

11

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

12

495-11047

WASHER,7/16", SAE

4шт.

13

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

14

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

15

D150007

SAFETY BELT

BELT - seat, 3 inch (76 mm) wide, if used

1шт.
