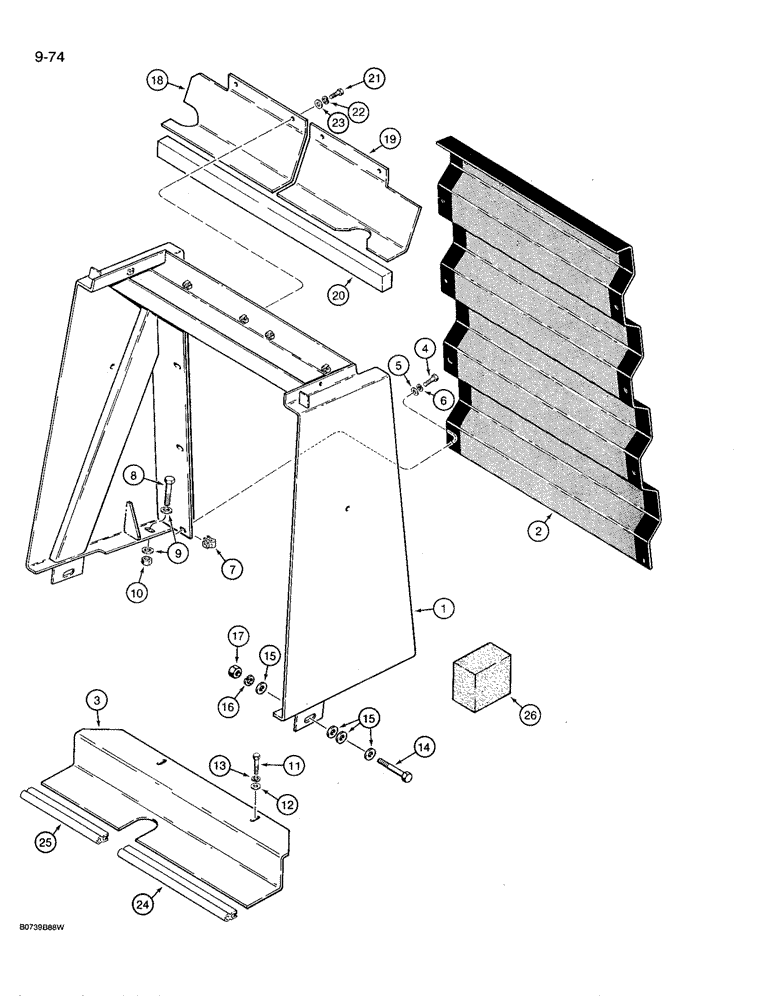

Запчасти Case 780D (9-074) - RADIATOR GUARD AND GRILLE (09) - CHASSIS/ATTACHMENTS

1

D140880

GUARD ASSY.

GUARD - radiator

1шт.

2

L102717

GRILLE ASSY

GRILLE - radiator guard

1шт.

3

D141797

BAFFLE

- lower

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

5

195-104

WASHER,3/8"

- flat, , plated 3/8"

8шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

7

131-851

SPRING NUT,Ret, J, 3/8"-16

8шт.

8

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

9

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - 5/8", hardened

4шт.

10

129-107

NUT,5/8"-11, G5

2шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

15

195-108

WASHER,5/8"

- flat, , plated 5/8"

8шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

129-107

NUT,5/8"-11, G5

2шт.

18

D141796

BAFFLE

- upper, left-hand

1шт.

19

D141795

BAFFLE

- upper, right-hand

1шт.

20

D141799

BAFFLE - 25-5/8" (650 mm) long, upper baffles, cut to required length from D92228 bulk seal, see below

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

24

D141800

SEAL - 12-5/8" (320 mm) long, right-hand, cut to required length from F43117 seal, see below

1шт.

25

D141801

SEAL - 8-7/8" (225 mm) long, left-hand, cut to required length from F43117 seal, see below

1шт.

26

D144296

BAFFLE

- attaches to radiator guard and chassis side plate

2шт.

D92228

BAFFLE

- 35-1/2" (900 mm) x 55-1/8" (1400 mm) x 1-1/2" (38 mm) bulk

1шт.

F43117

SEAL

- 100 ft (3048 cm) long, bulk

1шт.
