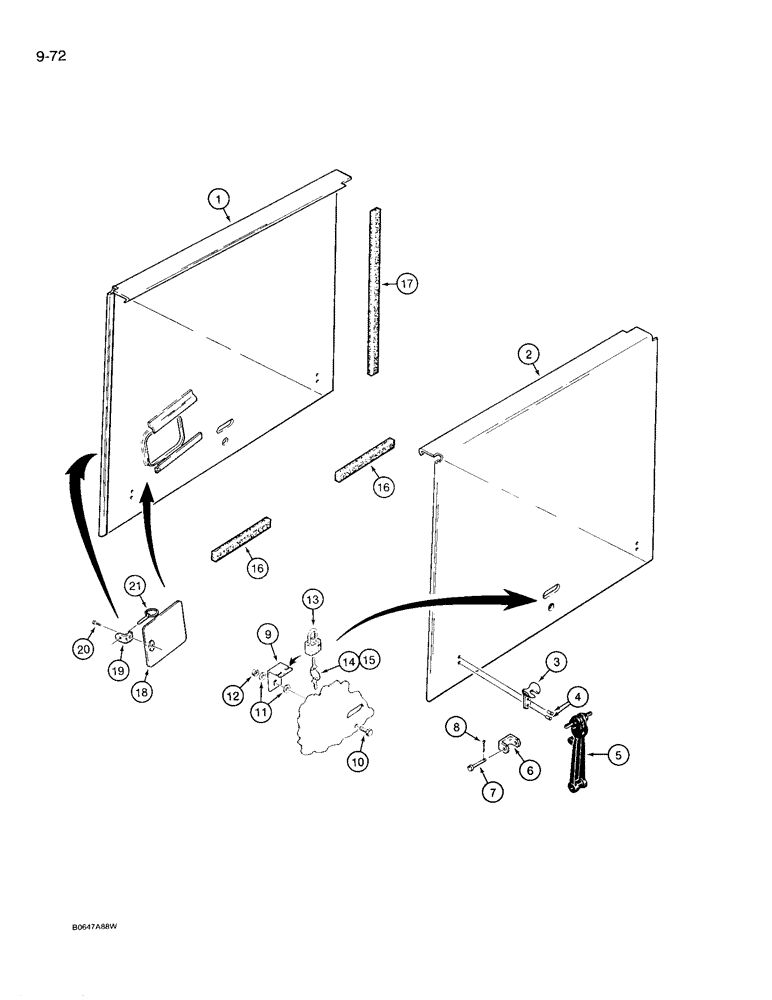

Запчасти Case 780D (9-072) - ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

D142822

PANEL ASSY.

PANEL - side, engine, left-hand

1шт.

2

L111418

PANEL ASSY.

PANEL - side, engine, right-hand

1шт.

3

L105124

LATCH HOOK

BRACKET - side panel lock

4шт.

4

151-539

RIVET,Pop, 3/16" x .450"

POP RIVET - 3/16"

8шт.

5

L105100

HOOK

- side panel

4шт.

6

L47159

BRACKET

- anchor, Serial Range: welded-chassis

4шт.

7

T11232

PIN

- hook fastener

4шт.

8

132-333

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

4шт.

9

D134608

BRACKET

- engine side panel, anti-vandalism, if used

2шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2"

2шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

12

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" - 16 NC, plated, grade 8

2шт.

13

D93753

PADLOCK

- includes keys, Includes: Ref. 14 and 15

2шт.

14

R29555

KEY

- for Master padlock only

2шт.

15

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

16

L100110

FOAM

STRIP - foam, 1" (25 mm) x 3/8" (10 mm) x 10" (254 mm) long, cut from L35756 bulk strip, see below

4шт.

17

L105861

FOAM

STRIP - foam, 1" (25 mm) x 3/8" (10 mm) x 29" (737 mm) long, cut from L35756 bulk strip, see below

2шт.

18

D142834

DOOR ASSY.

DOOR - access

1шт.

19

D142294

BRACKET

- access door

1шт.

20

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

21

A30338

PIN

- lock

1шт.

L35756

SEALING STRIP

STRIP - bulk, 1" (25 mm) x 3/8" (10 mm) x 50 ft (1524 cm) long

1шт.
