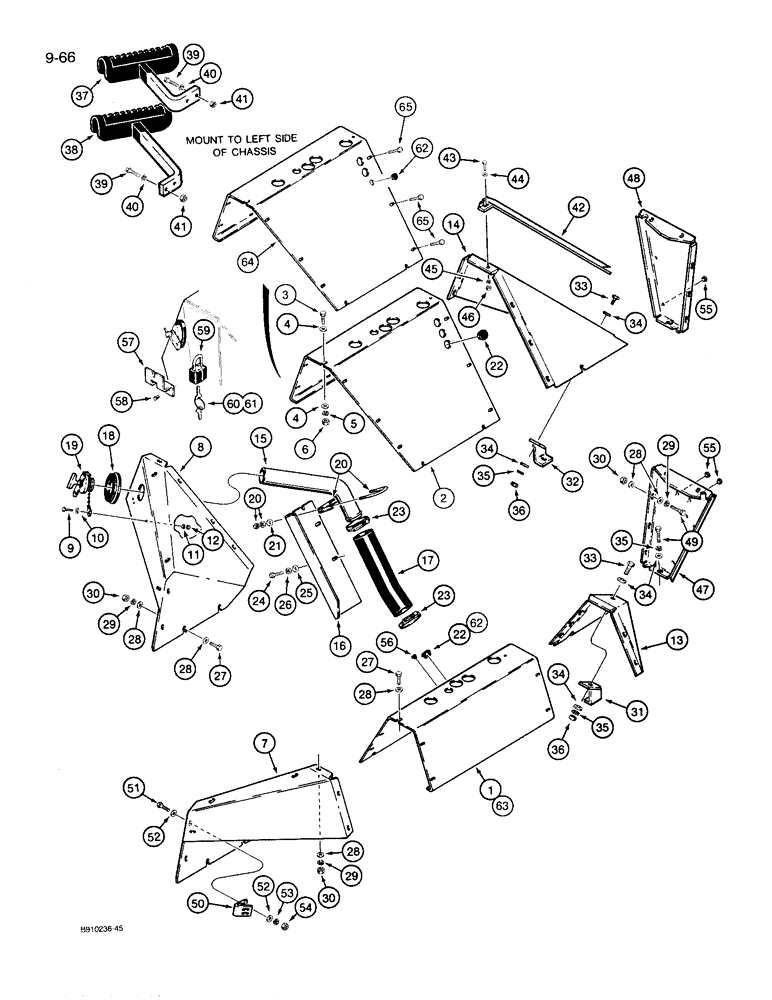

Запчасти Case 780D (9-066) - FENDERS AND STEPS (09) - CHASSIS/ATTACHMENTS

1

L108234

FENDER

- rear, right-hand, uses Ref. 22, 1-1/4 inch plug in lower hole on fender, no longer available, order Ref. 63, D147101 fender and Ref. 62, 11/16 inch plug, if used

1шт.

2

L108235

FENDER

- rear, left-hand, uses Ref. 22, 1-1/4 inch plug in lower hole on fender, no longer available order Ref. 64, D147102 fender and Ref. 62, 11/16 inch plug, if used

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

11-14шт.

4

195-104

WASHER,3/8"

- flat, , plated 3/8"

28шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

14шт.

7

L108040

SHIELD

- fender, right-hand, rear

1шт.

8

L108041

SHIELD

- fender, left-hand, rear

1шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

10

195-102

WASHER,1/4"

- flat, , plated 1/4"

1шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

13

L108038

SHIELD

- fender, right-hand, front

1шт.

14

L109273

SHIELD

- fender, left-hand, front

1шт.

15

L103294

FUEL TUBE,2.5" OD x 17.2, 5.65" L

TUBE - fuel filler

1шт.

16

L108265

COVER ASSY

COVER - fuel filler hose

1шт.

17

S86222

FUEL HOSE

HOSE - tank to filler neck

1шт.

18

L101489

GROMMET

- filler neck

1шт.

19

L108279

PLUG

CAP - filler, with chain fastener

1шт.

20

A13240

CLAMP,2-5/8" ID

- support, includes (2) 92-5 lock washers and (2) 25-105 nuts

1шт.

21

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

22

353-422

PLUG,Dome, 1.250" hole, Nylon

Used on models without heater or air conditioning Dome, 1.250" hole, Nylon

2-4шт.

23

214-177

CLIP

CLAMP - hose

2шт.

24

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

25

195-106

WASHER,1/2"

- flat, , plated 1/2"

2шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

22шт.

28

195-104

WASHER,3/8"

- flat, , plated 3/8"

57шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

30шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

28шт.

31

L103836

SUPPORT ASSY.

SUPPORT - front shield, right-hand

1шт.

32

L103837

SUPPORT ASSY.

SUPPORT - front shield, left-hand

1шт.

33

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

34

195-104

WASHER,3/8"

- flat, , plated 3/8"

10шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

37

D141287

STEP

- upper

1шт.

38

L102994

STEP

- lower

1шт.

39

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

40

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

41

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

42

D146610

ANGLE

STRIP - door frame, cab models, replaces L108090 strip

1шт.

D146610 door frame strip - Mod program NLB MP 02592 advised of a possible sharp edge on the L108090 door frame strip. Mod program required dlrs to modify all affected 680/780 units by ordering 110668A1 mod kit.The kit included 110653A1 quick edge, 110670A1 loctite, and instructions. Dealers were to loctite the quick edge to the L108090 door frame strip. L108090 now subs to D146610 which has rolled edges to eliminate the problem.

1шт.

43

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Cab models Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

44

195-103

WASHER,5/16"

- flat, , plated, cab models 5/16"

4шт.

45

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Cab models 5/16"

4шт.

46

9635082

NUT,5/16" - 18, Gr 5

Cab models 5/16"-18, G5

4шт.

47

D147099

PANEL, SIDE

PANEL - right-hand, front, cab models

1шт.

48

D147100

PANEL, SIDE

PANEL - left-hand, front, cab models

1шт.

49

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

50

L104868

BRACKET

- shield anchor, canopy models

2шт.

51

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

52

195-104

WASHER,3/8"

- flat, , plated 3/8"

8шт.

53

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

54

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

55

353-402

PLUG,Dome, .375" hole, Nylon

(10 mm), Used on models without cold start system and without air conditioning Dome, .375" hole, Nylon

6шт.

56

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

57

L105960

BRACKET

- fuel filler cap lock, anti-vandalism, if used

1шт.

58

151-522

RIVET,Pop, 3/16" x .575"

- pop, 3/16", filler cap bracket

2шт.

59

D93753

PADLOCK

- includes keys, Includes: Ref. 60 and 61

1шт.

60

R29555

KEY

- for Master padlock only

2шт.

61

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

62

353-407

PLUG,Dome, .687" hole, Nylon

- nylon, 11/16 inch, used on models without heater or air conditioning

2шт.

63

D147101

FENDER ASSY.

FENDER - rear, right-hand, uses Ref. 62, 11/16 inch plug in lower hole

1шт.

64

D147102

FENDER

- rear, left-hand, uses Ref. 62, 11/16 inch plug in lower hole

1шт.

65

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, use with Ref. 64, D147102 fender

3шт.
