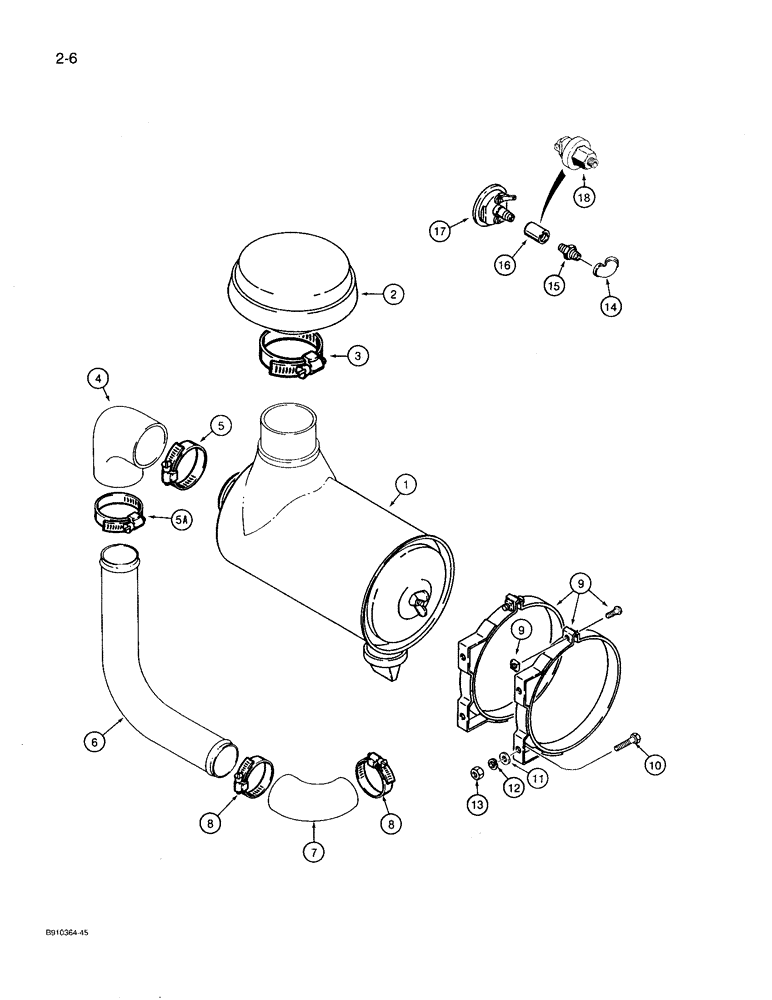

Запчасти Case 780D (2-06) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

A173852

FILTER ASSY

CLEANER ASSEMBLY - air, engine, parts list Figure 2-8

1шт.

2

L10659

CAP

- air cleaner, Includes: Ref. 3

1шт.

3

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - cap

1шт.

4

S112515

ELBOW

- 90 degree, reducing, at air cleaner

1шт.

5

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - elbow to air cleaner

1шт.

5a

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - elbow to hose

1шт.

6

D139437

TUBE

HOSE - air, Serial Range: cleaner-engine

1шт.

7

L110814

ELBOW

- 90 degree, reducing, at engine

1шт.

8

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - elbow to engine

2шт.

9

A149780

BAND

- air cleaner mounting, includes hardware

2шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

11

195-525

WASHER,3/8", SAE

- flat, 3/8 inch

4шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

14

221-365

ELBOW,45 Degree, 1/8" NPT

- 45 degree, air cleaner

1шт.

15

D36264

FITTING

- filter, air restriction indicator, if used

1шт.

16

221-1335

COUPLING,Pipe, 1/8" NPT

if used Pipe, 1/8" NPT

1шт.

17

L103131

INDICATOR

SENDER - air filter restriction indicator, if used

1шт.

18

1983233C1

RESTRICTION SWITCH

SENDER - air filter restriction indicator switch, replaces Ref. 15, 16, and 17 shown above

1шт.

A171342

PRECLEANER

1шт.

277377R1

FILTER BOWL

BOWL

1шт.

A42485

LINING

COVER

1шт.

NSS

NOT SOLD SEPARAT

BODY

1шт.
