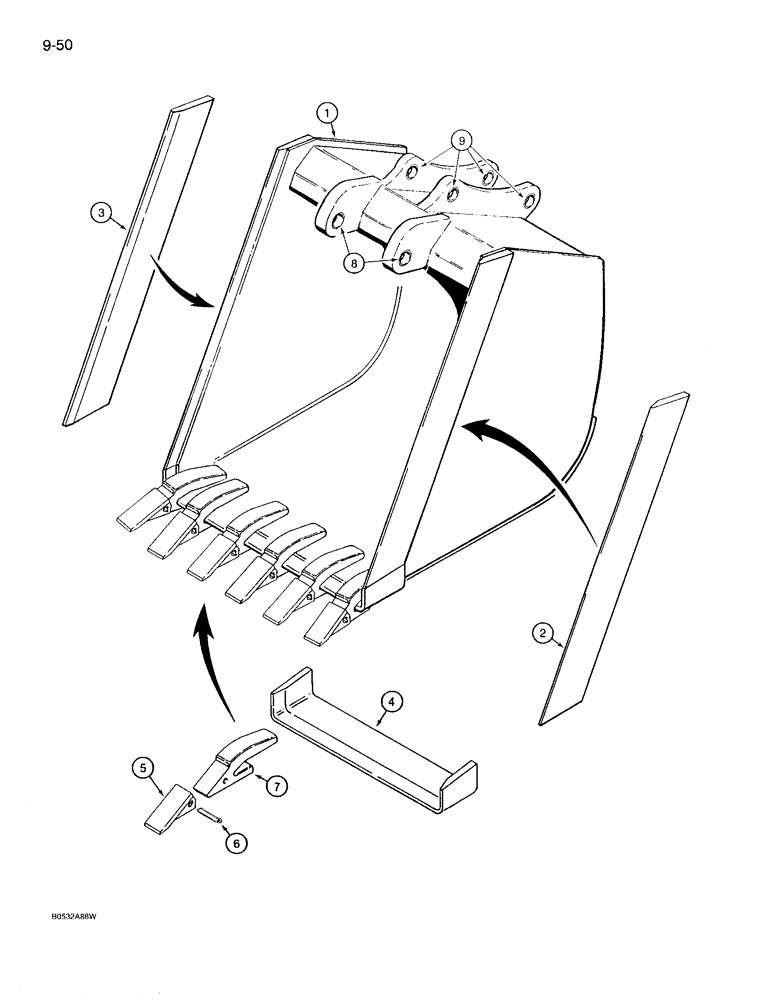

Запчасти Case 780D (9-050) - BACKHOE BUCKET, 36" TRENCHING BUCKET - STANDARD DUTY (09) - CHASSIS/ATTACHMENTS

1

D138071

BUCKET

ASSEMBLY - 36" (914 mm) machinery item, order from the Machinery Price List, Includes: Ref. 2 - 9

1шт.

2

D138062

EDGE

- cutting, bucket, right-hand side

1шт.

3

D138063

EDGE

- cutting, bucket, left-hand side

1шт.

4

D138066

EDGE

- cutting, center

1шт.

D140481

TOOTH ASEMBLY - bucket, not serviced as an assembly, order Ref. 5 - 7

6шт.

5

D55468

TOOTH

- tooth

1шт.

6

L32090

PIN

PIN - flex

1шт.

7

D129197

SHANK

- tooth

1шт.

8

D43508

BUSHING

- bucket, 2" ID x 2-1/2" O.D.

2шт.

9

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, 1-3/4" ID x 2-1/4" O.D.

4шт.
