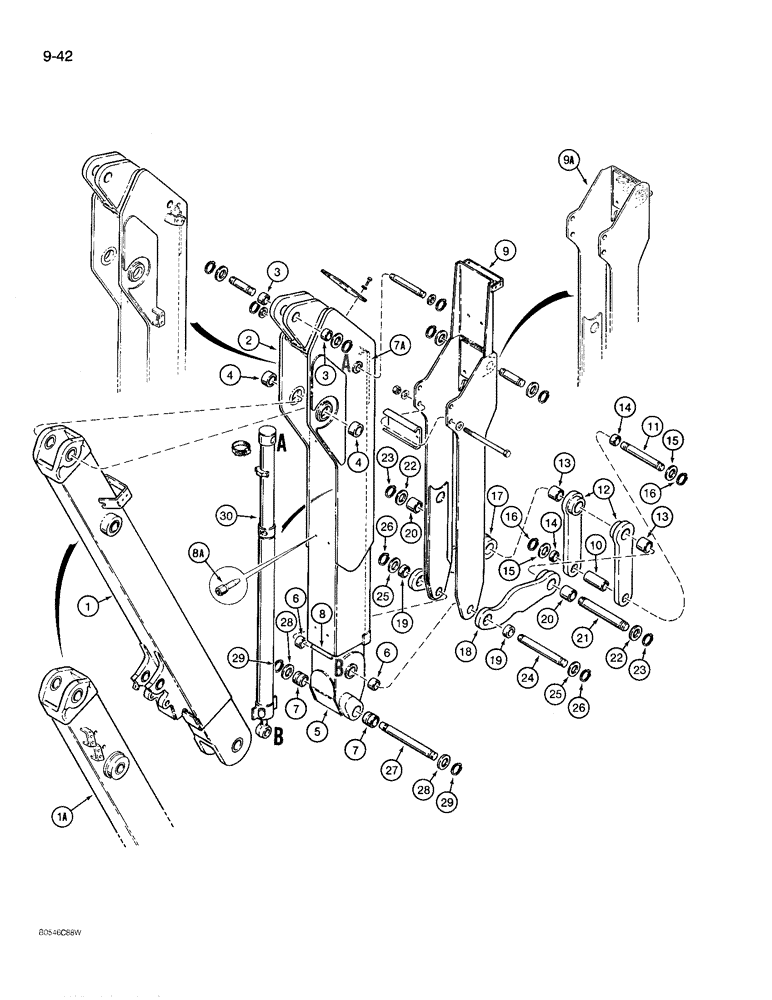

Запчасти Case 780D (9-042) - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

D137873

BOOM

ASSEMBLY - backhoe, see Figure 9-36 for bushings, Serial Range: -JJG0071751

1шт.

1a

D144869

BOOM

ASSEMBLY - backhoe, see Figure 9-36 for bushings, Start Serial: JJG0071751

1шт.

D140441

EXTENDABLE DIPPER ASSEMBLY - complete, Includes: Ref. 2 - 8, Serial Range: -JJG0071751

1шт.

See Fig. 9-44 for extendable dipper assembly used on P.I.N. JJG0071751 and after.

1шт.

2

D140434

DIPPER

- extendable, Includes: Ref. 3 and 4

1шт.

3

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- ear

2шт.

4

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- at boom mounting

2шт.

5

D140438

DIPPER

EXTENSION - dipper arm, inner, Includes: Ref. 6 - 7A

1шт.

6

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- guide link

2шт.

7

L79365

BUSHING

- bucket mounting

2шт.

7a

L102321

WEAR PLATE

PLATE - wear, welded to upper front side of inner extension

1шт.

8

L102211

WEAR PLATE

PLATE - wear, inner

1шт.

8a

D134699

NOZZLE CAP

NOZZLE - lubrication fitting

1шт.

9

D141526

SLIDER

- dipper, bucket cylinder, Serial Range: -JJG0071751

1шт.

9a

D144867

SLIDER

- dipper, bucket cylinder, Start Serial: JJG0071751

1шт.

10

L101577

SPACER

- link, backhoe bucket

1шт.

11

L101371

PIN

- link, backhoe bucket

1шт.

12

L104474

LINK

- backhoe bucket to cylinder, Includes: Ref. 13 and 14

2шт.

13

L78951

BUSHING

- link

1шт.

14

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- link

1шт.

15

195-2176

WASHER,1 13/16" x 2 1/2" x .109"

- flat, special

1шт.

16

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

17

L104477

LINK ASSY.

LINK - bucket guide, left-hand

1шт.

18

L104476

LINK

- bucket guide, right-hand, Includes: Ref. 19 and 20

1шт.

19

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- L104476 or L104477 link

1шт.

20

R28235

BUSHING

- L104476 or L104477 link

1шт.

21

L104573

PIN

- bucket cylinder to guide link

1шт.

22

195-2178

WASHER,2 5/16" x 3" x .134"

- flat, special

1шт.

23

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

2шт.

24

L101365

PIN

- guide, Serial Range: link-dipper

1шт.

25

195-2168

WASHER,2 1/16" x 3" x .109"

- flat, special

1шт.

26

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

27

L113844

PIN

-, Serial Range: bucket-dipper

1шт.

28

195-2168

WASHER,2 1/16" x 3" x .109"

- flat, special

1шт.

29

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

30

REF

INSTRUCTION

CYLINDER ASSEMBLY - dipper extension, for correct assembly and components, see Figure 8-118 - 8-122

1шт.
