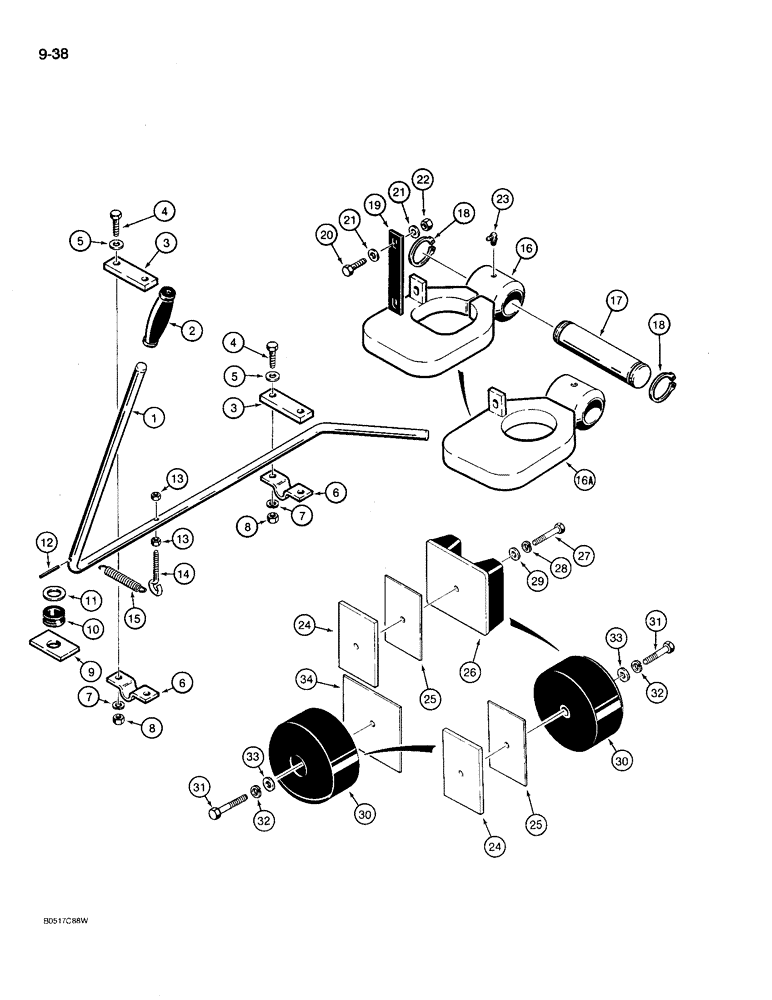

Запчасти Case 780D (9-038) - BOOM LATCH (09) - CHASSIS/ATTACHMENTS

1

D139194

ROD

LEVER - boom latch

1шт.

2

L52477

GRIP

- lever, boom latch

1шт.

3

L57268

BAR

- lock mounting

2шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

5

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

6

L103258

RETAINER

- lever

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

9

L103350

PLATE ASSY.

PLATE - cover, special

1шт.

10

T28755

GROMMET,5/8" ID x 7/8" Groove Dia

- handle

1шт.

11

195-545

WASHER,3/4", SAE

- flat, 3/4", plated

1шт.

12

138-323

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, 1/8" x 1 3/4", Slotted

1шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

14

C10792

BOLT (SPREADER)

EYEBOLT - 1/4" - 20 NC

1шт.

15

L50735

VALVE SPRING

SPRING - eyebolt

1шт.

16

D140191

RING

LATCH - boom, if used

1шт.

16a

D148428

RING

LATCH - boom, if used

1шт.

17

D42611

PIN

- boom, Serial Range: latch-boom

1шт.

18

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

19

L73300

STRAP

- boom lock

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

22

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" - 16 NC, grade 8, plated

2шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

1шт.

24

D140833

SHIM,6mm Thk

(1/4"), Boom stop, if used 6mm Thk

1шт.

25

D136538

SHIM,1.6mm Thk

(1/16"), Boom stop, if used 1.6mm Thk

1шт.

26

D90990

GUARD

BUMPER - boom stop, uses 3/8 inch hardware, Ref. 27-29

1шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

1шт.

29

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, if used

1шт.

30

D144072

BUMPER

- boom stop, uses 1/2 inch hardware, Ref. 31-33

1шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

33

495-11053

WASHER,1/2", SAE

1шт.

34

D148424

SHIM,1.6mm Thk

Used with item 30 bumper 1.6mm Thk

1шт.
