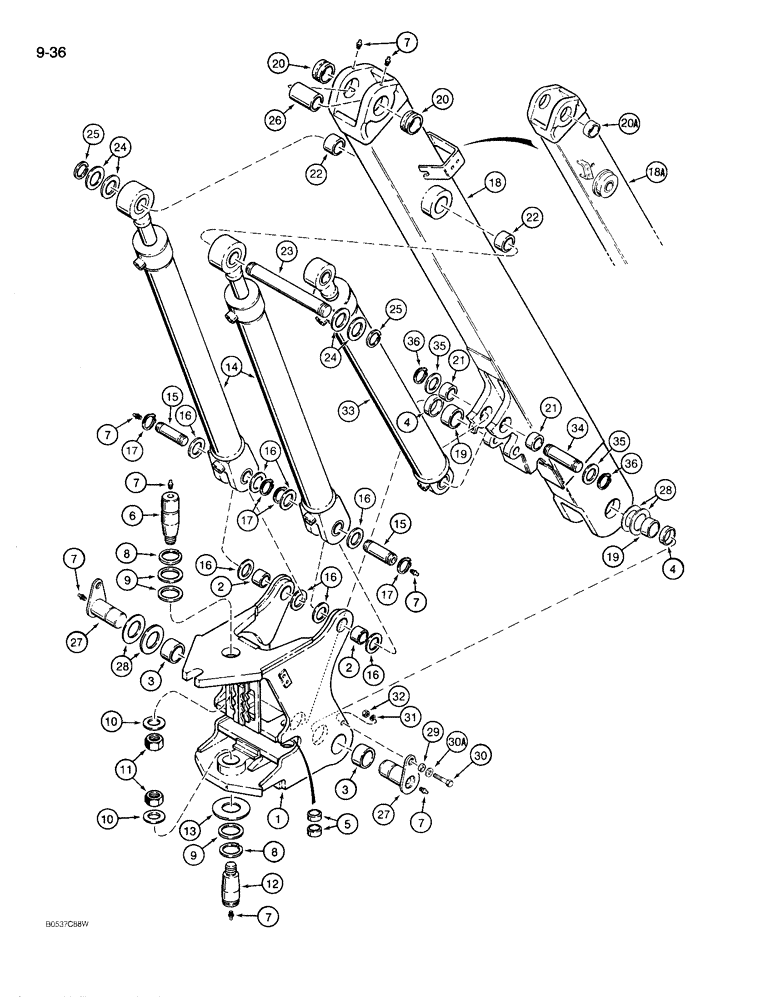

Запчасти Case 780D (9-036) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

D142621

CASING

SWING TOWER ASSEMBLY - backhoe, Includes: Ref. 2 - 5

1шт.

2

D43508

BUSHING

- at boom cylinders

2шт.

3

D137189

BUSHING

- outer, at boom

2шт.

4

D137195

BUSHING

- inner, at boom

2шт.

5

G33061

BUSHING

- at swing cylinder

4шт.

6

L102303

PIN

- tower mounting, upper

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

8шт.

8

L16016

RING

- retaining, pin, no longer used, not required

2шт.

9

L45001

WASHER

- special, shim, no longer used, not required

1шт.

10

L107223

WASHER

- 2", special, used with hex nut

2шт.

11

25-1532

JAM NUT,Jam, 2"-12, G5

- hex, jam, 2" - 12 NF

2шт.

12

L102304

PIN

- tower mounting, lower

1шт.

13

L70236

BEARING WASHER

WASHER - bearing, special

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, for correct assembly and components, see Figures 8-110 and 8-112

2шт.

15

L105882

PIN

- boom cylinder to swing tower

2шт.

16

195-2168

WASHER,2 1/16" x 3" x .109"

- flat, special, pin, boom cylinder to swing tower

1шт.

17

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

18

D137873

BOOM

ASSEMBLY - backhoe, Serial Range: -JJG0071751

1шт.

Part of Boom Crosstube Kit P/N D104084

1шт.

18a

D144868

BOOM

ASSEMBLY - backhoe , Includes: Ref. 19 - 22, Start Serial: JJG0071751

1шт.

See Fig. 9-42 for boom used on models with extendable dipper.

1шт.

19

D137810

BUSHING

- boom, tower end

2шт.

20

L106645

BUSHING

- D137873 boom, dipper end

2шт.

20a

D147090

BUSHING

- D144868 boom above or D144869 boom on Figure 9-42 (Ref. 1A), dipper end

2шт.

21

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at dipper cylinder mounting

2шт.

22

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- at boom cylinder mounting

2шт.

23

L101374

PIN

- boom, Serial Range: cylinder-boom

1шт.

24

195-2167

WASHER,2 5/8" x 4" x .109"

- flat, 2-1/2", special, used as a spacer

4шт.

25

L16015

RING

- retaining, pin

2шт.

26

L103865

SPACER

- boom end casting, upper, 2-3/4" diameter

1шт.

27

D137231

PIN

- boom to swing tower

2шт.

28

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

- special, boom to swing tower

1шт.

29

D132045

SPACER,20mm ID x 31.75mm OD x 12mm L

- pin

2шт.

30

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5, Boom pin to swing tower

2шт.

30a

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, hardened

2шт.

31

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

32

129-108

NUT,3/4"-10, G5

2шт.

33

G103050

CYLINDER

ASSEMBLY - dipper, parts list Figure 8-114

1шт.

34

L54437

AXLE PIN

PIN - dipper, Serial Range: cylinder-boom

1шт.

35

195-2168

WASHER,2 1/16" x 3" x .109"

- flat, special, dipper cylinder to boom

1шт.

36

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

D104084

KIT

- boom crosstube, Includes: Ref. 18, and two reinforcement rings and instructions

1шт.
