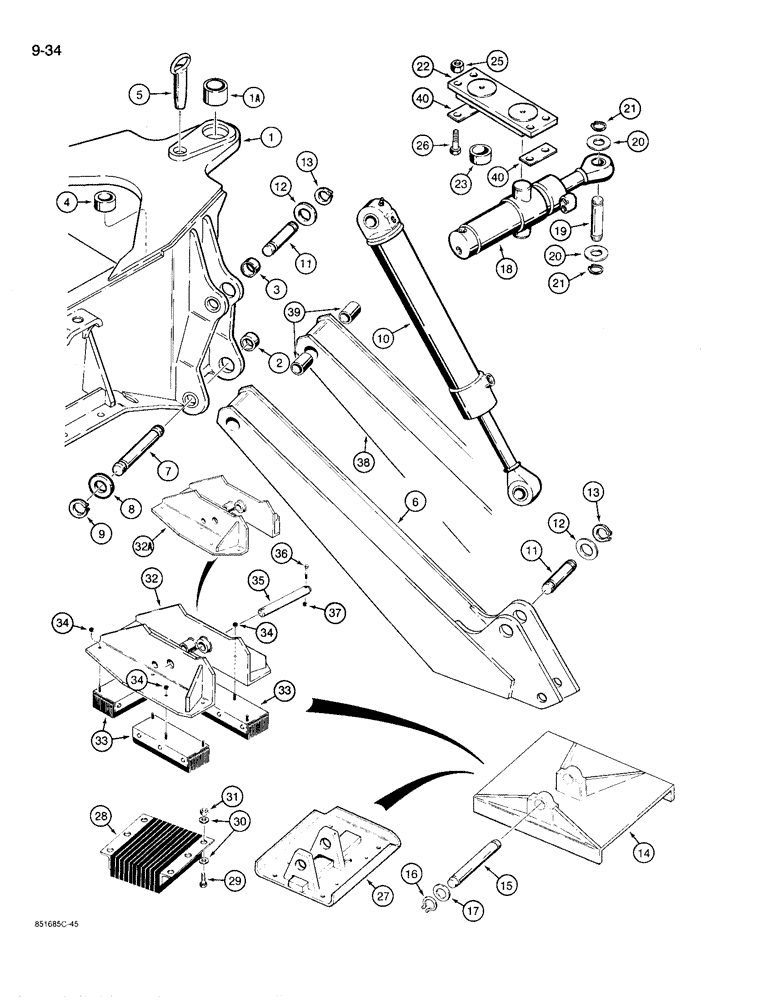

Запчасти Case 780D (9-034) - BACKHOE MOUNTING FRAME AND STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

D141082

CHASSIS

ASSEMBLY - frame, parts list Figure 9-56, Includes: Ref. 1A - 4

1шт.

1a

L102293

BUSHING

- upper, swing tower mounting

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- stabilizer, Serial Range: leg-frame

4шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- stabilizer, Serial Range: cylinder-frame

4шт.

4

D137256

BUSHING

- swing cylinder, pivot, lower

2шт.

5

L70598

AXLE PIN

PIN - swing tower lock

1шт.

6

D133302

STABILIZER

LEG - stabilizer, without bushings, no longer available, order D143759 stabilizer leg, Ref. 38

2шт.

7

L103135

PIN

- stabilizer, Serial Range: leg-chassis

2шт.

8

195-2168

WASHER,2 1/16" x 3" x .109"

- flat, special, used as a spacer

1шт.

9

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

10

G103057

CYLINDER ASSY.

CYLINDER ASSEMBLY - stabilizer, parts list Figure 8-106

2шт.

11

D25079

AXLE PIN,44.45mm OD x 157.2mm L

PIN - stabilizer cylinder to stabilizer leg and frame

4шт.

12

195-2176

WASHER,1 13/16" x 2 1/2" x .109"

- flat, special

1шт.

13

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

8шт.

14

L110512

PAD

PLATE - stabilizer, original equipment, cast type

2шт.

15

L71043

AXLE PIN

PIN -, Serial Range: stabilizer-plate

2шт.

16

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

17

195-2138

WASHER,1 17/32" x 2 1/16" x .109"

- flat, special, used as a spacer

1шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY - swing, for correct assembly and components, see Figure 8-108

2шт.

19

D25079

AXLE PIN,44.45mm OD x 157.2mm L

PIN - swing, Serial Range: cylinder-tower

2шт.

20

T15465

WASHER

- special

4шт.

21

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

22

D143398

PLATE

- swing cylinder mounting, Includes: Ref. 23

1шт.

23

D137256

BUSHING

- plate

2шт.

25

129-110

NUT,1"-8, G5

4шт.

26

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

27

L78070

PLATE ASSY.

FOOT - cemetery and street, if used

2шт.

28

D61368

PAD

Rubber, bolt on, street and cemetery plate, if used

2шт.

29

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, if used

8шт.

30

495-21069

WASHER,5/8"

- flat, 5/8 inch, if used

16шт.

31

425-1010

NUT,5/8"-11, G5

If used 5/8"-11, G5

8шт.

32

D143479

PAD

PLATE - stabilizer flip over, Category III, order Ref. 33-37 separately, no longer used, order D150441 plate assembly

2шт.

D150441

PLATE ASSEMBLY - stabilizer flip over, Category III, Includes: Ref. 32A - 37

2шт.

Flip over plate Assy. - Not available as assembly. Order as primes.

1шт.

32a

D150442

PAD

PLATE - stabilizer flip over

1шт.

33

D142314

SKID/SHOE

PAD - rubber

3шт.

34

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC

9шт.

35

D143478

PIN

- D143479 plate to stabilizer leg

1шт.

36

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

37

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

38

D143759

STABILIZER

LEG - stabilizer, with bushings, Includes: Ref. 39

2шт.

39

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- pivot

2шт.

40

D145141

SHIM,0.8mm Thk

Swing cylinder mounting 0.8mm Thk

1шт.
