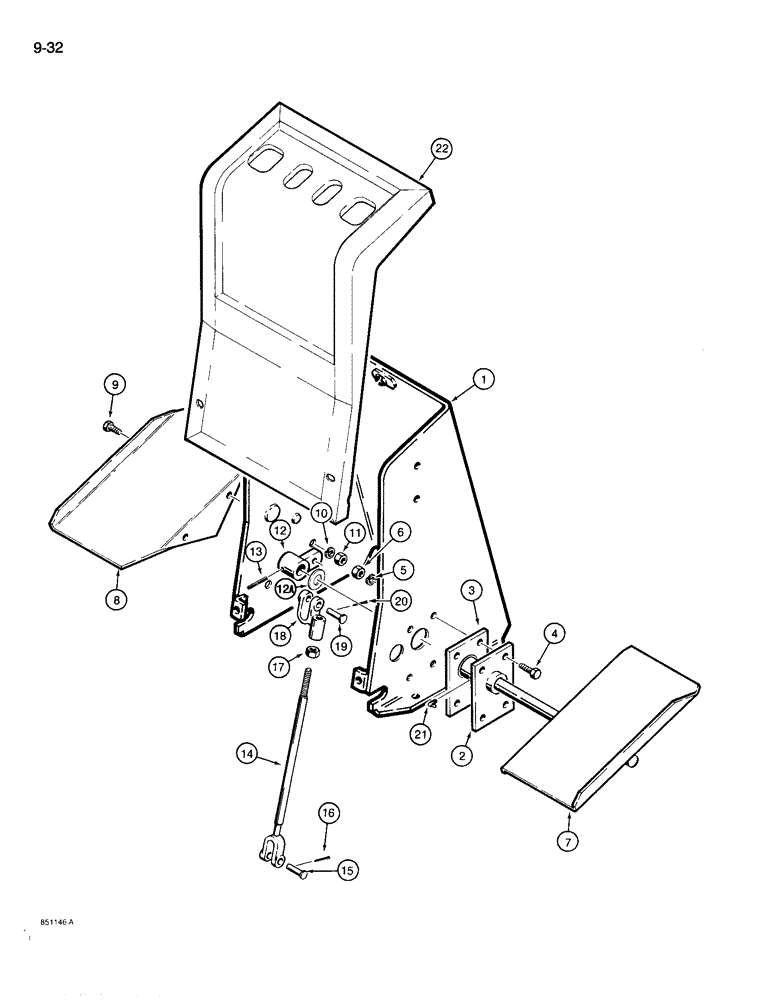

Запчасти Case 780D (9-032) - BACKHOE EXTENDABLE DIPPER CONTROL, HAND SWING MODELS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

TOWER - control, backhoe, see Figure 9-20

1шт.

2

D87854

BRACKET

SUPPORT - pedal

1шт.

3

L105510

PLATE ASSY.

PLATE - spacer

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

7

D87866

PEDAL

- extendable dipper control

1шт.

8

D87863

PLATFORM

- left-hand

1шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

D87860

LEVER

- pivot

1шт.

12a

195-545

WASHER,3/4", SAE

- flat, 3/4", plated, used as a spacer

1шт.

13

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

14

L108557

ROD

- extendable dipper control

1шт.

15

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

16

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

17

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8" - 24 NF, plated

1шт.

18

L11182

YOKE,3/8" - 24

CLEVIS - 3/8", offset, rod end

1шт.

19

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

20

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

21

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degree, 1/8" NPT

1шт.

22

REF

INSTRUCTION

COVER - control tower, see Figure 9-20

1шт.
