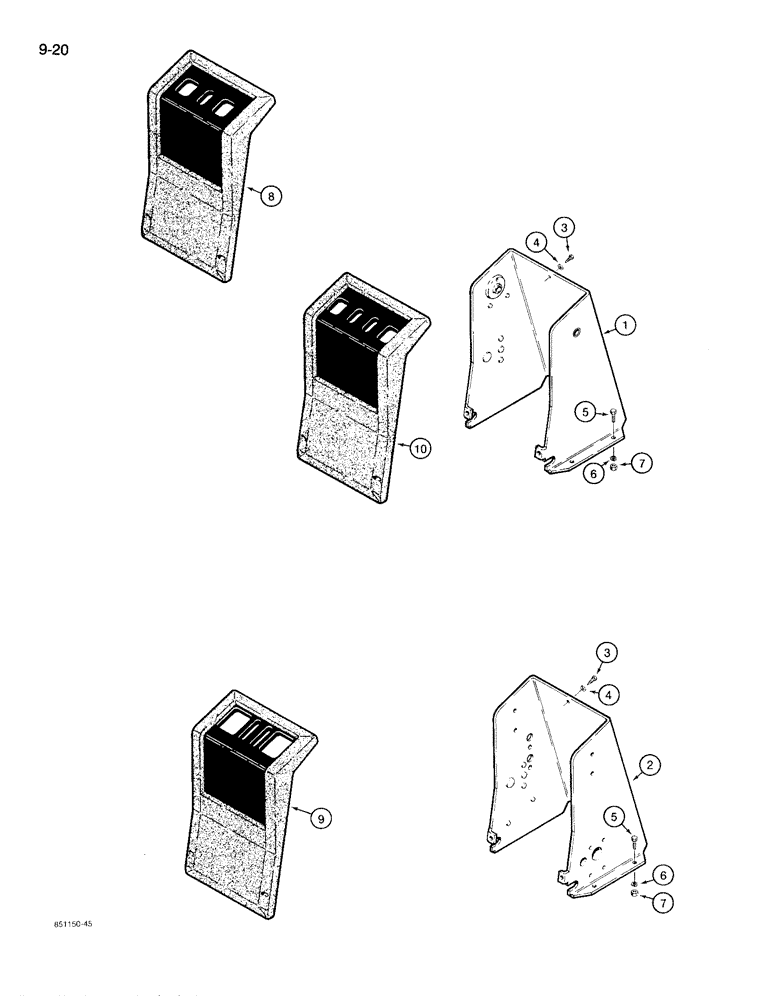

Запчасти Case 780D (9-020) - BACKHOE CONTROL TOWER (09) - CHASSIS/ATTACHMENTS

1

D123189

CONTROL BLOCK

TOWER - control, backhoe, used with foot swing, if used

1шт.

2

L111602

BRACKET

TOWER - control, backhoe, used with hand swing, if used

1шт.

3

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - hex washer, self-tapping, 1/4 NC x 3/4 inch

3шт.

4

195-102

WASHER,1/4"

- flat, , plated 1/4"

3шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

8

D124081

COVER ASSY

COVER - control tower, used on models with foot swing, without extendable dipper, includes decals, see Ref. 2, 3, 4, and 54 on Figures 9-134 and 9-136 for decals

1шт.

9

D124080

COVER ASSY

COVER - control tower, used on models with hand swing, with or without extendable dipper, includes decals, see Ref. 4, 48, 49, and 54 on Figures 9-134 and 9-136 for decals

1шт.

10

D124082

COVER

- control tower, used on models with foot swing, with extendable dipper, includes decals, see Ref. 4, 42, 43, and 54 on Figures 9-134 and 9-136 for decals

1шт.
