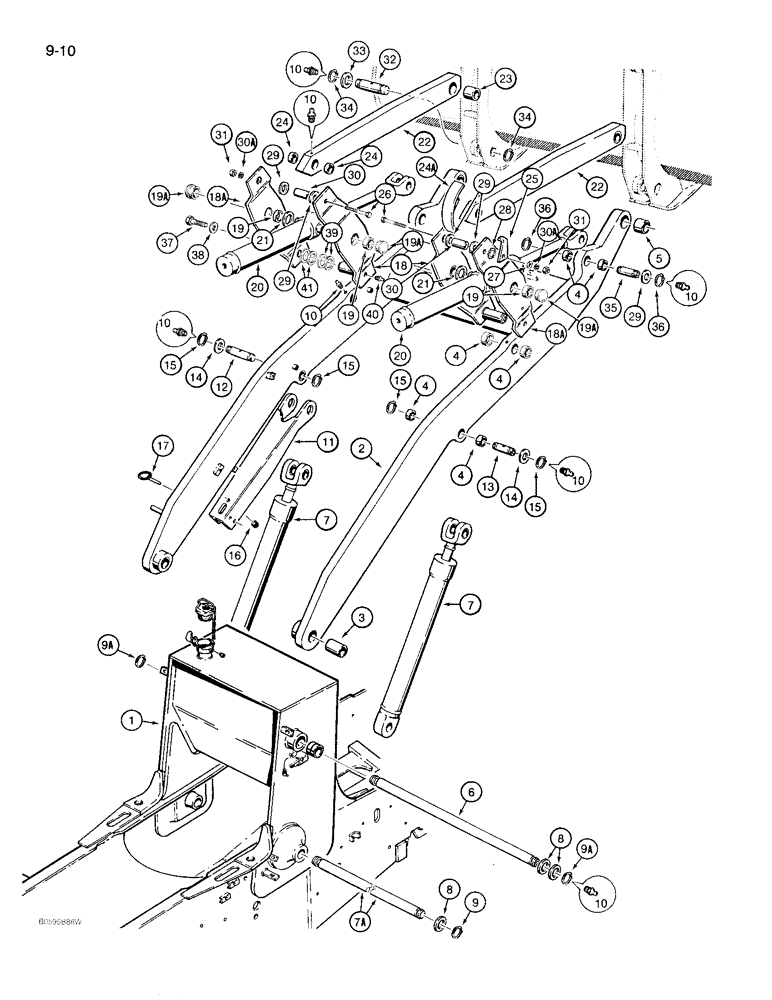

Запчасти Case 780D (9-010) - LOADER LIFT FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D141082

CHASSIS

ASSEMBLY - parts list Figure 9-56

1шт.

2

D143819

ARM

FRAME ASSEMBLY - loader lift, Includes: Ref. 3 - 5

1шт.

3

L104381

BUSHING

- lift frame at chassis

2шт.

4

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- at lift cylinders, bucket linkage, and bucket cylinder

12шт.

5

L71372

BUSHING,51.03mm ID x 63.65mm OD x 44.45mm L

- lift frame at bucket

2шт.

6

D129491

SHAFT

PIN - pivot, lift frame

1шт.

7

G103073

CYLINDER ASSY.

CYLINDER ASSEMBLY - loader lift, parts list Figure 8-100

2шт.

7a

D141064

PIN

- pivot, lift, Serial Range: cylinder-chassis

2шт.

8

195-2178

WASHER,2 5/16" x 3" x .134"

- flat, 2-1/4" ID x 3-1/2" O.D.

8-10шт.

9

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

2шт.

9a

L101691

RING, SNAP

RING - snap, pin retaining

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

14шт.

11

D141755

STRUT

- support, loader frame

1шт.

12

L103585

PIN

- lift cylinder and strut to lift frame, left-hand

1шт.

13

D140361

PIN

- mounting, lift cylinder to lift frame, right-hand

1шт.

14

195-2176

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4" ID x 2-1/2" O.D.

1шт.

15

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

16

D132350

GROMMET

- rubber

1шт.

17

D120675

HITCH PIN

PIN - hitch, support strut

1шт.

18

D143826

CRANK LEVER

LINK ASSEMBLY - inner, bucket link to lift arm

2шт.

18a

D143827

CRANK LEVER

LINK ASSEMBLY - outer, bucket link to lift arm, Includes: Ref. 19 and 19A

2шт.

19

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- one per D143826 or D143827 link

1шт.

19a

NSS

NOT SOLD SEPARAT

CAP - one per link

1шт.

20

G103753

CYLINDER

ASSEMBLY - bucket tilt, parts list Figure 8-102

2шт.

21

195-2177

WASHER,48.41mm ID x 63.5mm OD x 4.06mm Thk

- flat, 1-7/8", plated, special, bucket cylinder

4шт.

22

L108268

LINK ASSY.

LINK ASSEMBLY - bucket, Includes: Ref. 23 and 24

2шт.

23

L71372

BUSHING,51.03mm ID x 63.65mm OD x 44.45mm L

- link, at bucket

1шт.

24

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link

2шт.

24a

L108411

BRACKET

- decal mounting, welded to right-hand link, see Figure 9-136 for D139863 decal

1шт.

25

L107670

LEVEL

INDICATOR - bucket

1шт.

26

26-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

- hex head, 3/4" - 10 NC x 5", grade 8

2шт.

27

196-34

WASHER - flat, 3/4 inch, hardened

1шт.

28

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

29

195-2176

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4", plated, special

1шт.

30

L101686

PIN

SPACER - link mounting

2шт.

30a

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

31

129-138

NUT,3/4"-10, G8

2шт.

32

L105080

AXLE PIN

PIN - bucket link and lift arm to bucket, models with clam bucket

4шт.

33

195-2168

WASHER,2 1/16" x 3" x .109"

- flat, 2", special

1шт.

34

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

8шт.

35

D140361

PIN

- bucket cylinder to lift frame

2шт.

36

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

37

326-16321

BOLT - hex, 1 NC x 2 inch, grade 8 (replaces 426-1632 and 26-1632)

2шт.

38

196-43

WASHER,1 1/32" x 1 11/16" x .259", HDN

- flat, hardened

2шт.

39

195-2176

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4" ID x 2-1/2" O.D.

1шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

41

195-2183

WASHER,1 13/16" x 2 1/2" x .065"

- flat, 1-13/16 ID x 2-1/2 O.D. x 1/16 inch

4шт.
