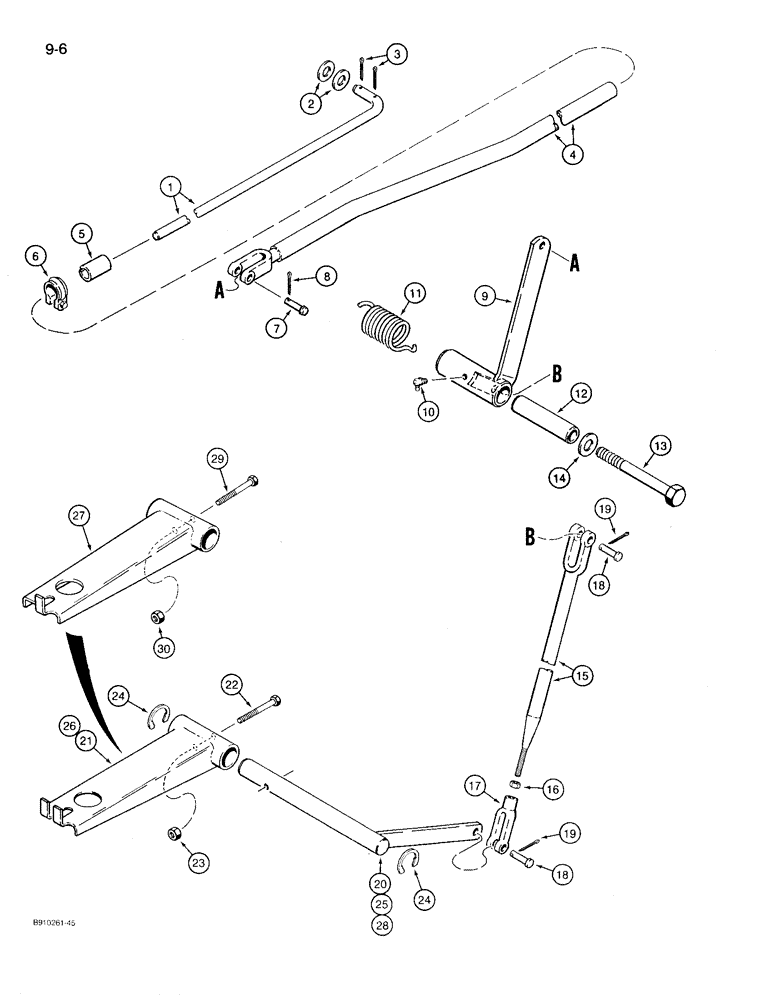

Запчасти Case 780D (9-006) - LOADER ANTIROLLBACK CONTROL (09) - CHASSIS/ATTACHMENTS

1

D133376

ROD

- antirollback

1шт.

2

495-11053

WASHER,1/2", SAE

2шт.

3

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

4

D133379

TUBE

- antirollback rod to upper pivot lever

1шт.

5

D129972

SLEEVE CYLINDER

SLEEVE - clamp

1шт.

6

D71880

CLAMP,22.23mm

- tube to rod, includes bolt, washer, and nut which are not serviced separately

1шт.

7

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

8

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

9

D141096

LEVER

- upper pivot

1шт.

10

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4" - 28 NF taper

1шт.

11

D72099

SPRING

- upper pivot

1шт.

12

D86652

SLEEVE

- upper pivot lever

1шт.

13

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

1шт.

14

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", hardened, plated

1шт.

15

D141097

ROD

- connecting, lower pivot, Serial Range: lever-bellcrank

1шт.

16

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

17

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - 3/8"

1шт.

18

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

19

132-320

COTTER PIN,3/32" x 3/4"

PIN - cotter, 3/32" x 5/8", plated

2шт.

20

D141100

CRANK

PIN - pivot, used with D141101 bellcrank, prior to tractor P.I.N. JJG0071693

1шт.

21

D141101

CRANK

BELLCRANK - antirollback control, used with D141100 pin prior to tractor P.I.N. JJG0071693

1шт.

22

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2 inch

1шт.

23

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

1шт.

24

L108524

RING

- retaining, bellcrank, used as a spacer

1шт.

25

D146122

CRANK LEVER

PIN - pivot, used with D146124 bellcrank on tractor P.I.N. JJG0071693 and after, no longer available, order D150617 bellcrank assembly, shown below

1шт.

26

D146124

CRANK LEVER

BELLCRANK - antirollback control, used with D146122 pin on tractor P.I.N. JJG0071693 and after, no longer available, order D150617 bellcrank assembly shown below

1шт.

D150617

CRANK LEVER

BELLCRANK ASSEMBLY - antirollback control, replaces Ref. 25, D146122 pin and Ref. 26, D146124 bellcrank, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

BELLCRANK - antirollback control

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - pivot

1шт.

29

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex, 7/16 NC x 2-1/4 inch

1шт.

30

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.
