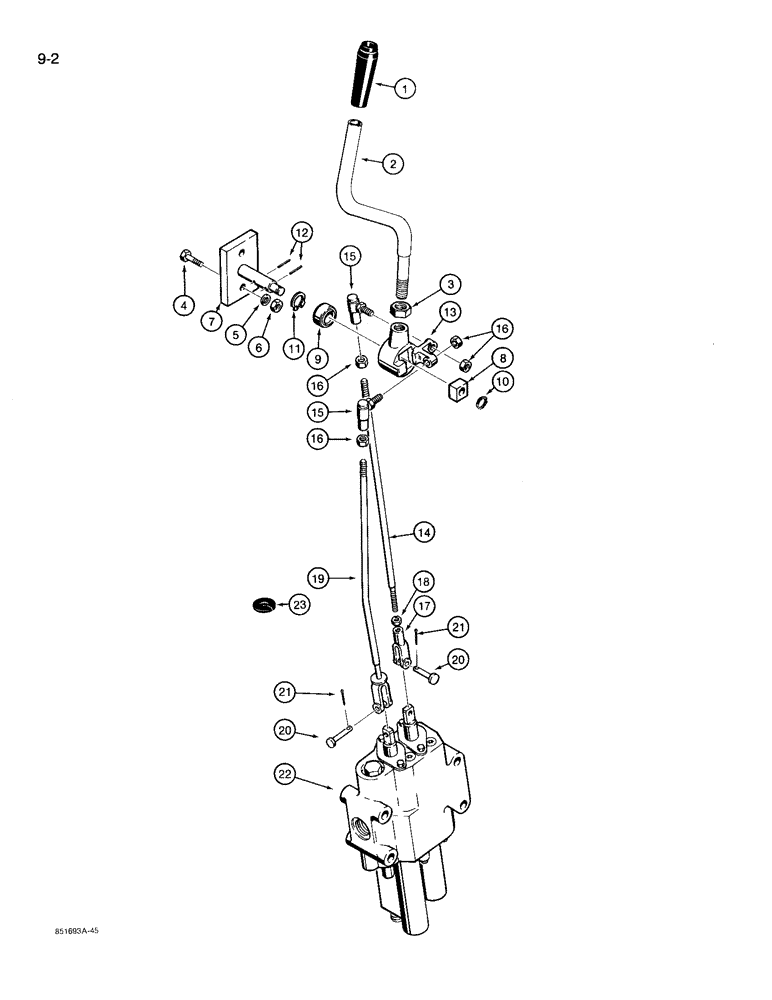

Запчасти Case 780D (9-002) - LOADER CONTROLS - LIFT AND BUCKET SPOOLS (09) - CHASSIS/ATTACHMENTS

1

D91439

TUBE

KNOB - control lever, see Figure 4-18 for hydraulic declutch switch

1шт.

2

D138498

LEVER

- control, loader

1шт.

3

129-127

NUT,5/8"-18, G5

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

L78119

PIVOT PIN

SUPPORT - lever pivot

1шт.

8

D38305

BLOCK

- wear

1шт.

9

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

- self-aligning

1шт.

10

A11538

SNAP RING,#50, Ext

Ring, Snap, , pin, small #50, Ext

1шт.

11

D1038223

SPRING

Ring, Snap, 1.438", Int, #143, pin, large

1шт.

12

138-327

PIN,3/16" x 1", Slotted

2шт.

13

L105056

LEVER

- pivot

1шт.

14

L103004

ROD

- loader lift

1шт.

15

D38296

JOINT

BALL JOINT - 3/8"

2шт.

16

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8" - 24 NF, plated

4шт.

17

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - 5/16", rod end

1шт.

18

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

19

L103400

ROD

- loader bucket

1шт.

20

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

2шт.

21

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

22

D138274

VALVE

ASSEMBLY - loader control, two spool, parts list Figure 8-56

1шт.

23

L109751

SEAL

SEAL - control rod

2шт.
