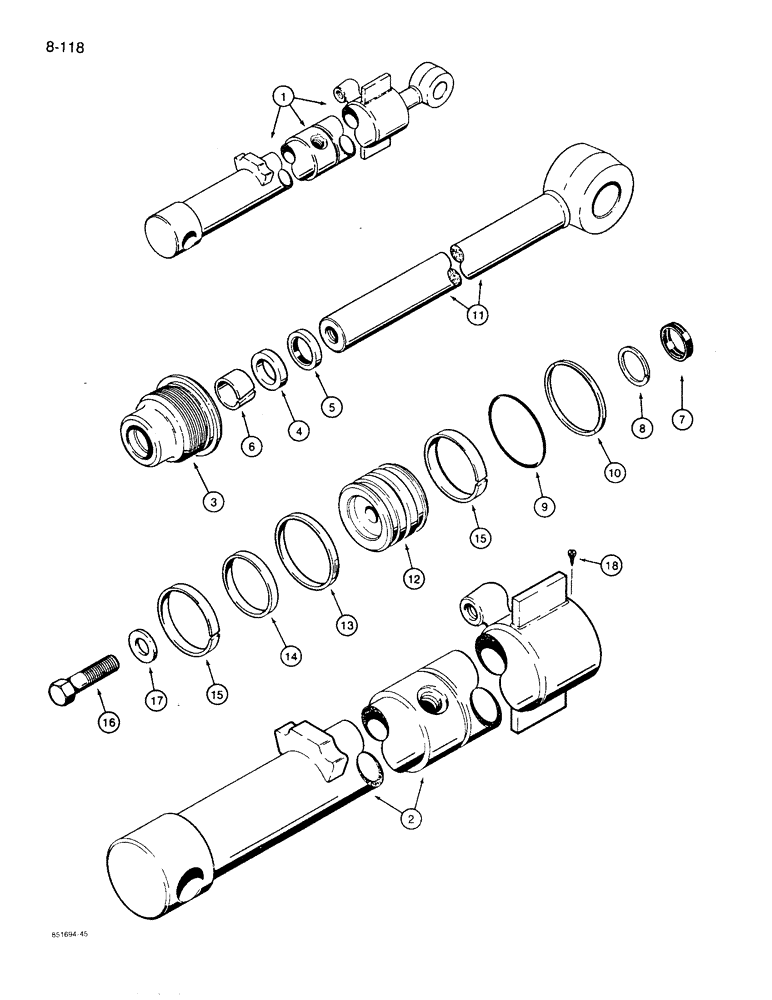

Запчасти Case 780D (8-118) - G103108 BACKHOE DIPPER EXTENSION CYLINDER (08) - HYDRAULICS

1

G103108

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3" (76 mm) ID x 48-1/2" (1232 mm) stroke, dipper extension, if used, Includes: Ref. 2 - 18

1шт.

2

G103137

TUBE,3" DIA x 80.73" L

- cylinder

1шт.

G104222

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G109452.

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of Seal Kit P/N G109452.

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit P/N G109452.

1шт.

7

G100776

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

8

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G109452.

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G109452.

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit P/N G109452.

1шт.

11

G106438

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) O.D.

1шт.

12

G100442

PISTON

- cylinder

1шт.

13

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit P/N G109452.

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of Seal Kit P/N G109452.

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

2шт.

Part of Seal Kit P/N G109452.

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

18

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, slotted, self-tapping, No. 8 - 32 x 3/8 inch

1шт.

G109452

GASKET KIT

KIT - seal, Includes: Ref. 5, 6, 7 (P/N G107921), 8 - 10 and 13 - 15

1шт.
