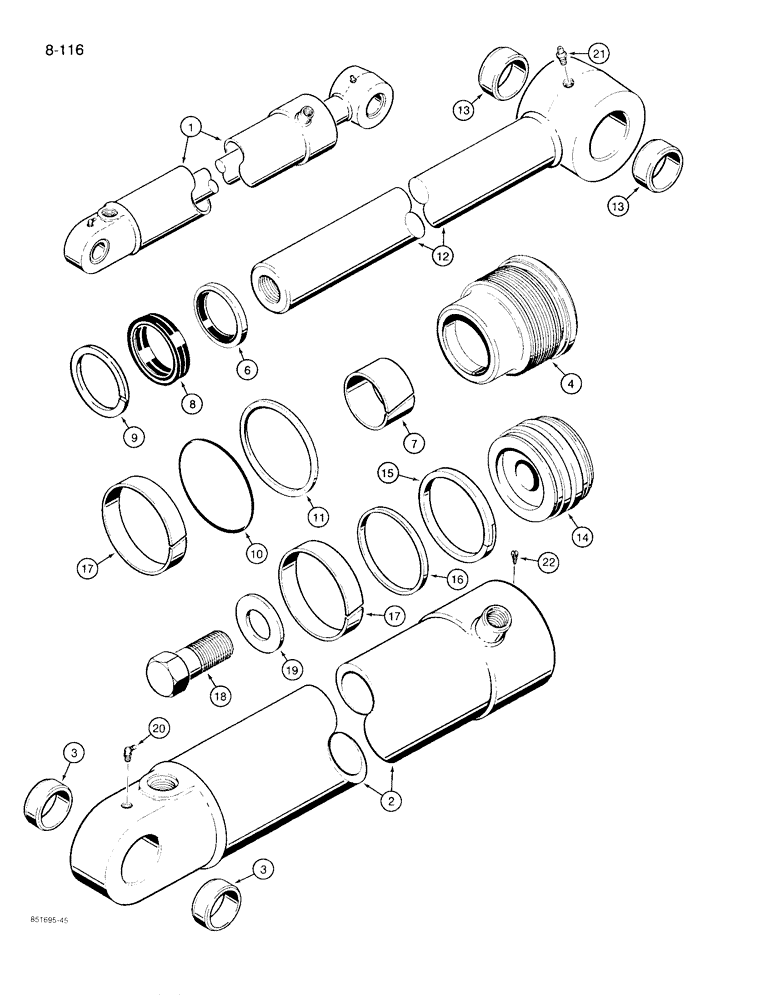

Запчасти Case 780D (8-116) - BACKHOE BUCKET CYLINDER (08) - HYDRAULICS

1

G105857

CYLINDER

ASSEMBLY - 4-1/2" (114 mm) ID x 33" (838 mm) stroke, bucket, Includes: Ref. 2 - 21

1шт.

2

G105858

TUBE,4.5" DIA x 42.44" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

G104304

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G109503.

1шт.

7

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

Part of Seal Kit P/N G109503.

1шт.

8

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit P/N G109503.

1шт.

8

G100780

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

9

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G109503.

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G109503.

1шт.

11

G32284

BACK-UP RING

- backup, gland O-ring

1шт.

Part of Seal Kit P/N G109503.

1шт.

12

G105863

ROD

ASSEMBLY - piston, Includes: Ref. 13

1шт.

13

D52579

BUSHING,57.38mm ID x 69.85mm OD x 28.57mm L

- piston rod

2шт.

14

G102182

PISTON ASSY.

PISTON - cylinder

1шт.

15

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G109503.

1шт.

16

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

RING - backup, piston seal

1шт.

Part of Seal Kit P/N G109503.

1шт.

17

G101996

WEAR RING,4.5" OD x 0.75" Thk

RING - wear, piston

2шт.

Part of Seal Kit P/N G109503.

1шт.

18

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8

1шт.

19

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- hardened

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

22

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, slotted, self-tapping, No. 8 - 32 x 3/8 inch

1шт.

G109503

SEAL

KIT - seal, Includes: Ref. 6, 7, 8 (P/N G109228), 9 - 11 and 15 - 17

1шт.
