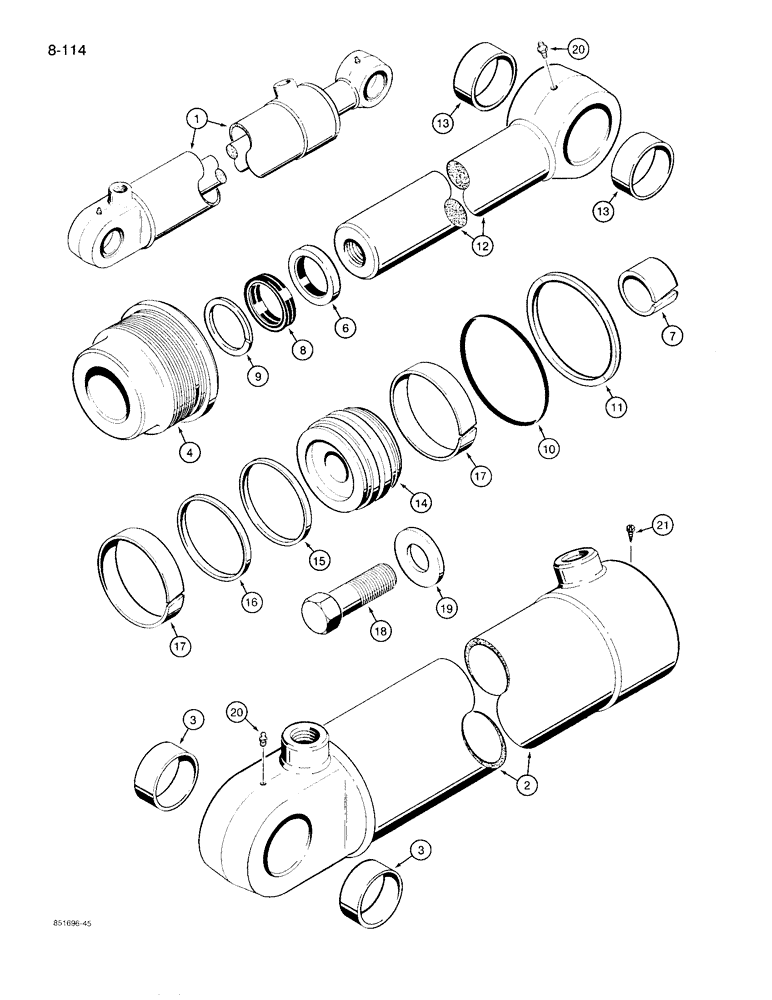

Запчасти Case 780D (8-114) - BACKHOE DIPPER CYLINDER (08) - HYDRAULICS

1

G103050

CYLINDER

ASSEMBLY - 5" (127 mm) ID x 44-15/16" (1141 mm) stroke, dipper, Includes: Ref. 2 - 21

1шт.

2

G103051

TUBE

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

G104320

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G109432.

1шт.

7

G102428

BEARING,2.75mm ID x 69.85mm OD x 37.85 W

BUSHING - center

1шт.

Part of Seal Kit P/N G109432.

1шт.

8

G109053

OIL SEAL

SEAL - U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit P/N G109432.

1шт.

8

G100781

SEAL ASSY.

SEAL - U-cup, piston rod, service option - severe heat or cold

1шт.

9

G107999

SEAL

SEAL - buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G109432.

1шт.

10

39738

O-RING,4.609" ID x 0.139" Width

- gland

1шт.

Part of Seal Kit P/N G109432.

1шт.

11

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit P/N G109432.

1шт.

12

G103056

ROD ASSY.

ROD ASSEMBLY - piston, 2-3/4" (70 mm) O.D., Includes: Ref. 13

1шт.

13

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

14

G103116

PISTON

- cylinder

1шт.

15

G102091

SEAL,128.52mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G109432.

1шт.

16

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

- backup, piston seal

1шт.

Part of Seal Kit P/N G109432.

1шт.

17

G102090

RING,127mm OD, Ext

- wear, piston

2шт.

Part of Seal Kit P/N G109432.

1шт.

18

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- hex head, 1-1/2" - 12 NF x 3-1/2", grade 8

1шт.

19

G104990

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

21

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, slotted, self-tapping, No. 8 - 32 x 3/8 inch

1шт.

G109432

KIT

- seal, Includes: Ref. 6, 7, 8 (P/N G109053), 9 - 11 and 15 - 17

1шт.
