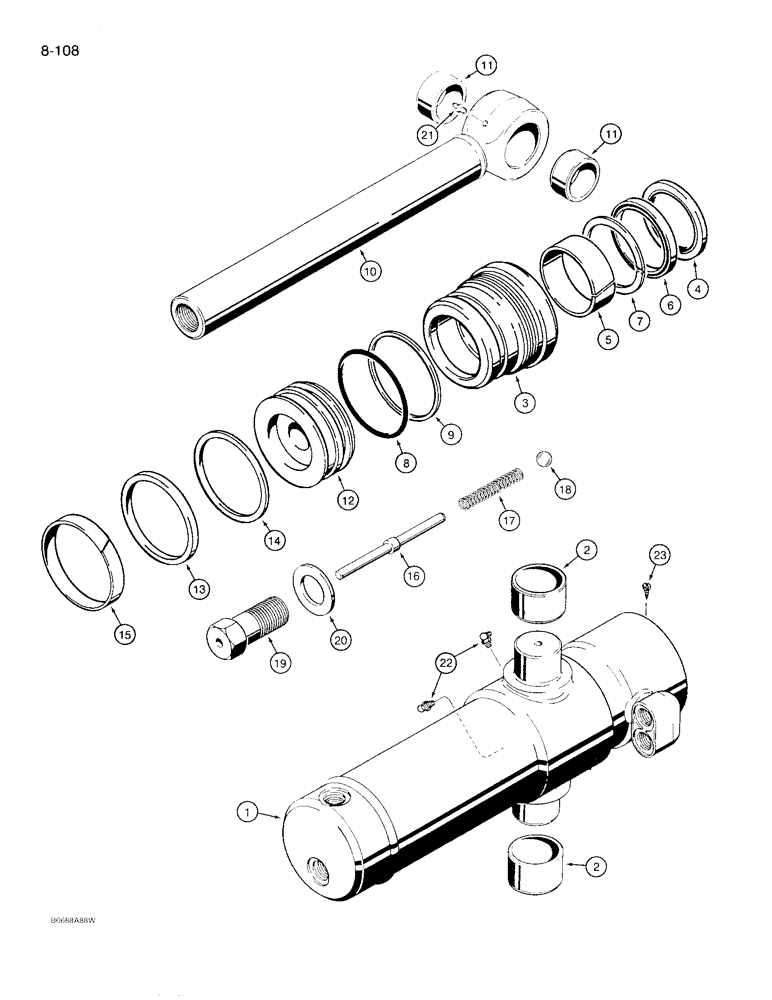

Запчасти Case 780D (8-108) - BACKHOE SWING CYLINDER (08) - HYDRAULICS

1978095C1

CYLINDER

ASSEMBLY - 4-1/2" (114 mm) ID x 14-3/4" (375 mm) stroke, swing, no longer available, order 1978095C3 cylinder, Includes: Ref. 1 - 23

2шт.

1978095C2

CYLINDER

ASSEMBLY - 4-1/2" (114 mm) ID x 14-3/4" (375 mm) stroke, swing, no longer available, order 1978095C3 cylinder, Includes: Ref. 1 - 23

2шт.

1978095C3

CYLINDER

ASSEMBLY - 4-1/2" (114 mm) ID x 14-3/4" (375 mm) stroke, swing, Includes: Ref. 1 - 23

2шт.

1

1978096C1

TUBE

ASSEMBLY - 1978095C1 cylinder, Includes: Ref. 2

1шт.

1

1978096C2

TUBE

ASSEMBLY - 1978095C2 cylinder, Includes: Ref. 2

1шт.

1

1978096C3

HYD TUBE

TUBE ASSEMBLY - 1978095C3 cylinder, Includes: Ref. 2

1шт.

2

G110195

BUSHING

- 1978096C1, 1978096C2 or 1978096C3 tube

2шт.

1978124C1

BEARING

GLAND ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G110669.

1шт.

5

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center, Gland

1шт.

K260197 pin - Replaced by part nbr 109643A1 pin (not a sub). Not required to order when ordering Ref. 15 since the 3 numbers it subs to include this.

1шт.

6

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- U-cup, piston rod, wide

1шт.

Part of Seal Kit P/N G110669.

1шт.

6

G100779

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

7

G109086

RING

SEAL - buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G110669.

1шт.

8

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

Gland -243, 70 Duro, 4.109" ID x .139" Thk

1шт.

Part of Seal Kit P/N G110669.

1шт.

9

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit P/N G110669.

1шт.

10

G110196

ROD ASSY.

ROD ASSEMBLY - piston, 2-1/4" (57 mm) O.D., Includes: Ref. 11

1шт.

11

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

12

G110252

PISTON

- cylinder

1шт.

13

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEAL - piston

1шт.

Part of Seal Kit P/N G110669.

1шт.

14

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

RING - backup, piston seal

1шт.

Part of Seal Kit P/N G110669.

1шт.

15

G101996

WEAR RING,4.5" OD x 0.75" Thk

RING - wear, piston

1шт.

Part of Seal Kit P/N G110669.

1шт.

16

G102245

AXLE PIN

PIN - cushion relief

1шт.

17

D38683

SPRING

- cushion relief

1шт.

18

211-17

BALL,3/4" Dia

- cushion relief spring

1шт.

19

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

- piston and cushion relief

1шт.

20

G32351

WASHER

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

23

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, slotted, self-tapping, No. 8 - 32 x 3/8 inch

1шт.

G110669

SPARE PART SET

KIT - seal, Includes: Ref. 4, 5, 6 (P/N G107924), 7 - 9 and 13 - 15

1шт.
